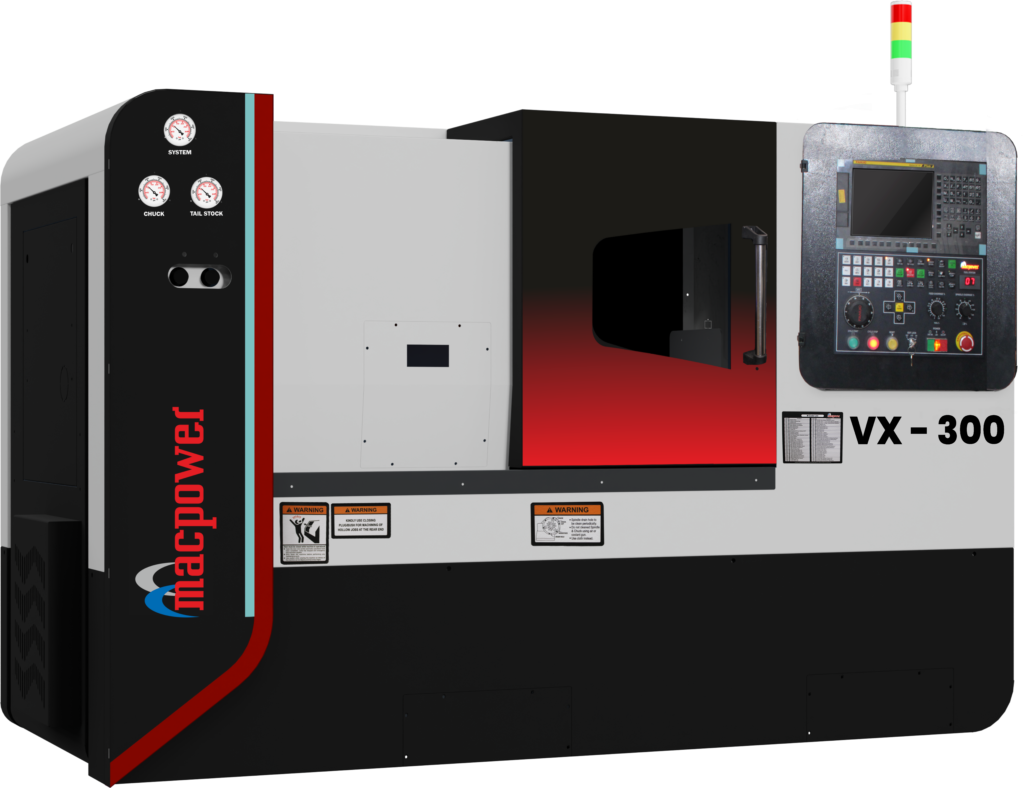

Turning Center
VX Series
Precision-engineered CNC turning centers built for high accuracy, rigid performance, and reliable production across diverse industrial applications.
Turning Center
VX Series
In today’s competitive market, you need robust CNC turning centers with un-compromised performance and specifications to produce world class products quickly accurately and with minimum non productive time.
Overview
VX
Structure & Frame
The rigid bed and step up structure are made out of grade 25 cast iron for more stability. It is ribbed to provide more rigidity and less distortion during cuts and faster production, with virtually no vibration. A totally revamped ergonomic structure and frame helps stabilise different machining operations with requisite precision.
VX
Tailstock
The tailstock consists of a hydraulically operated quill, which moves inside the housing. The quill and body are independently moveable. The tailstock is supported on V and flat guide ways. Programmable quill is provided as a standard feature.
VX
Rear Chip Removal Arrangement
New VX Series design enables it to give wide passage for chip disposal on back side. With such design chips will directly fall down into chip tray and also removing of chip from chip tray without stopping the machining cycle
VX
Carriage Assembly
X and Z Slides are mounted on precise four-circuit linear motion blocks with high load-carrying capacity, designed to support increased acceleration and deceleration rates as well as cutting pressure.
VX
Revamped Guarding
Equipped with the advantage of an ergonomic design. The machine comes with a full guard that enables a clean premise throughout the operation. These feature prevents contamination being spread on to machine slides, switches and other electrical devices.with pressure dials on upper side and small door.
Precise Roller Guideways
Precise Roller Guideways
Precise Roller Guideways
Precise Roller Guideways
Precise Roller Guideways
Standard Accessories
- Roller Guide Ways
- AC Spindle Drive & AC Servo Drive
- Machine with Tail Stock
- Hydraulic Chuck
- Bi-directional Electro Mechanical Turret or Hydraulic Turret
- Hydraulic Unit
- Coolant System
- Centralized Lubrication System
- Turning Tool Blocks
- Boring Bar Blocks
- Patrol Light
- Digital Tool Display
- Foot Switch
Optional Accessories
- Chip Conveyor
- Bar Feeder
- Bar Puller
- Live Tooling
- Stabilizer
- Hydraulic Collet Chuck
- Auto Door
- Oil Skimmer
- Steady Rest
- Tooled Up Solution
- Tool Probe
- Work Probe

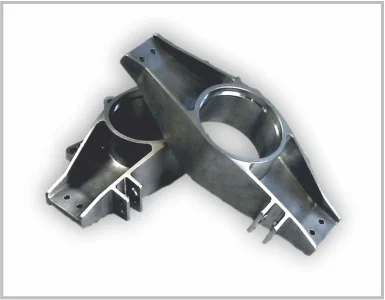

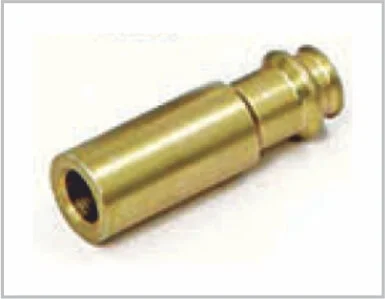

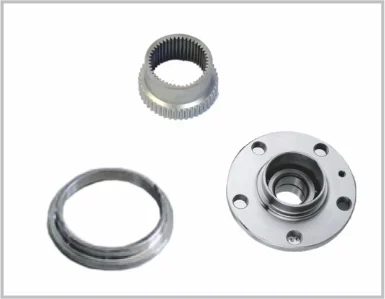

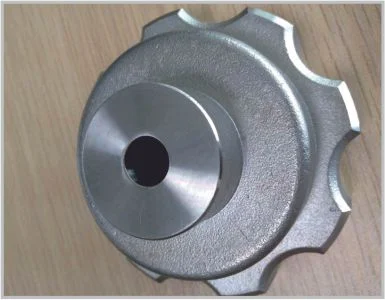

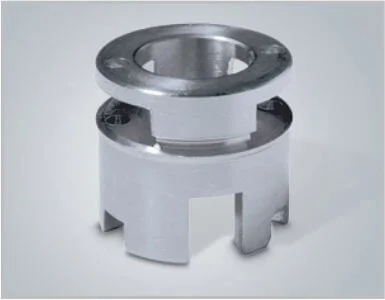

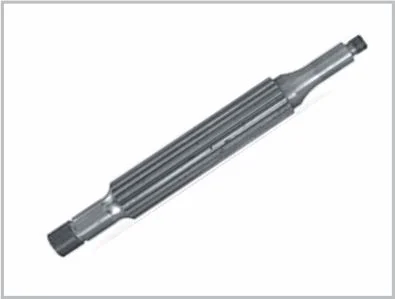

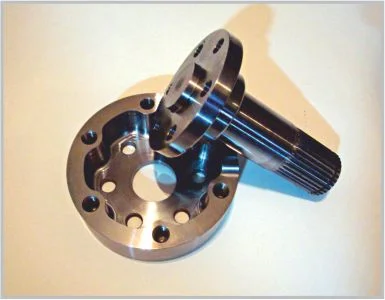

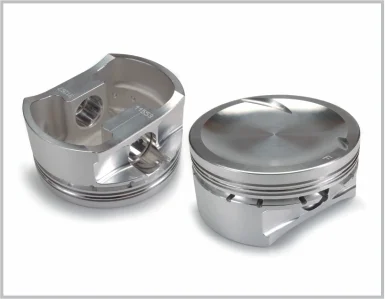

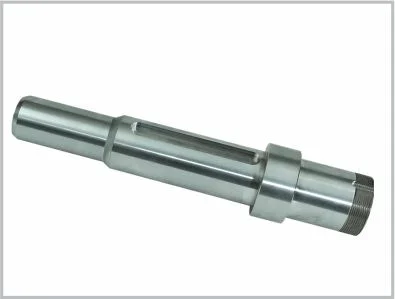

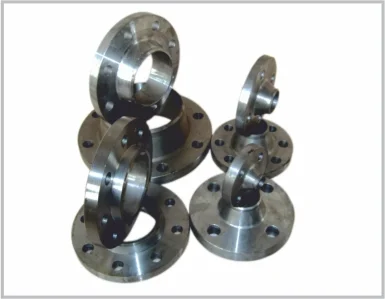

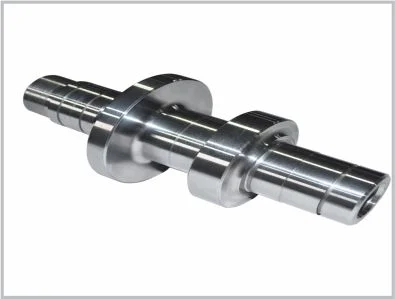

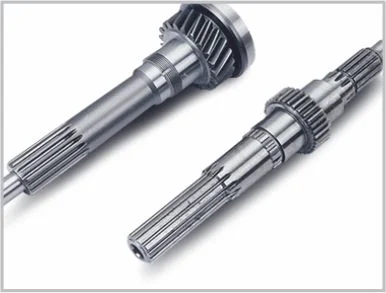

Machine Output
Technical Specifications
Capacity
| DESCRIPTION | UNIT | VX 300 | VX 300 SUPER | VX 400 | VX 400 SUPER | VX 500 PLUS | VX 500 SUPER PLUS | VX 550 | VX 550 SUPER | VX 700 | VX 700 SUPER |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Swing Over Carriage | mm | Ø 280 | Ø 280 | Ø 280 | Ø 280 | Ø 280 | Ø 280 | Ø 280 | Ø 280 | Ø 280 | Ø 280 |
| Maximum Turnin Dia.* | mm | Ø 320 | Ø 320 | Ø 320 | Ø 320 | Ø 350 | Ø 350 | Ø 350 | Ø 350 | Ø 350 | Ø 350 |
| Swing Over Bed | mm | Ø 500 | Ø 500 | Ø 500 | Ø 500 | Ø 500 | Ø 500 | Ø 500 | Ø 500 | Ø 500 | Ø 500 |
| Maximum Turning Length | mm | 325 | 325 | 425 | 425 | 500 | 500 | 550 | 550 | 700 | 700 |
| Distance Between Center | mm | 350 | 350 | 450 | 450 | 520 | 520 | 570 | 570 | 720 | 720 |
Slides
| DESCRIPTION | UNIT | VX 300 | VX 300 SUPER | VX 400 | VX 400 SUPER | VX 500 PLUS | VX 500 SUPER PLUS | VX 550 | VX 550 SUPER | VX 700 | VX 700 SUPER |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Cross (X-axis) Travel | mm | 170 | 170 | 170 | 170 | 185 | 185 | 185 | 185 | 185 | 185 |
| Longitudinal (Z-axis) Travel | mm | 325 | 325 | 425 | 425 | 500 | 500 | 550 | 550 | 700 | 700 |
| Rapid Feed (X axis) | m/mm | 30 | 30 | 30 | 30 | 30 | 24 | 30 | 24 | 24 | 24 |
| Rapid Feed (Z axes) | m/mm | 30 | 30 | 30 | 30 | 30 | 24 | 30 | 24 | 24 | 24 |
Main Spindle
| DESCRIPTION | UNIT | VX 300 | VX 300 SUPER | VX 400 | VX 400 SUPER | VX 500 PLUS | VX 500 SUPER PLUS | VX 550 | VX 550 SUPER | VX 700 | VX 700 SUPER |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Spindle Nose | - | A2-5 | A2-6 | A2-5 | A2-6 | A2-6 | A2-8 | A2-6 | A2-8 | A2-6 | A2-8 |
| Spindle Bore | mm | Ø 54 | Ø 63 | Ø 54 | Ø 63 | Ø 63 | Ø 90 | Ø 63 | Ø 90 | Ø 63 | Ø 90 |
| Max. Bar Capacity | mm | Ø 42 | Ø 51 | Ø 42 | Ø 51 | Ø 75 | Ø 51 | Ø 75 | Ø 51 | Ø 75 | Ø 51 |
| Chuck Size | mm | Ø 165 x 3 Jaw | Ø 200 x 3 Jaw | Ø 200 x 3 Jaw | Ø 200 x 3 Jaw | Ø 200 x 3 Jaw | Ø 250 x 3 Jaw | Ø 200 x 3 Jaw | Ø 250 x 3 Jaw | Ø 200 x 3 Jaw | Ø 250 x 3 Jaw |
| Speed Range | rpm | 50 - 4000 | 50 - 3500 | 50 - 4000 | 50 - 3500 | 50 - 3500 | 50 - 2800 | 50 - 3500 | 50 - 2800 | 50 - 3500 | 50 - 2800 |
| Full Power Range | rpm | 1000 - 3000 | 1000 - 3000 | 1000 - 3000 | 1000 - 3000 | 1000 - 3000 | 750 - 1750 | 1000 - 3000 | 750 - 1750 | 1000 - 3000 | 750 - 1750 |
| Spindle Motor (Continues Rating) | kw | 5.5 / 7.5 | 7.5 / 11 | 5.5 / 7.5 | 7.5 / 11 | 7.5 / 11 | 11 / 15 | 7.5 / 11 | 11 / 15 | 11 / 15 | 7.5 / 11 |
| Spindle Motor (15min. Rating) | kw | 5.5 / 7.5 | 7.5 / 11 | 5.5 / 7.5 | 7.5 / 11 | 7.5 / 11 | 11 / 15 | 7.5 / 11 | 11 / 15 | 11 / 15 | 7.5 / 11 |
Turret
| DESCRIPTION | UNIT | VX 300 | VX 300 SUPER | VX 400 | VX 400 SUPER | VX 500 PLUS | VX 500 SUPER PLUS | VX 550 | VX 550 SUPER | VX 700 | VX 700 SUPER |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Number of Stations | No. | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 |
| Tool Size | mm | 25 x 25 | 25 x 25 | 25 x 25 | 25 x 25 | 25 x 25 | 25 x 25 | 25 x 25 | 25 x 25 | 25 x 25 | 25 x 25 |
| Max. Boring Bar Capacity | mm | ø 40 | ø 40 | ø 40 | ø 40 | ø 40 | ø 40 | ø 40 | ø 40 | ø 40 | ø 40 |
Tail Stock
| DESCRIPTION | UNIT | VX 300 | VX 300 SUPER | VX 400 | VX 400 SUPER | VX 500 PLUS | VX 500 SUPER PLUS | VX 550 | VX 550 SUPER | VX 700 | VX 700 SUPER |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Quill Tapper | - | MT 4 | MT 4 | MT 4 | MT 4 | MT 4 | MT 4 | MT 4 | MT 4 | MT 4 | MT 4 |
| Quill Diameter | mm | Ø 70 | Ø 70 | Ø 70 | Ø 70 | Ø 80 | Ø 80 | Ø 80 | Ø 80 | Ø 80 | Ø 80 |
| Quill Stroke | mm | 80 | 80 | 80 | 80 | 100 | 100 | 100 | 100 | 100 | 100 |
Accuracy
| DESCRIPTION | UNIT | VX 300 | VX 300 SUPER | VX 400 | VX 400 SUPER | VX 500 PLUS | VX 500 SUPER PLUS | VX 550 | VX 550 SUPER | VX 700 | VX 700 SUPER |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Positioning Accuracy | mm | 0.008 | 0.008 | 0.008 | 0.008 | 0.008 | 0.008 | 0.008 | 0.008 | 0.008 | 0.008 |
| Repeatability | mm | 0.007 | 0.007 | 0.007 | 0.007 | 0.007 | 0.007 | 0.007 | 0.007 | 0.007 | 0.007 |
System
| DESCRIPTION | UNIT | VX 300 | VX 300 SUPER | VX 400 | VX 400 SUPER | VX 500 PLUS | VX 500 SUPER PLUS | VX 550 | VX 550 SUPER | VX 700 | VX 700 SUPER |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Fanuc | - | OI TF PLUS | OI TF PLUS | OI TF PLUS | OI TF PLUS | OI TF PLUS | OI TF PLUS | OI TF PLUS | OI TF PLUS | OI TF PLUS | OI TF PLUS |
| Siemens | - | 828 D | 828 D | 828 D | 828 D |
Other Data
| DESCRIPTION | UNIT | VX 300 | VX 300 SUPER | VX 400 | VX 400 SUPER | VX 500 PLUS | VX 500 SUPER PLUS | VX 550 | VX 550 SUPER | VX 700 | VX 700 SUPER |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Weight (Approx.) | kg | 2900 | 3000 | 3000 | 3100 | 3100 | 3200 | 3100 | 3200 | 3400 | 3500 |
| Dimensions (W x D x H) (Approx.) | mm | 2225 x 1830 x 1555 | 2225 x 1830 x 1555 | 2325 x 1830 x 1655 | 2325 x 1830 x 1655 | 2460 x 1830 x 1555 | 2530 x 1830 x 1555 | 2460 x 1830 x 1555 | 2530 x 1830 x 1555 | - | - |
