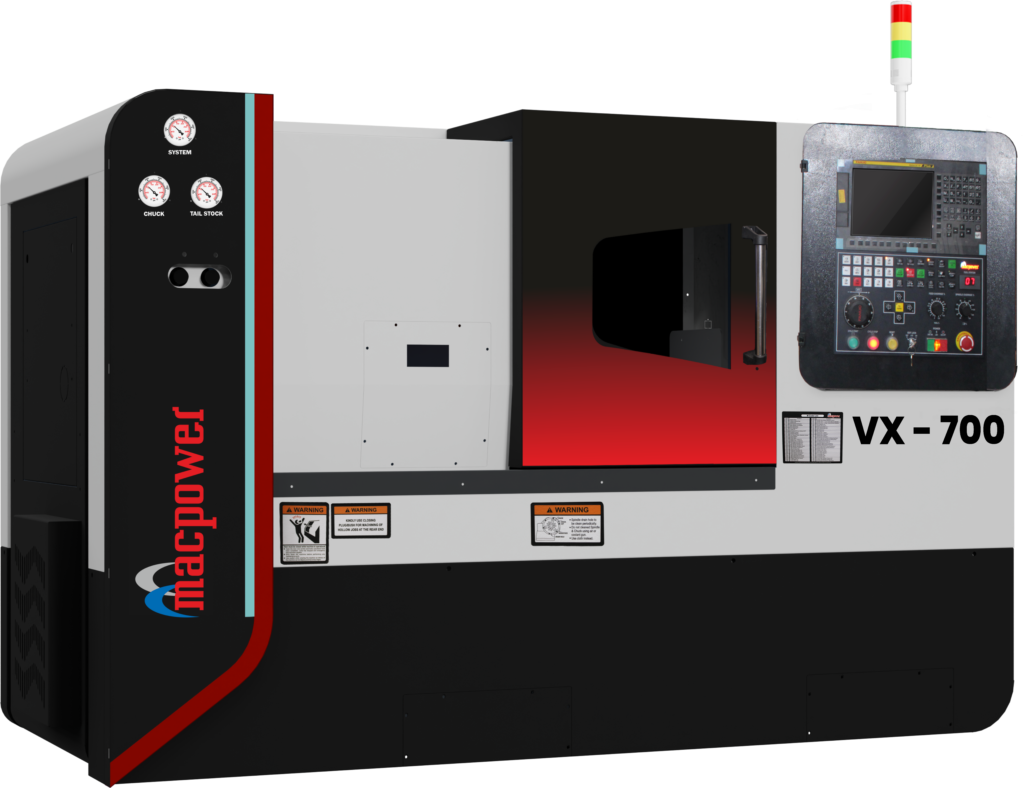

Turning Center
VX 700
The VX 700 is a robust, extended-capacity CNC turning center engineered for precise, stable, and productive machining across demanding turning applications.
Turning Center
VX 700
| SWING OVER CARRIAGE | 280 MM |
|---|---|
| MAX. TURNING DIA | 350 MM |
| MAX. TURNING LENGTH | 700 MM |
| TRAVEL (X / Z) | 185 / 700 MM |
| RAPID FEED (X / Z) | 24 M/MIN |
| CHUCK SIZE | 200x3 MM |
| SPINDLE POWER (FANUC) | 9 / 12 (P) KW |
| SPINDLE BORE | 63 MM |
| SPINDLE NOSE | A2 - 6 |
| WEIGHT (APPROX) | 3400 KG |
Turning Center
VX 700
The VX 700 offers a 350 mm maximum turning diameter, 500 mm swing over bed, and 700 mm maximum turning length, with a 720 mm distance between centers. Its slide configuration provides 185 mm X-axis travel and 700 mm Z-axis travel, supported by rapid feed rates of 24 m/min on both axes.
The machine features an A2-6 spindle nose, 63 mm spindle bore, 51 mm maximum bar capacity, and a 200 mm 3-jaw chuck. Its spindle operates from 50 to 3500 rpm, with a full power range of 1000–3000 rpm and 9/12 kW spindle motor ratings for controlled, reliable turning performance.
An 8-station turret with 25 × 25 mm tool size and 40 mm maximum boring bar capacity supports flexible machining requirements. Positioning accuracy of 0.008 mm and repeatability of 0.007 mm help deliver consistent, precise performance across production cycles.
