Heavy-duty double-column machining centers engineered for large, complex components—delivering exceptional rigidity, powerful cutting performance, and stable precision across demanding production environments.

Double Column Machines

DCM Series

In today’s competitive market, you need robust Double column machine with un-compromised performance and specifications to produce world class products quickly accurately and with minimum non productive time.

DCM 1512

STANDARD

DCM 2112

STANDARD

DCM 2216

STANDARD

DCM 2618

STANDARD

DCM 3216

STANDARD

DCM 3222

STANDARD

DCM 4222

STANDARD

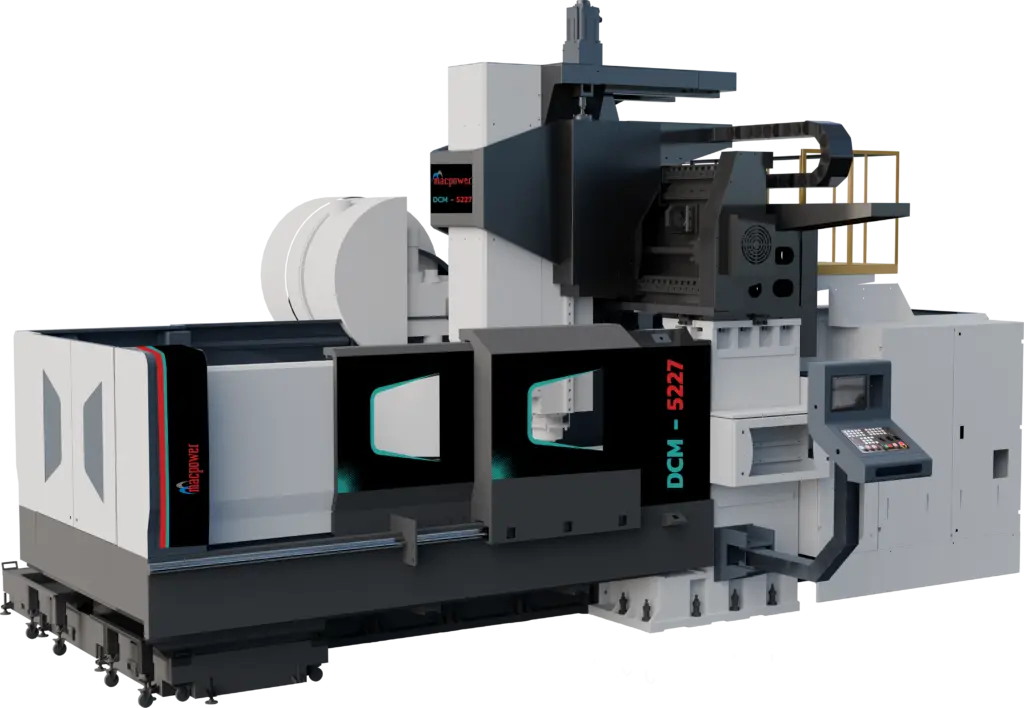

DCM 5227

STANDARD

Download Catalogue

Overview

DCM

Structure & Frame

The rigid bed and step up structure are made out of grade 25 cast iron for more stability. It is ribbed to provide more rigidity and less distortion during cuts and faster production, with virtually no vibration. A totally revamped ergonomic structure and frame helps stabilise different machining operations with requisite precision.

Standard Accessories

  • ROLLER GUIDEWAYS
  • WORK LIGHT
  • HAND WHEEL
  • LEVELING PAD
  • RING COOLANT
  • AIR GUN
  • CENTRALIZED LUBRICATION SYSTEM
  • PULL STUD
  • DRY AIR CUTTING
  • COOLANT GUN
  • SCREW CONVEYOR TWIN TYPE

Optional Accessories

  • AUTO DOOR
  • LINEAR SCALE
  • STABILIZER
  • FLUSH COOLANT
  • COOLANT THROUGH SPINDLE
  • ROTARY TABLE
  • ROTARY TILTING TABLE
  • GEAR BOX
  • HIGHER RPM SPINDLE
  • SPINDLE CHILLER
  • TOOL PROBE
  • WORK PROBE
  • TOOLED UP SOLUTIONS
  • CHIP CONVEYOR
  • 90 MILLING HEAD (AUTOMATIC & MANUAL)
  • AC SWIVELING HEAD (AUTOMATIC & MANUAL)

Technical Specifications

Capacity

AXIS CAPACITY UNIT DCM 1512 DCM 2112 DCM 2216 DCM 3216 DCM 3222 DCM 4222
Travel X mm 1500 2100 2200 3200 3200 4200
Travel Y mm 1000 1200 1600 1600 2760 2760
Travel Z mm 750 7501150 800 (1000) 800 (1000) 800 (1000) 800 (1000)
Distance Between Column mm 1150 1350 1700 1700 2500 2500
Rapid X/Y/Z m/min. 20/20/20 20/20/20 20/20/20 15/20/15 15/15/15 15/15/15
Distance Table - Spindle Face mm 150 - 900 150 - 900 200 - 1000 200 - 1000 200 - 1000 200 - 1000

TABLE

AXIS CAPACITY UNIT DCM 1512 DCM 2112 DCM 2216 DCM 3216 DCM 3222 DCM 4222
Size mm 1600 x 1000 2200 x 1200 2200X1300 3000X1300 3000X2000 3500X2000
T Slot No - 7 7 9 9 12 12
T Slot CD mm 125 160 125 125 160 160
T Slot Width mm 22 22 18 18 22 22
Max. Safe Load on Table Kg 2200 4000 6000 8000 10000 10000
Distance Table - Spindle Face mm - - 200 - 1000 200 - 1000 200 - 1000 200 - 1000

Spindle

AXIS CAPACITY UNIT DCM 1512 DCM 2112 DCM 2216 DCM 3216 DCM 3222 DCM 4222
Taper - BT-40 / BT-50 BT-40 / BT-50 BT - 50 BT - 50 BT - 50 BT - 50
RPM - 8000 / 6000 8000 / 6000 80 - 6000 80 - 6000 80 - 6000 80 - 6000
Cutting Feed Rate mm/min. 0 - 10000 0 - 10000 1 - 10000 1 - 10000 1 - 10000 1 - 10000
Spindle Motor - Fanuc Kw 11 11 18.5 / 22 18.5 / 22 18.5 / 22 18.5 / 22
Spindle Motor - Siemens Kw 15 15 21.5 / 32.3 21.5 / 32.3 21.5 / 32.3 21.5 / 32.3

Automatic Tool Charger

AXIS CAPACITY UNIT DCM 1512 DCM 2112 DCM 2216 DCM 3216 DCM 3222 DCM 4222
No. of Tools (Std/Opt) - Pragati Pragati24/20 (30/40) 24 (30/40) 24 (30/40) 24 (30/40)
Max. Tool Dia. (All pocket full) mm 24/20 (30/40) 24/20 (30/40) 125 125 125 125
Max. Tool Dia. (Adj. pocket empty) mm 250/400 250/400125/200 220 220 220 220
Tool Length Max. Kw 125/200 125/200 400 400 400 400
Tool Weight Max. Kg 250/400 250/400 20 20 20 20
Tool Change Time (Tool to Tool) Kg - - - - - -

ACCURACY

AXIS CAPACITY UNIT DCM 1512 DCM 2112 DCM 2216 DCM 3216 DCM 3222 DCM 4222
Positional Accuracy mm 0.020 0.020 0.020 0.020 0.020 0.020
Repeatability mm 0.008 0.008 0.008 0.008 0.008 0.008

CHIP REMOVAL

AXIS CAPACITY UNIT DCM 1512 DCM 2112 DCM 2216 DCM 3216 DCM 3222 DCM 4222
Chip Removal - Screw Screw Screw Conveyor + Chip Tray Screw Conveyor + Chip Tray Screw Conveyor + Chip Tray Screw Conveyor + Chip Tray
Machine Weight Kg 14000 16500 25400 27350 33900 35900

System

AXIS CAPACITY UNIT DCM 1512 DCM 2112 DCM 2216 DCM 3216 DCM 3222 DCM 4222
Fanuc - Oi MF Plus Oi MF Plus Oi MF Plus Oi MF Plus Oi MF Plus Oi MF Plus
Siemens - 828D 828D 828D 828D 828D 828D
Mitsubishi - M80V M80V M80V M80V M80V M80V
