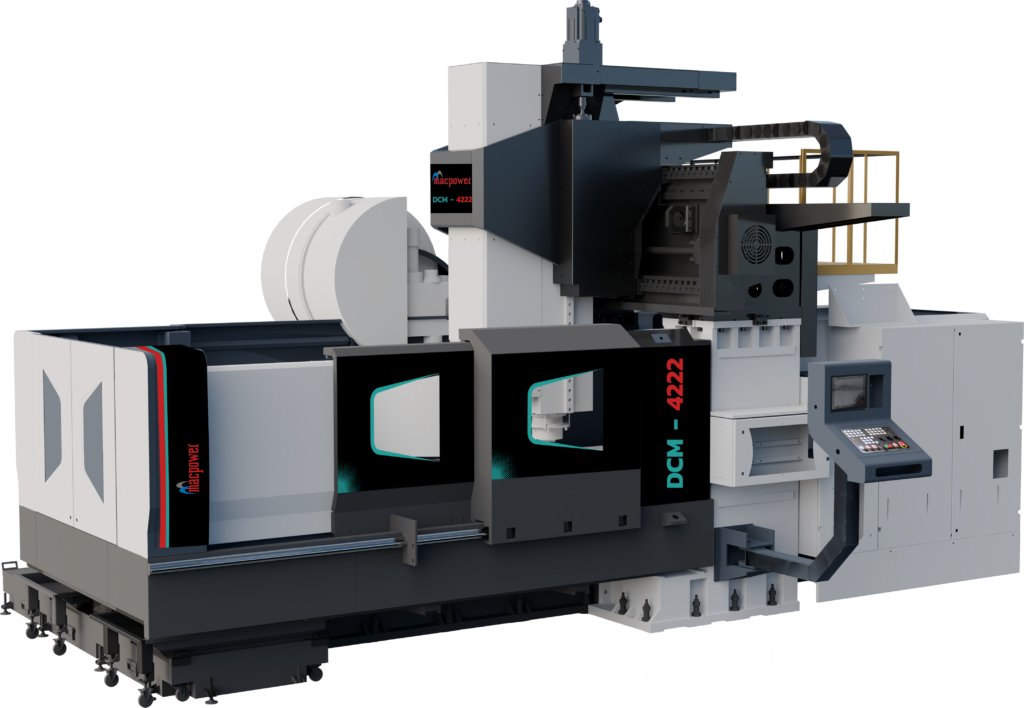

DCM 4222
An extended double column machining center with greater longitudinal reach, substantial table support and robust spindle capability for oversized component machining applications.
DOUBLE COLUMN MACHINE
DCM 4222
| TABLE SIZE (CLAMPING AREA) | 3500 x 2000 MM |
|---|---|
| AXIS STROKE (X / Y / Z) | 4200 / 2760 / 800 (1000) MM |
| RAPID (X/Y/Z ) | 15/15/15 M/MIN |
| LOAD CAPACITY | 10000 KG |
| SPINDLE | BT - 50 - |
| RATED POWER (FANUC) | 18.5 / 22 / 30 KW |
| WEIGHT (APPROX) | 35900 KG |
| DIMENSIONS (APPROX) (WxLxH) | - MM |
DOUBLE COLUMN MACHINE
DCM 4222
The DCM 4222 is built for machining oversized components with exceptional stability and precision. It features 4200 mm X-axis travel, 2760 mm Y-axis travel, and 800 mm Z-axis travel, with an optional 1000 mm Z-axis configuration. A 2500 mm distance between columns, spacious 3500 × 2000 mm table, and 10,000 kg table load capacity provide the capacity required for demanding heavy-duty machining operations.
Powered by a BT-50 spindle operating from 80 to 6000 RPM, the DCM 4222 delivers cutting feed rates of up to 10,000 mm/min for efficient material removal. It is available with Fanuc, Siemens, and Mitsubishi control systems and includes a standard 20-tool automatic tool changer, expandable to 24, 30, or 40 tools, ensuring smooth and productive machining.
Designed for long-term accuracy and dependable performance, the DCM 4222 achieves 0.025 mm positional accuracy and 0.020 mm repeatability. A screw conveyor with chip tray provides efficient chip evacuation, while its robust 35,900 kg construction ensures maximum rigidity and stability for high-precision industrial manufacturing.
