VERTICAL MACHINING CENTER

Vibrant Series

Our new generation Vertical Machining Centers are incorporate a wide range of enhancements and available with a myriad of options to choose from. The modular machine portfolio and sophisticated engineering knowledge that enables us to deliver optimized solutions with optimal performance that make Macpower VMCs better than ever before.

Vibrant 400

STANDARD

Vibrant 500

STANDARD

Vibrant 600

STANDARD

Vibrant 700

STANDARD

Vibrant 800

STANDARD

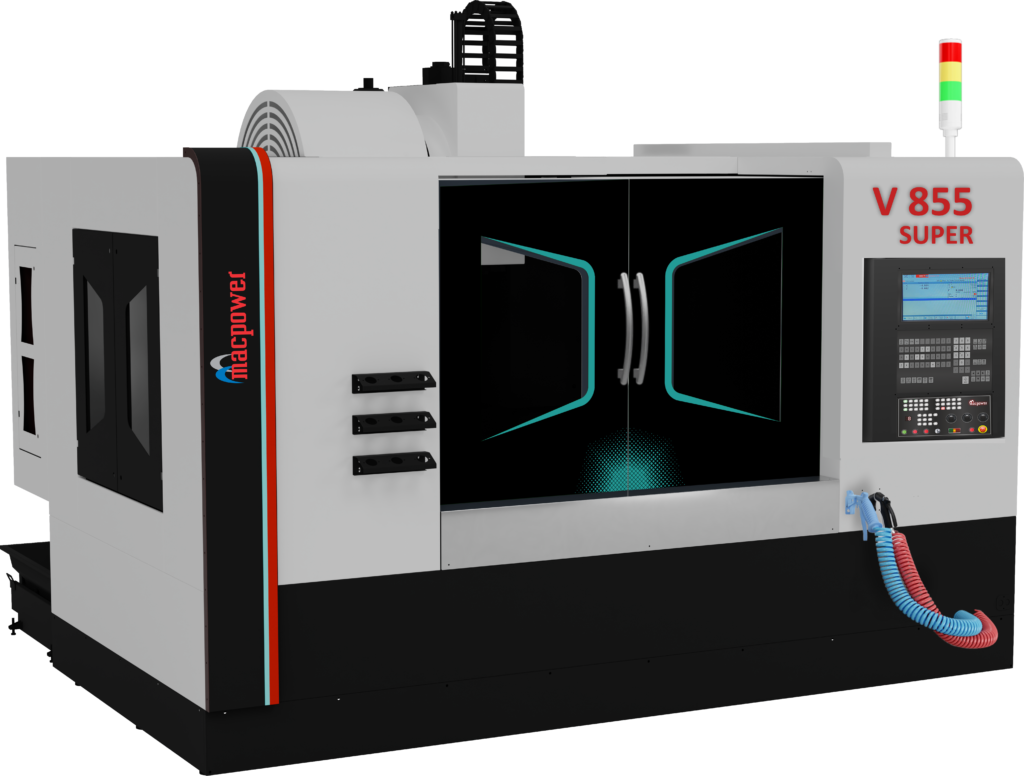

Vibrant 855

Super

Vibrant 900

STANDARD

Vibrant 1055

STANDARD

Vibrant 1066

STANDARD

Vibrant 1366

STANDARD

Vibrant 1166

STANDARD

Download Catalogue

Overview

VB

RIGID Structure & Frame

Single piece monoblock structure is made out of grade 25 cast iron for more stability. It is heavily ribbed to provide more rigidity and less distortion during heavy cuts and faster production, with virtually no vibration. Structure also facilitates easy chip disposal. Also the footprint has been reduced to save valuable space at customer’s end.

Standard Accessories

  • Roller Guide Ways
  • 24 Tool ACT
  • Work Light
  • Hand Weel
  • Leveling PAD
  • Ring Coolant
  • Patrol Light
  • Air Gun
  • Centralized Lubrication System
  • Pull Stud
  • Dry Air Cutting

Optional Accessories

  • Coolant Gun
  • Auto Door
  • Chip Conveyor
  • Linear Scale
  • Stabilizer
  • Flush Coolant
  • Coolant Through Spindle
  • 30 Tools ATC
  • Tooled Up Solutions
  • Rotary Table
  • Rotary Tilting Table
  • Gear Box
  • Higher RPM Spindles
  • Spindle Chiller
  • Indexer
  • Tool Probe
  • Dry Air
  • Vertical Axis Pull Up During Power Failure

Machine Output

V-500-COMPONENT-IMG02-1
V-500-COMPONENT-IMG01-1
V-1166-COMPONENT-IMG04-1
V-1166-COMPONENT-IMG03-1
V-700-COMPONENT-IMG03-1
V-700-COMPONENT-IMG02-1
V-700-COMPONENT-IMG01
V-700-COMPONENT-IMG04-1
V-500-COMPONENT-IMG04-1
V-500-COMPONENT-IMG03-1

Technical Specifications

Capacity

DESCRIPTION UNIT Vibrant 400 Vibrant 500 Vibrant 600 Vibrant 700 Vibrant 800 Vibrant 900 Vibrant 855 Super VIBRANT 1055 VIBRANT 1066 Vibrant 1166 Vibrant 1366 VIBRANT 1577
X Axis Travel mm 410 525 600 700 800 900 850 1050 1020 1100 1310 1510
Y Axis Travel mm 300 500 500 500 550 550 510 510 610 650 650 710
Z Axis Travel mm 300 500 500 500 550 550 510 510 610 650 650 710
Rapid Feed Rates X/Y/Z Axis m/min 30/30/30 30/30/30 30/30/30 30/30/30 30/30/30 30/30/30 30/30/30 24/24/24 30/30/24 30/30/24 24/24/20 24/24/20
Distance From Table Top To Spindle Face mm 100-400 100-600 100-600 100-600 100-650 100-650 100-610 100-610 140-750 140-790 140-790 140-850

Slides

DESCRIPTION UNIT Vibrant 400 Vibrant 500 Vibrant 600 Vibrant 700 Vibrant 800 Vibrant 900 Vibrant 855 Super VIBRANT 1055 VIBRANT 1066 Vibrant 1166 Vibrant 1366 VIBRANT 1577
Table Size (Clamping Area) mm 300X600 450X650 500X800 500X900 500X1000 500X1100 500X1050 500x1250 610x1120 600X1300 650X1450 700 X 1650
No./Width/VD of T-Slots mm 2/14/100 3/18/125 4/18/100 4/18/100 4/18/100 4/18/100 4/18/100 5/18/100 5/18/100 5/18/100 5/18/100 5/18/125
Max Safe Load on Table KG 250 500 500 550 600 900 800 1000 1200 1100 1300 1500

Main Spindle

DESCRIPTION UNIT Vibrant 400 Vibrant 500 Vibrant 600 Vibrant 700 Vibrant 800 Vibrant 900 Vibrant 855 Super VIBRANT 1055 VIBRANT 1066 Vibrant 1166 Vibrant 1366 Vibrant 1577
Taper - BT40 BT40 BT40 BT40 BT40 BT40 BT40 BT 40 / BT 50 BT 40 / BT 50 BT50 BT50 BT 40/BT 50
Speed RPM 80-8000 80-8000 80-8000 80-8000 80-8000 80-8000 80-8000 80-8000 80-8000/60-6000 80-8000/60-6000 80-8000/60-6000 80-8000/60-6000
Cutting Feed Rate mm/min 1-10000 1-10000 1-10000 1-10000 1-10000 1-10000 1-10000 1-10000 1-10000 1-10000 1-10000 1-10000
Rated Power (Fanuc) KW 5.5/7.5 5.5/7.5 5.5/7.5 5.5/7.5 7.5/11 7.5/11 7.5/11 7.5/11 11/15 11/15 11/15 11/15

Auto Tool Changer

DESCRIPTION UNIT Vibrant 400 Vibrant 500 Vibrant 600 Vibrant 700 Vibrant 800 Vibrant 900 Vibrant 855 Super Vibrant 1055 Vibrant 1066 Vibrant 1166 Vibrant 1366 Vibrant 1577
Type - Twin Arm Twin Arm Twin Arm Twin Arm Twin Arm Twin Arm Twin Arm Twin Arm Twin Arm Twin Arm Twin Arm Twin Arm
No. of Tools - 20 24 24 24 24 24 24 24 24/20 24/20 24/20 24/20
Tool Selection - RANDOM RANDOM RANDOM RANDOM RANDOM RANDOM RANDOM RANDOM RANDOM RANDOM RANDOM RANDOM80/150
Max. Tool Dia. (Pocket Full Empty) mm 80/150 80/150 80/150 80/150 80/150 80/150 80/150 80/150 80/150, 125/200 80/150,125/200 80/150,125/200 80/150, 125/200
Tool Length mm 300 300 300 300 300 300 300 300 300/400 300/400 300/400 300/400
Tool Weight Kg 7 7 7 7 7 7 7 7 7/20 7/20 7/20 7/20

Accuracy

DESCRIPTION UNIT Vibrant 400 Vibrant 500 Vibrant 600 Vibrant 700 Vibrant 800 Vibrant 900 Vibrant 855 Super Vibrant 1055 Vibrant 1066 Vibrant 1166 Vibrant 1366 Vibrant 1577
Positioning mm 0.01 0.01 0.01 0.01 0.01 0.01 0.01 0.01 0.01 0.01 0.01 0.01
Repeatability mm 0.007 0.007 0.007 0.007 0.007 0.007 0.007 0.007 0.007 0.007 0.007 0.007

Installation Data

DESCRIPTION UNIT Vibrant 400 Vibrant 500 Vibrant 600 Vibrant 700 Vibrant 800 Vibrant 900 Vibrant 855 Super Vibrant 1055 Vibrant 1066 Vibrant 1166 Vibrant 1366 Vibrant 1577
Pneumatic Supply Bar 6 6 6 6 6 6 6 6 6 6 6 6
Machine Weight (Approx) Kg 3150 4060 4360 4400 4800 5040 5500 6200 - 7170/(7860) 7405/8095 10000/10500
Total Connected Load KVA 16 16 16 16 19 19 19 25 25 25 26 26
Power Supply - AC 440 V, 50HZ, 3 Ph. AC 440 V, 50HZ, 3 Ph. AC 440 V, 50HZ, 3 Ph. AC 440 V, 50HZ, 3 Ph. AC 440 V, 50HZ, 3 Ph. AC 440 V, 50HZ, 3 Ph. AC 440 V, 50HZ, 3 Ph. AC 440 V, 50HZ, 3PH. AC 440 V, 50HZ, 3PH. AC 440 V, 50HZ, 3 Ph. AC 440 V, 50HZ, 3 Ph. AC 440 V, 50HZ, 3PH.
Machine Dimensions (WSDSH) (Approx) mm 1911 X 2618 X 2500 2332 X 2845 X 2890 2332 X 2845 X 2890 2407 X 2845 X 2890 2602 X 2842 X 2878 2677 X 2842 X 2878 2570 X 3168 X 3057 2800x3170x3060 - 2990 X 2570 X 3290(BT 40) 2990 X 3380 X 3375(BT 50) 3590 X 2570 X 3320(BT 40) 3590 X 3380 X 3405(BT 50) 3820x3357x3600 (BT-40)3820x3357x3685 (BT-50)

System

DESCRIPTION UNIT Vibrant 400 Vibrant 500 Vibrant 600 Vibrant 700 Vibrant 800 Vibrant 900 Vibrant 855 Super Vibrant 1055 Vibrant 1066 Vibrant 1166 Vibrant 1366 Vibrant 1577
Fanuc - 0I MF PLUS 0I MF PLUS 0I MF PLUS 0I MF PLUS 0I MF PLUS 0I MF PLUS 0I MF PLUS 0I MF PLUS MILL 0I MF PLUS 0I MF PLUS 0I MF PLUS 0I MF PLUS
Siemens Siemens - 808 D 808 D 828 D 828 D 808 D 808 D 828 D 828 D 808 D 808 D 828 D 828 D
Mitsubishi - M 80 V M 80 V M 80 V M 80 V M 80 V M 80 V M 80 V M 80 V M 80 V M 80 V M 80 V M 80 V
