VMC Machine
Vibrant 900

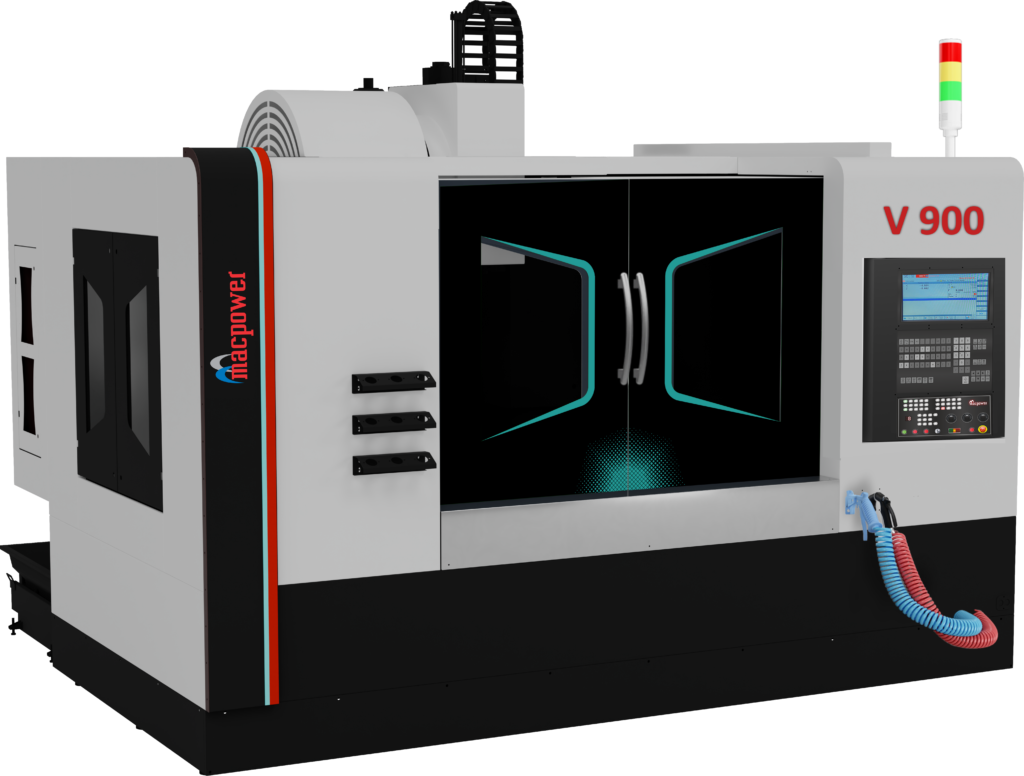

The Vibrant 900 is a heavy-duty, high-capacity vertical machining centre designed for precise, stable, and continuous production.
VMC Machine
Vibrant 900
| TABLE SIZE (CLAMPING AREA) | 500x1100 MM |
|---|---|
| AXIS STROKE (X / Y / Z) | 900 / 550 / 550 MM |
| RAPID X/Y/Z AXIS | 30/30/30 M/MIN |
| LOAD CAPACITY | 900 KG |
| SPINDLE | BT - 40 - |
| RATED POWER (FANUC) | 7.5 / 11 KW |
| WEIGHT (APPROX) | 5040 KG |
| DIMENSIONS (APPROX) (WXDXH) | 2677x2842x2878 MM |
VMC Machine
Vibrant 900
The machine is equipped with a BT40 spindle operating from 80 to 8,000 rpm, with a cutting feed rate of up to 10,000 mm/min. Rated spindle power options of 7.5 kW and 11 kW provide strong, controlled performance for demanding cutting applications. A twin-arm automatic tool changer with 24 tools supports quick, reliable tool changes, while random tool selection helps reduce idle time and improve production efficiency.
Engineered for accurate, repeatable machining, the Vibrant 900 delivers positioning accuracy of 0.01 mm and repeatability of 0.007 mm. Its rigid, well-balanced construction supports low vibration, consistent surface finish, and dependable dimensional control during prolonged machining cycles.
With approximate dimensions of 2677 × 2842 × 2878 mm and a machine weight of around 5040 kg, the Vibrant 900 combines an extended machining envelope with strong structural stability. It is compatible with Fanuc, Siemens, and Mitsubishi control systems, allowing flexible, straightforward integration into varied industrial manufacturing environments.
