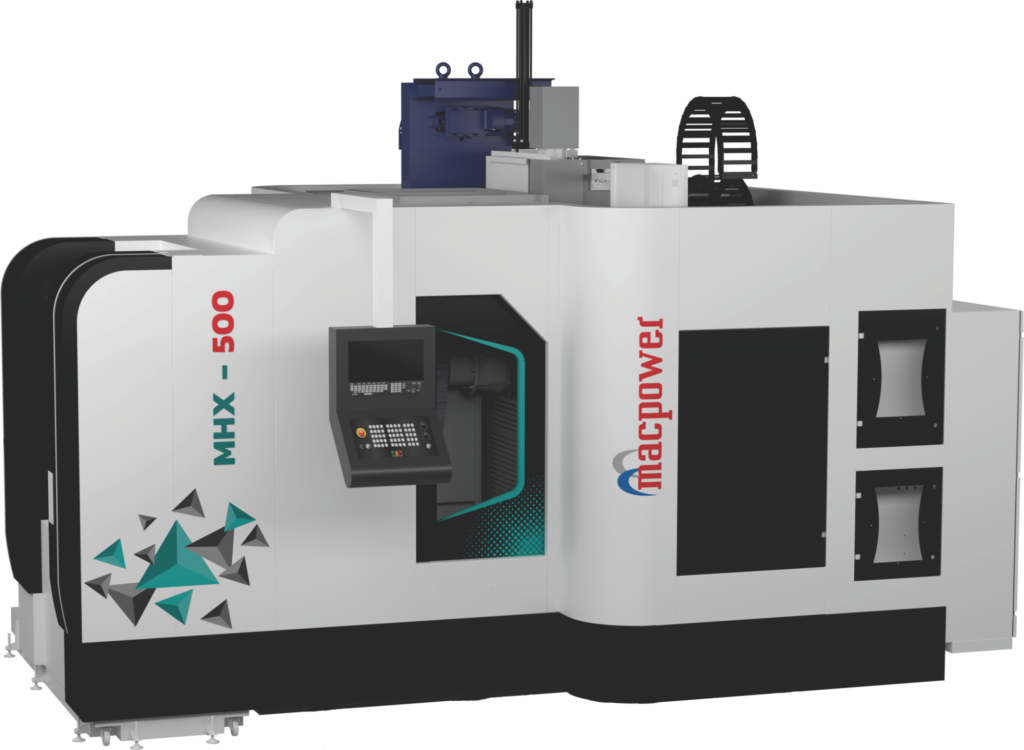

Horizontal Machining Center
HMC Series
High-performance horizontal machining centers engineered for heavy-duty precision, faster cycle times, and consistent productivity across demanding industrial applications.
HORIZONTAL MACHINING CENTER
HMC Series
In today’s competitive market, you need robust CNC turning centers with un-compromised performance and specifications to produce world class products quickly accurately and with minimum non productive time.
Overview
HMC
Structure & Frame
Single piece monoblock structure is made out of grade 25 cast iron for more stability. It is heavily ribbed to provide more rigidity and less distortion during heavy cuts and faster production, with virtually no vibration. Structure also facilitates easy chip disposal. Also the footprint has been reduced to save valuable space at customer’s end.
Standard Accessories
- Roller type guid-ways for all linear axes
- Precise ball-screws for all linear axes
- Hydraulic counter-balance for the vertical axis
- Automatic centralised lubrication system
- Hydraulic Power Pack
- Air blast for spindle taper cleaning
- AIR GUN
- Tool clamping through disc springs & de-clamp by Cylinder
- Basic coolant system with chip tray
- SS Lamella Bellow covers on X and Y axis
- SS Telescopic on Z Axis
- AC unit for electrical cabinet
- Hydraulic power pack
- Coolant gun
- Air gun
- Fanuc 0i MF with B-series motors & drives
- Laser Calibration
- Spindle taper -BT 50
- Belt- driven spindle
- Tool magazine -30 tools
- Absolute encoders for all axes
- Backlash & pitch error compensation
- Rigid tapping & retract function
- Simultaneous interpolation upto 4 axes
- Linear, circular & helical interpolation
- Polar co-ordinate programming
- Tool life management
- Machine alarm diagnostics
- Overhead shower-wash
- Energy saving function
- 3-tier signal tower lamp
- Machine lamp
- Hydraulic Automatic pallet changer (rotary type)
- MPG Unit
Optional Accessories
- Hinge Belt type Chip conveyor with chip trolley
- Scraper type Chip conveyor with chip trolley
- High pressure coolant thru spindle system (20 bar) with filtration system (20 micron)
- Tool magazine capacity of 40 tools & 60 tools
- Linear scales
- Thermal compensation sensors for linear axes
- Continuous rotary table (0.001 deg. x 360°)
- Tool probe & Job Probe
- Chiller
- Auto Door
- Mist collector
- Machine colour as per customer requirement
- Front gauge panel
- Hydraulic connections for fixture through rotary
- Distributor (top side)
- Oil Skimmer
- High Torque Gearbox
- Tool Breakage Sensor
- Tool Tip Air Nozzle for Dry Cutting
- Fully Tooled up Solutions to Meet Customers Needs
Machine Output
Technical Specifications
Capacity
| DESCRIPTION | UNIT | MHX-400 | MHX-500 | MHX-630 |
|---|---|---|---|---|
| Travel X | mm | 600 | 800 | 1000 |
| Travel Y | mm | 600 | 700 | 800 |
| Travel Z | mm | 600 | 800 | 850 |
| Rapid X/Y/Z | m/min. | 36(40) | 30(40) | 30(40) |
Table
| DESCRIPTION | UNIT | MHX-400 | MHX-500 | MHX-630 |
|---|---|---|---|---|
| Size | mm | 400x400 | 500x500 | 630x630 |
| Index Resolution | Deg. | 360x0.001(1) | 360x0.001(1) | 360x0.001(1) |
| Max. Job Dia. X Height | - | Ø 600x700 | Ø 700x800 | Ø 850x1000 |
| T Slot | mm | 18 | 18 | 18 |
| Max. Safe Load on Table | Kg | 350 | 500 | 1000 |
Main Spindle
| DESCRIPTION | UNIT | MHX-400 | MHX-500 | MHX-630 |
|---|---|---|---|---|
| Taper | - | BT-40 (BT-50) | BT-50 | BT-50 |
| Speed | RPM | 80 - 8000 (60 - 6000) | 60 - 6000 | 60 - 6000 |
| Cutting Feed Rate | mm/min | 1-10000 | 1-10000 | 1-10000 |
| Spindle Motor Continuous Rating | kW | 11 | 15 | 15 |
| Spindle Motor 15 min. Rating | kW | 15 | 18.5(P) | 18.5(P) |
Automatic Tool Changer
| AUTOMATIC TOOL CHANGER | UNIT | MHX-400 | MHX-500 | MHX-630 |
|---|---|---|---|---|
| ATC Make | - | Pragati | Pragati | Pragati |
| No. of Tools (Std/Opt) | - | 24(30) | 30(40) | 30(40) |
| Max. Tool Dia. (All pocket full) | mm | 80 | 125 | 125 |
| Max. Tool Dia. (Adj. pocket empty) | mm | 125 | 225 | 225 |
| Tool Length Max. | mm | 250 | 400 | 400 |
| Tool Weight Max. | Kg. | 7 | 20 | 20 |
Automatic Pallet Changer
| AUTOMATIC PALLET CHANGER | UNIT | MHX-400 | MHX-500 | MHX-630 |
|---|---|---|---|---|
| Types Of APC | - | Rotary | Rotary | Rotary |
Accuracy
| DESCRIPTION | UNIT | MHX-400 | MHX-500 | MHX-630 |
|---|---|---|---|---|
| Positional Accuracy | mm | 0.010 | 0.010 | 0.010 |
| Repeatability | mm | 0.007 | 0.007 | 0.007 |
Chip Removal
| CHIP REMOVAL | UNIT | MHX-400 | MHX-500 | MHX-630 |
|---|---|---|---|---|
| Chip Removal | - | Front Side | Front Side | Front Side |
System
| SYSTEMS | UNIT | MHX-400 | MHX-500 | MHX-630 |
|---|---|---|---|---|
| Fanuc | - | Oi MF Plus | Oi MF Plus | Oi MF Plus |
| Siemens | - | 828D | 828D | 828D |
| Mitsubishi | -/min | M80V | M80V | M80V |
