HMC Series
MHX 630
A larger horizontal machining center with expanded pallet capacity, wider axis travel and strong spindle configuration for substantial multi-side machining requirements.
VMC Machine
MHX 630
| TABLE SIZE (CLAMPING AREA) | 630x630 MM |
|---|---|
| AXIS STROKE (X / Y / Z) | 1000 / 800 / 850 MM |
| RAPID FEED RATES X/Y/Z AXIS | 30 (40) M/MIN |
| LOAD CAPACITY | 1000 KG |
| SPINDLE | BT - 50 - |
| RATED POWER (FANUC) | 15 / 18.5 KW |
| WEIGHT (APPROX) | - KG |
| DIMENSIONS (APPROX) (WXDXH) | - MM |
VMC Machine
MHX 630

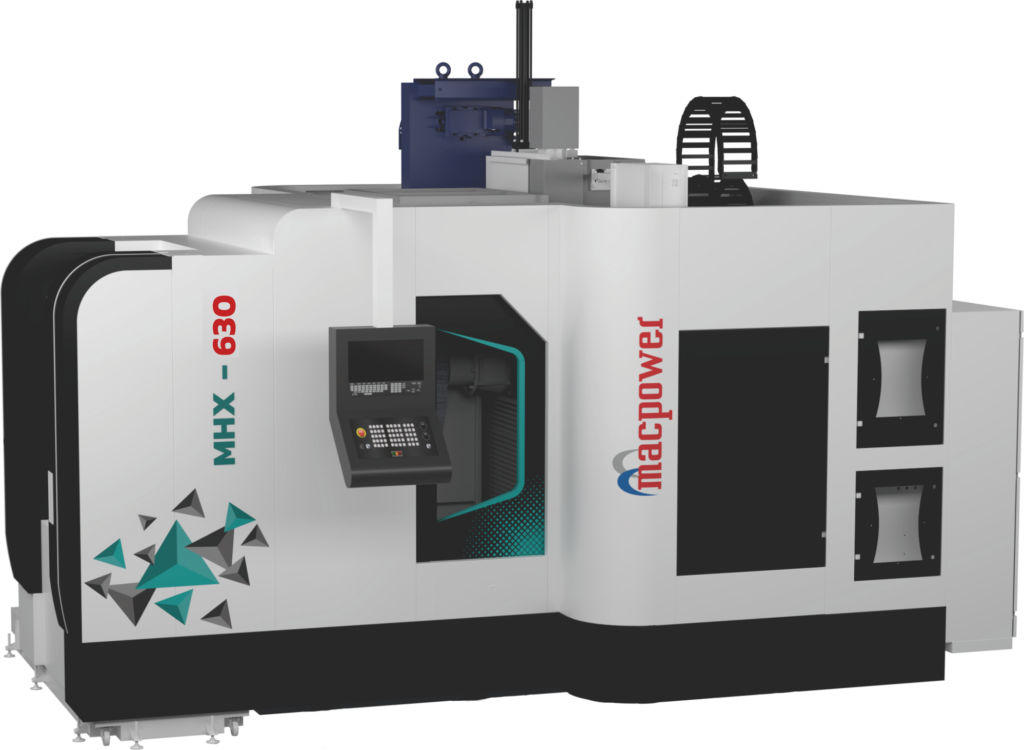

HMC 630 is a Horizontal Machining Center engineered for high-precision, high-performance machining with a robust 630 × 630 mm pallet platform. The machine offers X, Y and Z travels of 1000 mm, 800 mm and 850 mm respectively, making it suitable for demanding machining applications.
Designed for productive, stable machining, the MHX 630 features a BT-50 spindle with a speed range of 60–6000 RPM and cutting feed rates up to 10,000 mm/min. Its rigid spindle configuration and powerful motor setup support efficient material removal across complex industrial components.
The machine is equipped with an automatic tool changer offering 30 tools as standard with a 40-tool option, along with a rotary automatic pallet changer. With a maximum table load of 1000 kg and a maximum job capacity of Ø850 × 1000 mm, the MHX 630 combines capacity, flexibility and repeatable machining performance.
