Vertical Turning Lathe

VTL Series

Heavy-duty CNC vertical turning lathes engineered for large-diameter components, delivering superior rigidity, stable cutting performance, and long-term machining accuracy.

VERTICAL TURNING LATHE

VTL Series

Macpower introduces VTX Series – CNC Vertical Turning Centres designed by team that has abundance experience in manufacturing CNC turning centres and machining centres. This machine is ideal for turning heavy, large diameter components. Rugged & graded cast iron structure imparts high mechanical performance during roughing to finishing operations retaining long term accuracy and precision. Wide access to chuck zone facilitates easy loading and unloading of heavy components This machine occupies smaller floor space than a horizontal turning machine that can turn comparable sized parts.

VTX-400

STANDARD

VTX-500

STANDARD

VTX-600

STANDARD

VTX-800

STANDARD

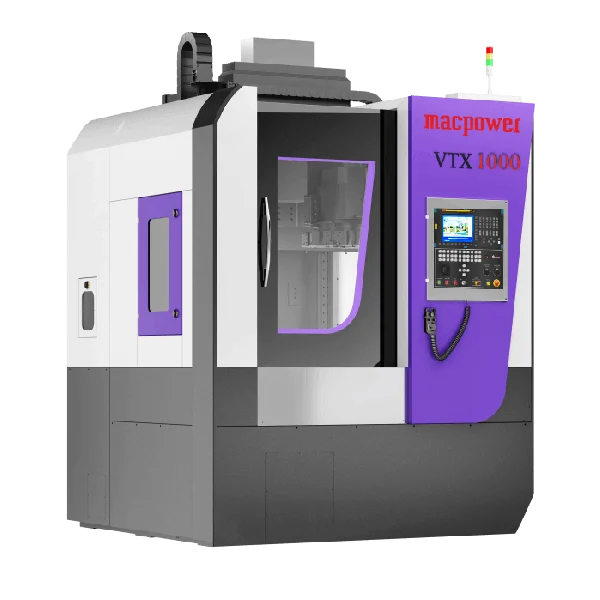

VTX-1000

STANDARD

VTX-1200

STANDARD

Download Catalogue

Overview

vtl

RIGID Structure

Sturdiness of the foundation determined the soundness of the structure. The major construction parts are based on FG260 grade cast iron, to ensure optimum harmonic stability and maximum damping during cutting. Base and column are reinforced with heavy ribs for stability and least distortion. The uniform dense, fine graded casting distributed stress and heat throughout the machine structure.

Standard Accessories

  • Linear Motion Guide Ways
  • AC Spindle Drive & AC Servo Drive
  • Hydraulic Chuck With Actuating Cylinder
  • Bi-directional Electro Mechanical Turret or Hydraulic Turret
  • Hydraulic Power Pack
  • Coolant System With Chip Tray
  • Centralized Lubrication System
  • Turning Tool Holders
  • Boring Bar Holders
  • Set of Sleeves
  • Patrol Light
  • Digital Tool Display
  • Foot Switch
  • SS Telescopic
  • AC Electric Panel
  • MPG

Optional Accessories

  • 12 Station Turret
  • Gear Box
  • ’C’ Axis
  • Live Tool Turret
  • Auto Tool Presetter
  • Chip Conveyor
  • Auto Door
  • Stabilizer
  • Oil Chiller
  • Oil Skimmer
  • Movable MOP

Technical Specifications

Capacity

DESCRIPTION UNIT VTX-400 VTX-500 VTX-600 VTX-800 VTX-1000 VTX-1200
Standard Turning Dia. mm 250 400 500 700 800 1000
Maximum Turning Dia. mm 400 500 600 800 1000 1200
Maximum Swing Dia. mm 625 625 800 1000 1200 1400
Maximum Turning Length mm 400 500 600 800 850 850

TRAVERSES

TRAVERSES UNIT VTX-400 VTX-500 VTX-600 VTX-800 VTX-1000 VTX-1200
Cross (X-axis) Travel mm 225 275 325 425 525 650
Longitudinal (Z-axis) Travel mm 410 510 610 810 860 860
Rapid Feed (X & Z axes) m/min 20 20 20 20 20 16/16
Cutting Feed Rate mm/min 0-10000 0-10000 0-10000 0-10000 0-10000 0-10000

Main Spindle

MAIN SPINDLE UNIT VTX-400 VTX-500 VTX-600 VTX-800 VTX-1000 VTX-1200
Spindle Motor (15 mins. Rating) kW 11/15 11/15 (P) 15/18.5 (P) 15/18.5 (High Torque P) 15/18.5 (High Torque P) 30/37
Spindle Nose - A2-6 A2-8 A2-8 A2-11/A2-15 A2-11/A2-15 A2-15
Standard Chuck Size mm 250 380 380 600 800 1000
Maximum Speed RPM 2200 1500 1200 900 600 600
Full Power Speed Range RPM 750-1750 375-1500 375-1200 325-900 162.5-600 287.5-600

TURRET

TURRET UNIT VTX-400 VTX-500 VTX-600 VTX-800 VTX-1000 VTX-1200
Turret Model - BTP-100 BTP-100 BTP-125 BTP-125 BTP-160 BTP-160
No. of Stations Nos. 8 8 8 8 8 8
Tool Shank Size mm 25x25 25x25 32x32 32x32 40x40 40x40
Max. Boring Bar Dia. mm 40 40 50 50 60 60

Machine Data

DESCRIPTION UNIT VTX-400 VTX-500 VTX-600 VTX-800 VTX-1000 VTX-1200
Machine Dimensions (WxD) mm 1667x2276 1707x2350 2200x2600 2530x3110 2850x3530 3000x3700
Machine Height (H) mm 2720 2880 3120 3710 3800 3900
Machine Weight (Approx) mm 4500 5200 7500 10500 12500 13500

Accuracy(AS PER JIS)

ACCURACY (As Per JIS) UNIT VTX-400 VTX-500 VTX-600 VTX-800 VTX-1000
Positioning mm 0.008 0.008 0.008 0.008 0.008 0.008
Repeatability mm 0.007 0.007 0.007 0.007 0.007 0.007

System

SYSTEMS UNIT VTX-400 VTX-500 VTX-600 VTX-800 VTX-1000 VTX-1200
Fanuc - Oi TF Plus Oi TF Plus Oi TF Plus Oi TF Plus Oi TF Plus 828D
Siemens - 808 D 808 D 828 D 828 D 828 D 828 D
