Vertical Turning Lathe

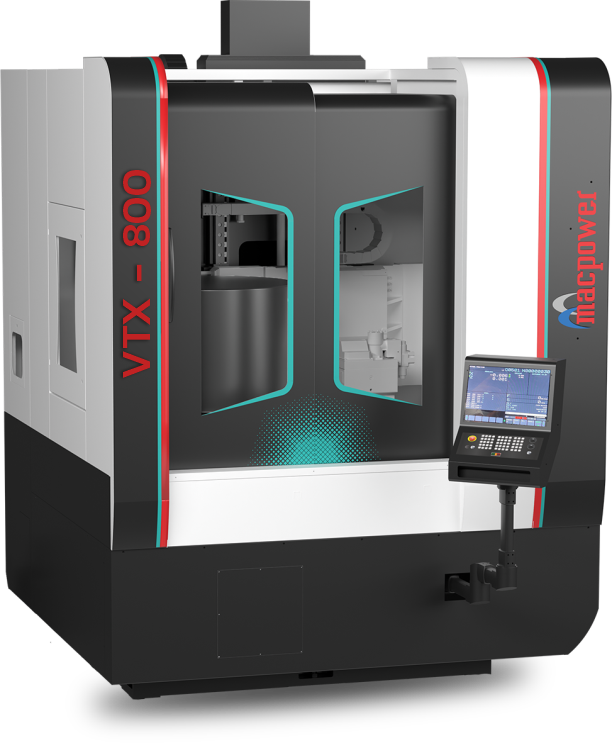

VTX 800
The VTX 800 is a powerful, heavy-duty CNC turning centre engineered for precise, efficient, and continuous machining of large industrial components.
VMC Machine
VTX 800
| STANDARD TURNING DIA | 700 MM |
|---|---|
| MAX. TURNING DIA | 800 MM |
| MAX. SWING DIA | 1000 MM |
| MAX. TURNING LENGTH | 800 MM |
| SPINDLE NOSE | A2 - 11 / A2 - 15 - |
| SPINDLE MOTOR | 15/18.5 (P) KW |
| STANDARD CHUCK SIZE | 610 MM |
| NO. OF STATIONS | 8 NOS. |
VMC Machine
VTX 800
The machine is equipped with an 18.5/22 kW high-torque spindle operating at speeds up to 900 rpm, with a cutting feed rate of up to 10,000 mm/min. Its BTP-125 turret with 8 tool stations enables fast, dependable tool indexing, while the 610 mm chuck and maximum turning diameter of 800 mm support large, demanding machining operations.
Built for accurate, repeatable results, the VTX 800 delivers positioning accuracy of 0.008 mm and repeatability of 0.007 mm. Its rigid, well-balanced construction supports stable cutting, controlled vibration, consistent surface finish, and dependable dimensional accuracy across extended production cycles.
With approximate dimensions of 2530 × 3110 × 3710 mm and a machine weight of around 10,500 kg, the VTX 800 combines an expanded turning capacity with a strong industrial platform. It is available with Fanuc 0i TF Plus and Siemens 828D control systems for flexible, straightforward integration into modern manufacturing environments.
