HMC Series

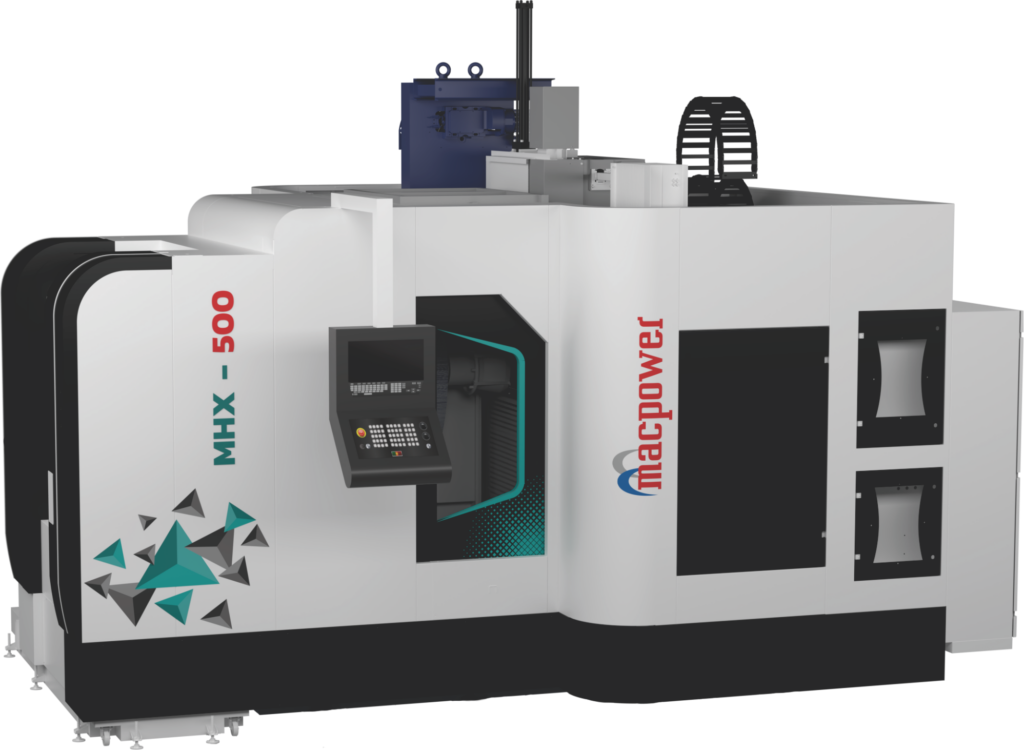

MHX 500
A horizontal machining center with a pallet-based setup, broad axis travel and robust spindle configuration for varied multi-side component machining applications.
VMC Machine
MHX 500
| TABLE SIZE (CLAMPING AREA) | 500x500 MM |
|---|---|
| AXIS STROKE (X / Y / Z) | 800 / 700 / 700 MM |
| RAPID FEED RATES X/Y/Z AXIS | 30 (40) M/MIN |
| LOAD CAPACITY | 500 KG |
| SPINDLE | BT - 50 - |
| RATED POWER (FANUC) | 15 / 18.5 KW |
| WEIGHT (APPROX) | - KG |
| DIMENSIONS (APPROX) (WXDXH) | - MM |
VMC Machine
MHX 500
HMC 500 is a high-performance Horizontal Machining Center engineered for precise, stable and productive machining. With X, Y and Z travels of 800 mm, 700 mm and 800 mm, it provides a well-balanced machining envelope for a wide range of industrial components.
The machine features a robust 500 × 500 mm pallet with a maximum job capacity of Ø700 × 800 mm and a safe table load of up to 500 kg. Its rotary pallet system supports efficient part handling and consistent machining performance.
Equipped with a BT-50 spindle, spindle speeds from 60 to 6000 RPM and cutting feed rates up to 10,000 mm/min, the MHX 500 is built for strong, reliable machining with repeatable accuracy and efficient production capability.
