VMC Machine
Vibrant 1066

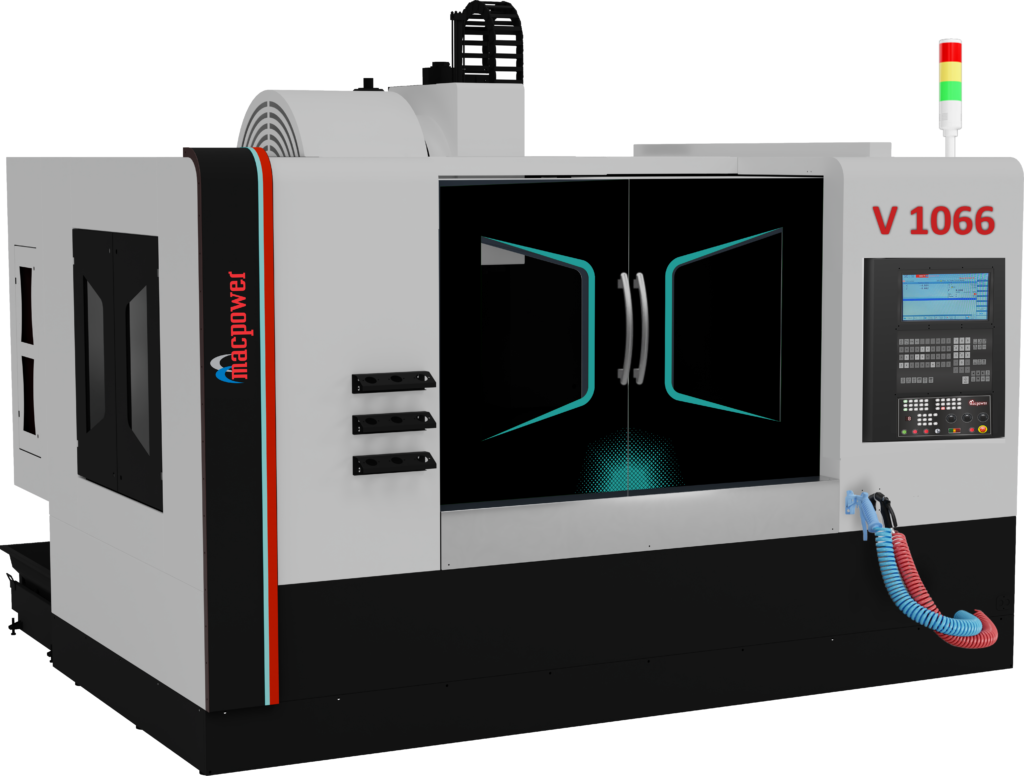

The Vibrant 1066 is a robust, high-capacity vertical machining centre engineered for precise, stable, and efficient machining of larger components.
VMC Machine
Vibrant 1066
| TABLE SIZE (CLAMPING AREA) | 600x1120 MM |
|---|---|
| AXIS STROKE (X / Y / Z) | 1020 / 610 / 610 MM |
| RAPID X/Y/Z AXIS | 30/30/24 M/MIN |
| LOAD CAPACITY | 1200 KG |
| SPINDLE | BT - 40 / BT - 50 - |
| RATED POWER (FANUC) | 11 / 15 KW |
| WEIGHT (APPROX) | - KG |
| DIMENSIONS (APPROX) (WXDXH) | 2883x3325x3310 (BT-40) MM |
VMC Machine
Vibrant 1066
The machine offers an extensive machining range with 1020 mm X-axis travel, 610 mm Y-axis travel, and 610 mm Z-axis travel, supported by rapid feed rates of 30/30/24 m/min. Its spacious 600 × 1120 mm table handles loads up to 1200 kg, making it suitable for larger and heavier machining applications.
The Vibrant 1066 is available with BT40 and BT50 spindle configurations, offering speeds up to 8000 rpm and 6000 rpm respectively. With cutting feed rates up to 10,000 mm/min and rated power options of 11 kW and 15 kW, it delivers capable, flexible machining performance.
A Twin Arm Automatic Tool Changer with 24/20 tool capacity and random tool selection enables efficient tool changes. Positioning accuracy of 0.010 mm and repeatability of 0.007 mm support consistent machining precision across production operations.
