VMC Machine
Vibrant 700

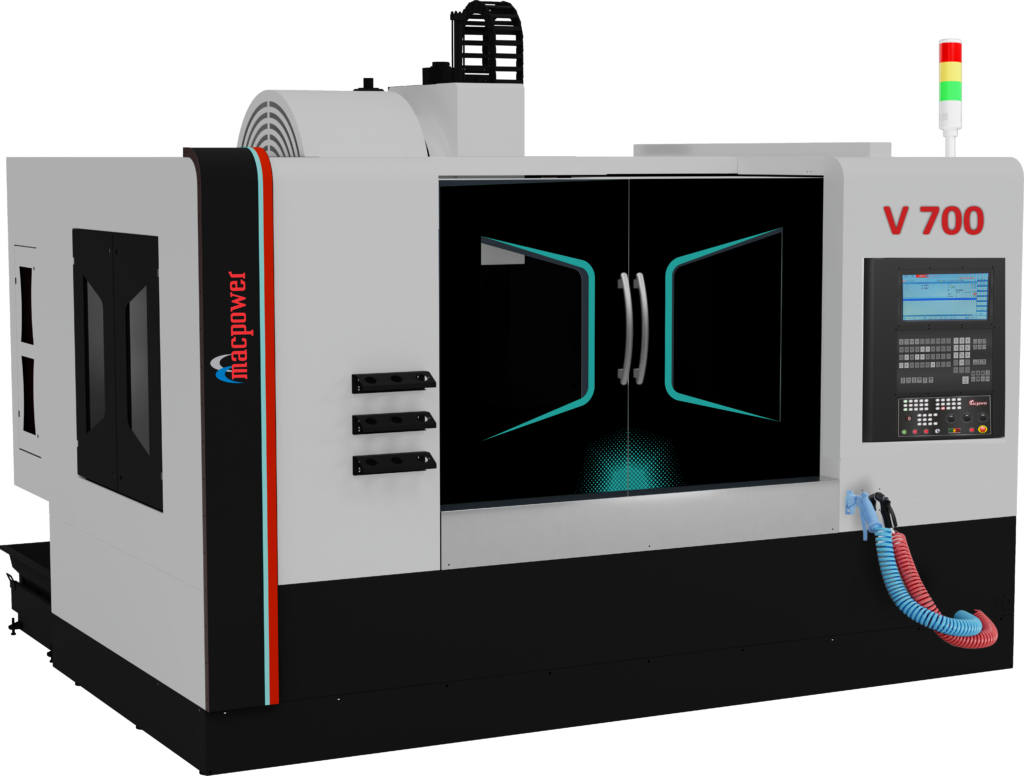

The Vibrant 700 is a strong, high-capacity vertical machining centre built for accurate, efficient, and continuous production.
VMC Machine
Vibrant 700
| TABLE SIZE (CLAMPING AREA) | 500x900 MM |
|---|---|
| AXIS STROKE (X / Y / Z) | 700 / 500 / 500 MM |
| RAPID X/Y/Z AXIS | 30/30/30 M/MIN |
| LOAD CAPACITY | 550 KG |
| SPINDLE | BT - 40 - |
| RATED POWER (FANUC) | 5.5 / 7.5 KW |
| WEIGHT (APPROX) | 4400 KG |
| DIMENSIONS (APPROX) (WXDXH) | 2407x2845x2890 MM |
VMC Machine
Vibrant 700
The machine features a BT40 spindle with a speed range of 80 to 8,000 rpm and a cutting feed rate of up to 10,000 mm/min. Rated spindle power options of 5.5 kW and 7.5 kW provide stable, controlled performance across a broad range of machining operations. A twin-arm automatic tool changer with 24 tools enables fast, reliable tool changes, while random tool selection improves workflow efficiency.
Engineered for precise, repeatable machining, the Vibrant 700 delivers positioning accuracy of 0.01 mm and repeatability of 0.007 mm. Its rigid, well-balanced construction supports consistent surface quality, dependable dimensional control, and reduced vibration during extended production runs.
With approximate dimensions of 2407 × 2845 × 2890 mm and a machine weight of around 4400 kg, the Vibrant 700 combines generous machining capacity with a practical industrial footprint. It is available with Fanuc, Siemens, and Mitsubishi control systems, allowing flexible, straightforward integration into varied manufacturing environments.
