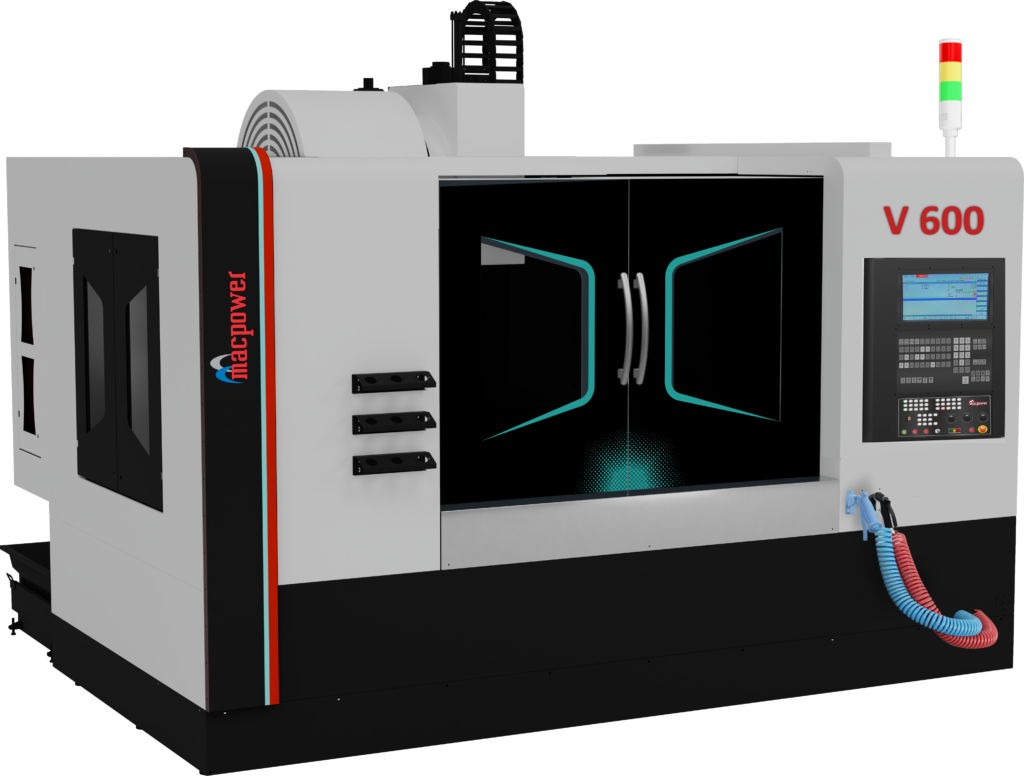

VMC Machine
Vibrant 600
The Vibrant 600 is a powerful, high-precision vertical machining centre designed for demanding, continuous production.
VMC Machine
Vibrant 600
| TABLE SIZE (CLAMPING AREA) | 500x800 MM |
|---|---|
| AXIS STROKE (X / Y / Z) | 600 / 500 / 500 MM |
| RAPID X/Y/Z AXIS | 30/30/30 M/MIN |
| LOAD CAPACITY | 500 KG |
| SPINDLE | BT - 40 - |
| RATED POWER (FANUC) | 5.5 / 7.5 KW |
| WEIGHT (APPROX) | 4360 KG |
| DIMENSIONS (APPROX) (WXDXH) | 2332x2845x2890 MM |
VMC Machine
Vibrant 600
The machine is equipped with a BT40 spindle operating between 80 and 8,000 rpm, with a cutting feed rate of up to 10,000 mm/min. Rated spindle power options of 5.5 kW and 7.5 kW provide stable, dependable performance across varied machining operations. A twin-arm automatic tool changer with 24 tools enables quick, smooth tool changes, while random tool selection helps reduce non-cutting time.
Built for accurate, repeatable machining, the Vibrant 600 delivers positioning accuracy of 0.01 mm and repeatability of 0.007 mm. Its rigid, well-balanced construction supports controlled vibration, consistent surface quality, and reliable dimensional performance during extended production runs.
With approximate dimensions of 2332 × 2845 × 2890 mm and a machine weight of around 4360 kg, the Vibrant 600 combines generous machining capacity with a practical industrial footprint. It is available with Fanuc, Siemens, and Mitsubishi control systems, allowing flexible, easy integration across different manufacturing environments.
