VMC Machine
Vibrant 800

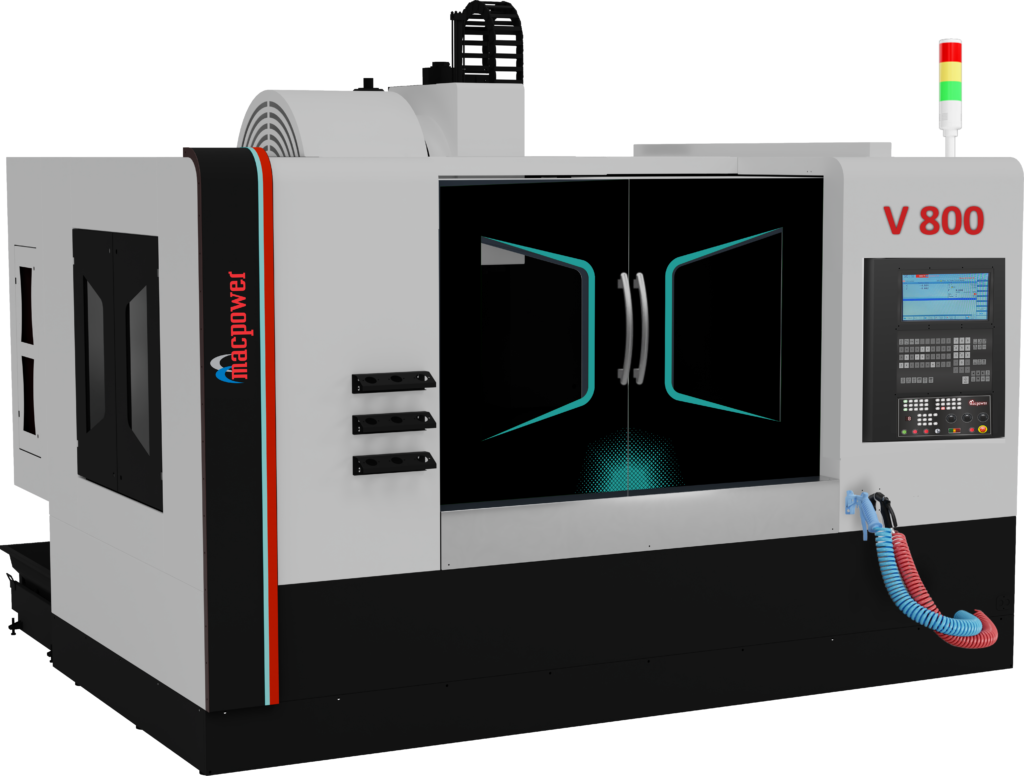

The Vibrant 800 is a powerful, high-capacity vertical machining centre engineered for precise, efficient, and continuous production.
VMC Machine
Vibrant 800
| TABLE SIZE (CLAMPING AREA) | 500x1000 MM |
|---|---|
| AXIS STROKE (X / Y / Z) | 800 / 550 / 550 MM |
| RAPID X/Y/Z AXIS | 30/30/30 M/MIN |
| LOAD CAPACITY | 600 KG |
| SPINDLE | BT - 40 - |
| RATED POWER (FANUC) | 7.5 / 11 KW |
| WEIGHT (APPROX) | 4800 KG |
| DIMENSIONS (APPROX) (WXDXH) | 2602x2842x2878 MM |
VMC Machine
Vibrant 800
The machine is equipped with a BT40 spindle operating from 80 to 8,000 rpm, with a cutting feed rate of up to 10,000 mm/min. Rated spindle power options of 7.5 kW and 11 kW provide strong, stable performance for demanding machining operations. A twin-arm automatic tool changer with 24 tools enables quick, reliable tool changes, while random tool selection improves process efficiency and reduces non-cutting time.
Built for accurate, repeatable results, the Vibrant 800 delivers positioning accuracy of 0.01 mm and repeatability of 0.007 mm. Its rigid, well-balanced construction supports controlled vibration, consistent surface finish, and dependable dimensional accuracy throughout extended production cycles.
With approximate dimensions of 2602 × 2842 × 2878 mm and a machine weight of around 4800 kg, the Vibrant 800 combines an expanded machining envelope with a practical industrial footprint. It is available with Fanuc, Siemens, and Mitsubishi control systems, offering flexible, straightforward integration across varied manufacturing environments.
