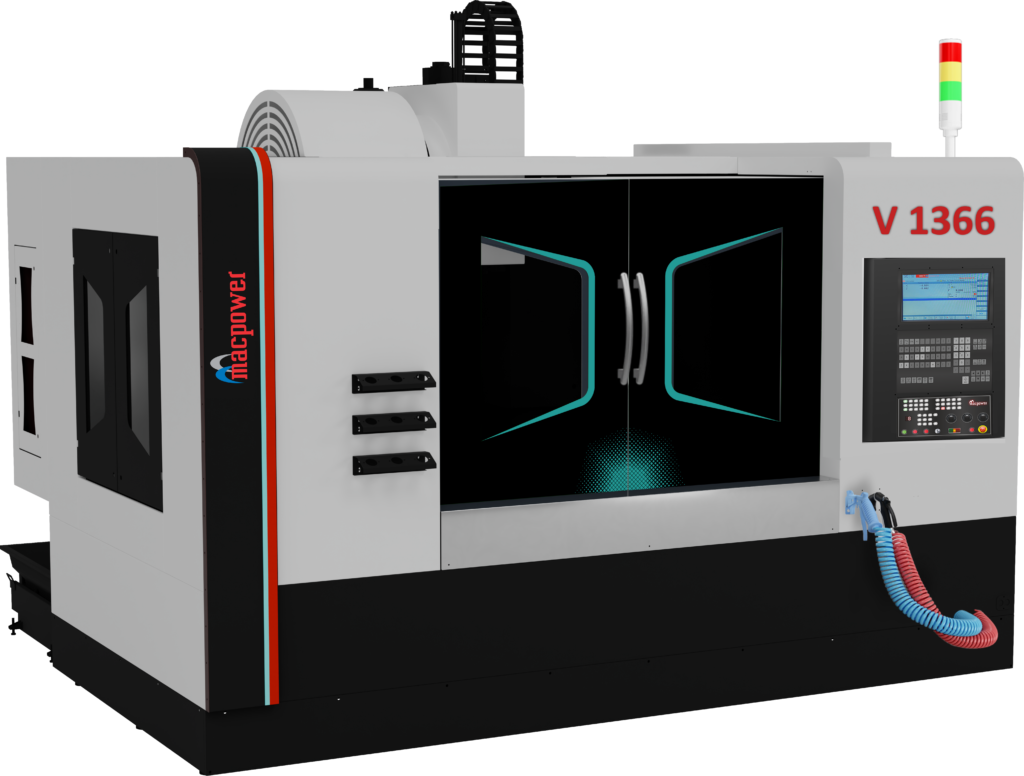

VMC Machine
Vibrant 1366
A larger vertical machining center with extended axis travel, substantial table capacity and flexible spindle options for broader component machining requirements.
VMC Machine
Vibrant 1366
| TABLE SIZE (CLAMPING AREA) | 650x1450 MM |
|---|---|
| AXIS STROKE (X / Y / Z) | 1310 / 650 / 650 MM |
| RAPID FEED RATES X/Y/Z AXIS | 30/30/30 M/MIN |
| LOAD CAPACITY | 1300 KG |
| SPINDLE | BT - 40 / BT - 50 - |
| RATED POWER (FANUC) | 11 / 15 KW |
| WEIGHT (APPROX) | 7405 / 8095 KG |
| DIMENSIONS (APPROX) (WXDXH) | 3590x3480x3220 (BT-40) MM |
VMC Machine
Vibrant 1366
The machine is available with BT40 and BT50 spindle configurations. The BT40 version operates from 80 to 8,000 rpm, while the BT50 version offers a speed range of 60 to 6,000 rpm. A cutting feed rate of up to 10,000 mm/min and spindle power options of 11 kW and 15 kW provide strong, controlled performance for heavy and precise machining applications.
A twin-arm automatic tool changer is available with 24 or 20 tools, depending on the selected configuration. Random tool selection supports fast, reliable tool changes and helps reduce non-cutting time. The machine delivers positioning accuracy of 0.010 mm and repeatability of 0.007 mm, supporting consistent surface quality and dependable dimensional control.
With approximate dimensions of 2883 × 3325 × 3310 mm, the V 1066 combines a generous machining envelope with rigid, industrial-grade construction. It is compatible with Fanuc, Siemens, and Mitsubishi control systems, allowing flexible, straightforward integration into varied manufacturing environments.
