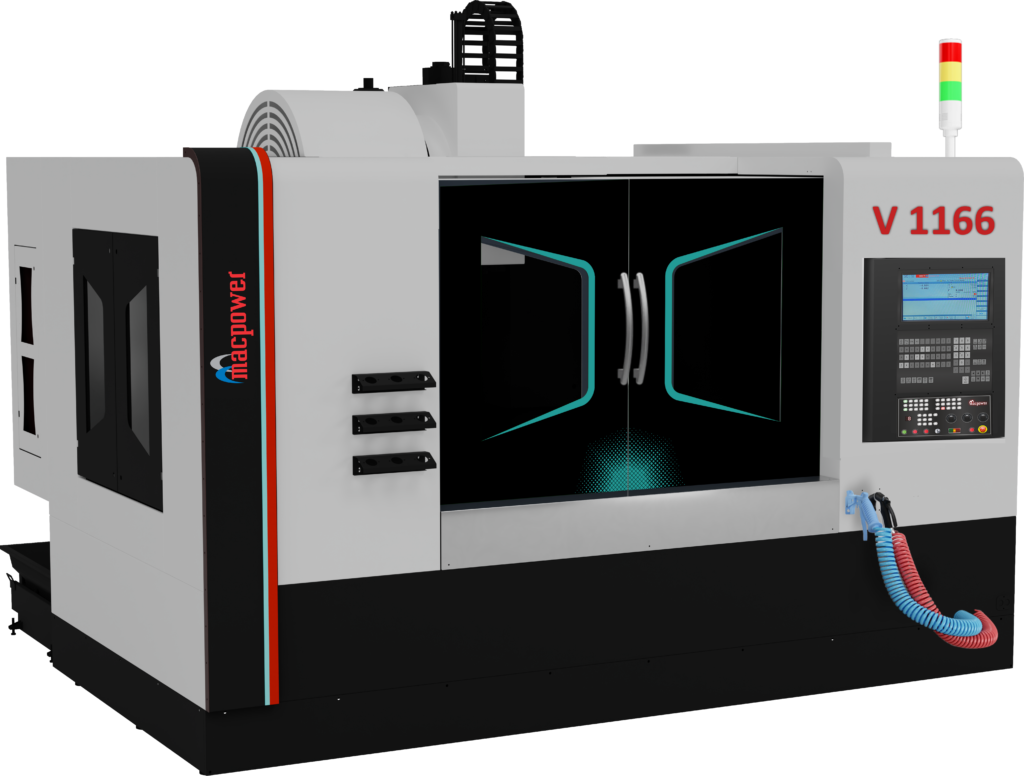

VMC Machine
Vibrant 1166
The V 1166 is a heavy-duty, high-capacity vertical machining centre developed for precise, stable, and continuous manufacturing.
VMC Machine
Vibrant 1166
| TABLE SIZE (CLAMPING AREA) | 600x1300 MM |
|---|---|
| AXIS STROKE (X / Y / Z) | 1100 / 650 / 650 MM |
| RAPID FEED RATES X/Y/Z AXIS | 30/30/30 M/MIN |
| LOAD CAPACITY | 1100 KG |
| SPINDLE | BT - 40 / BT - 50 - |
| RATED POWER (FANUC) | 11 / 15 KW |
| WEIGHT (APPROX) | 7170 / 7860 KG |
| DIMENSIONS (APPROX) (WXDXH) | 2990x3480x3290 (BT-40) MM |
VMC Machine
Vibrant 1166
The V 1166 is a heavy-duty, high-capacity vertical machining centre developed for precise, stable, and continuous manufacturing.
A twin-arm automatic tool changer is offered with 24 or 20 tools, depending on the selected spindle configuration. Random tool selection enables fast, reliable tool changes and reduces non-cutting time. Positioning accuracy of 0.01 mm and repeatability of 0.007 mm support consistent surface quality, dependable dimensional control, and repeatable production results.
With approximate dimensions of 2990 × 3480 × 3290 mm for the BT40 configuration and a machine weight of around 7170 to 7860 kg, the V 1166 combines a generous machining envelope with rigid, industrial-grade construction. It is compatible with Fanuc, Siemens, and Mitsubishi control systems, allowing flexible, straightforward integration into varied manufacturing environments.
