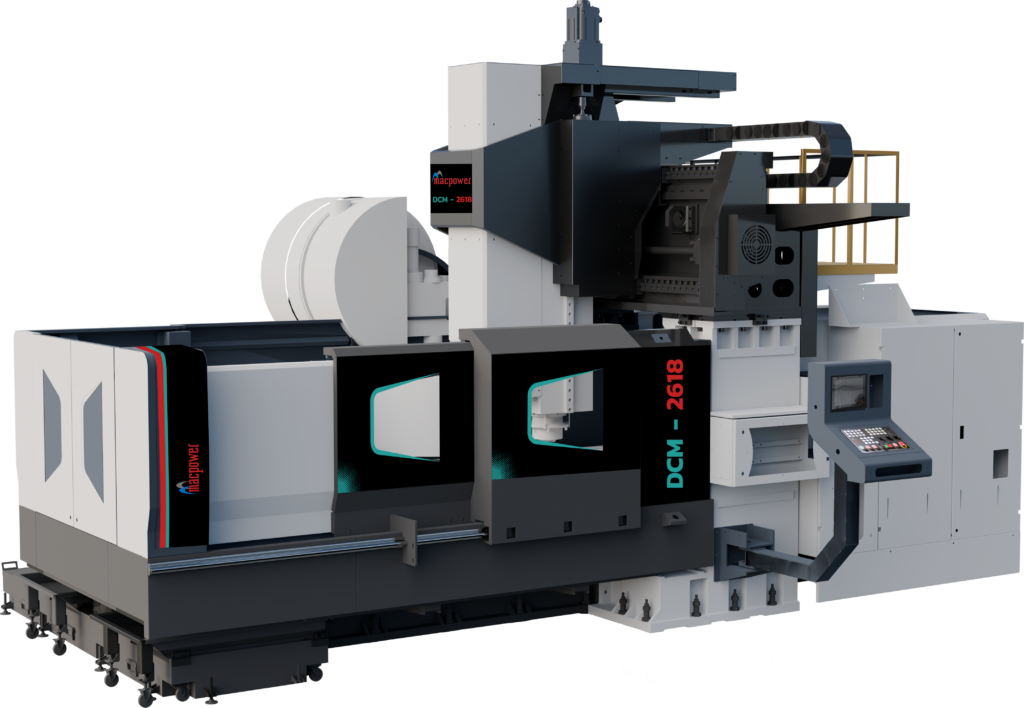

DCM 2618
A heavy-duty double column machining center with a broader work area, extended travel and robust spindle configuration for larger industrial components.
DOUBLE COLUMN MACHINE
DCM 2618
| TABLE SIZE (CLAMPING AREA) | 2600 x 1600 MM |
|---|---|
| AXIS STROKE (X / Y / Z) | 2650 / 1850 / 800 (1000) MM |
| RAPID FEED (X/Y/Z ) | 20/20/15 M/MIN |
| LOAD CAPACITY | 7000 KG |
| SPINDLE | BT - 50 - |
| RATED POWER (FANUC) | 18.5 / 22 KW |
| WEIGHT (APPROX) | 22500 KG |
| DIMENSIONS (APPROX) (WxLxH) | - MM |
DOUBLE COLUMN MACHINE
DCM 2618
The DCM 2618 is designed to deliver high precision and rigidity for demanding machining applications. It features 2650 mm X-axis travel, 1850 mm Y-axis travel, and 800 mm Z-axis travel, with an optional 1000 mm Z-axis configuration. A 1950 mm distance between columns, 2600 × 1600 mm table, and 7000 kg table load capacity provide the strength and workspace needed for machining large, heavy components.
Powered by a BT-50 spindle operating from 80 to 6000 RPM, the DCM 2618 delivers cutting feed rates of up to 10,000 mm/min for efficient machining. The machine is available with Fanuc, Siemens, and Mitsubishi control systems and features a standard 20-tool automatic tool changer, expandable to 24, 30, or 40 tools, ensuring smooth operation and improved productivity.
Built for long-term reliability, the DCM 2618 offers 0.020 mm positional accuracy and 0.015 mm repeatability for consistent machining performance. A screw chip removal system supports efficient chip evacuation, while its robust 22,500 kg construction ensures stability and dependable operation in demanding industrial environments.
