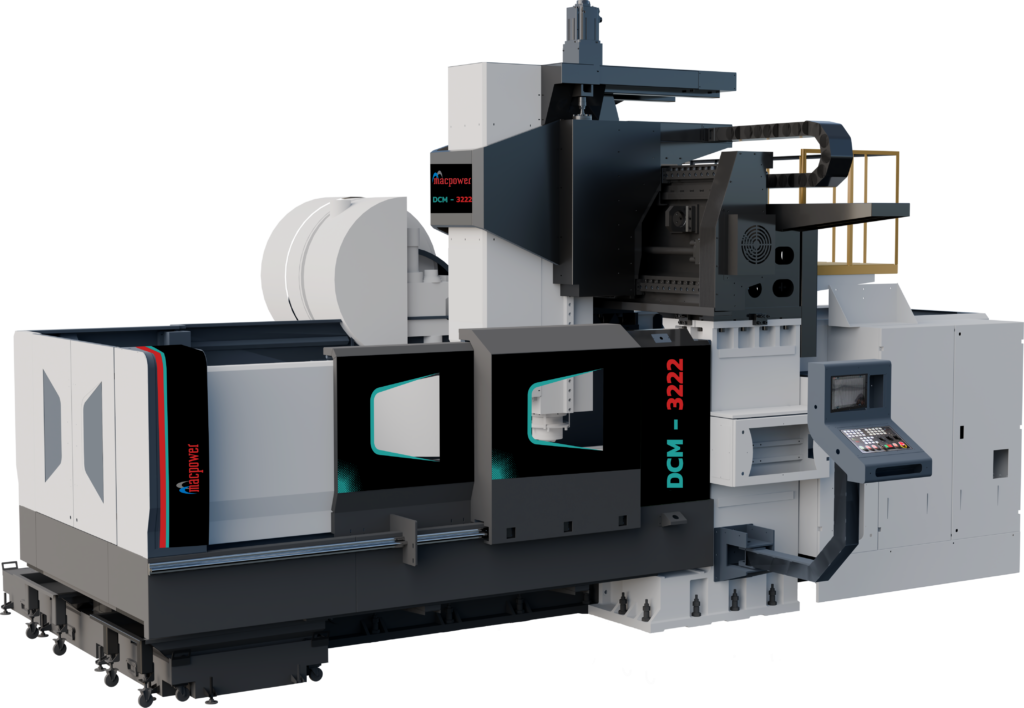

DCM 3222
A wide-capacity double column machining center with broader cross travel, substantial table support and robust spindle capability for large-format component machining.
DOUBLE COLUMN MACHINE
DCM 3222
| TABLE SIZE (CLAMPING AREA) | 3000 x 2000 MM |
|---|---|
| AXIS STROKE (X / Y / Z) | 3200 / 2760 / 800 (1000) MM |
| RAPID (X/Y/Z ) | 15/15/15 M/MIN |
| LOAD CAPACITY | 9000 KG |
| SPINDLE | BT - 50 - |
| RATED POWER (FANUC) | 18.5 / 22 / 30 KW |
| WEIGHT (APPROX) | 33000 KG |
| DIMENSIONS (APPROX) (WxLxH) | - MM |
DOUBLE COLUMN MACHINE
DCM 3222
The DCM 3222 is designed for machining extra-large workpieces with outstanding stability and precision. It offers 3200 mm X-axis travel, 2760 mm Y-axis travel, and 800 mm Z-axis travel, with an optional 1000 mm Z-axis configuration. A 2500 mm distance between columns, 3000 × 2000 mm table, and 9000 kg table load capacity provide the strength and workspace required for heavy-duty industrial applications.
Powered by a BT-50 spindle operating from 80 to 6000 RPM, the machine delivers cutting feed rates of up to 10,000 mm/min for efficient machining performance. It is available with Fanuc, Siemens, and Mitsubishi control systems and features a standard 20-tool automatic tool changer, expandable to 24, 30, or 40 tools, ensuring faster tool changes and improved productivity.
Built for long-term reliability, the DCM 3222 provides 0.025 mm positional accuracy and 0.020 mm repeatability for consistent machining results. A screw conveyor with chip tray supports efficient chip evacuation, while the machine’s 33,000 kg rigid construction delivers exceptional stability for demanding, high-precision manufacturing environments.
