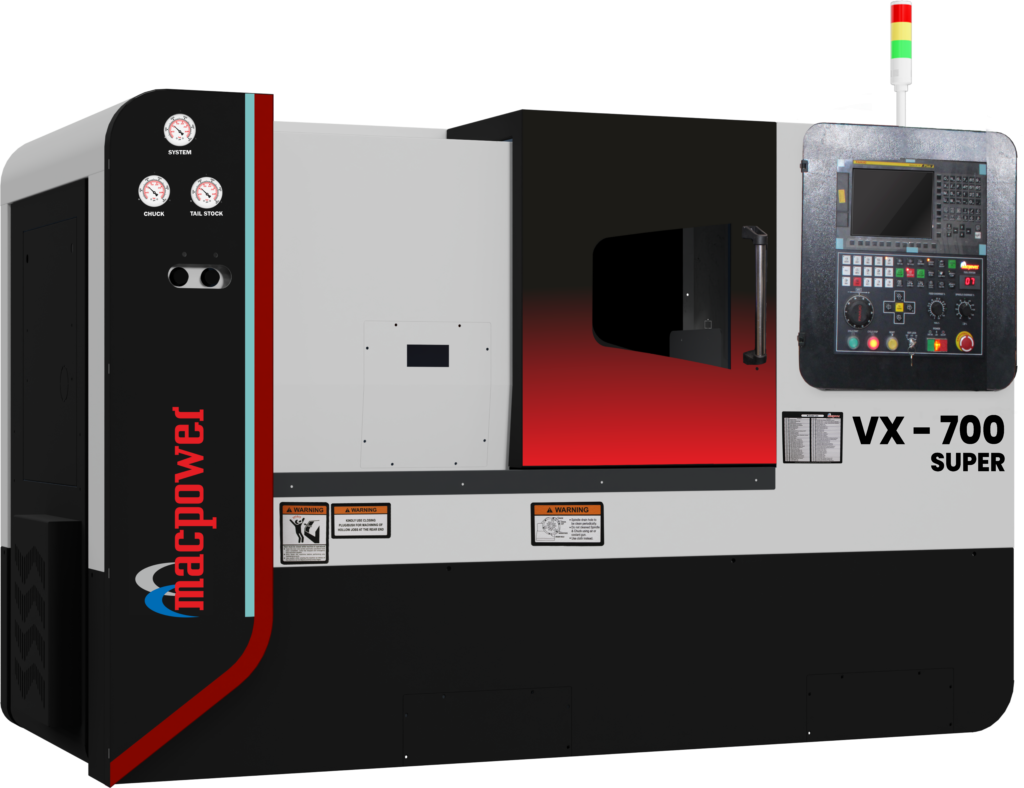

Turning Center
VX 700 SUPER
The VX 700 Super is a powerful, extended-capacity CNC turning center engineered for precise, stable, and heavy-duty machining across demanding production applications.
Turning Center
VX 700 SUPER
| SWING OVER CARRIAGE | 280 MM |
|---|---|
| MAX. TURNING DIA | 350 MM |
| MAX. TURNING LENGTH | 700 MM |
| TRAVEL (X / Z) | 185 / 700 MM |
| RAPID FEED (X / Z) | 24 M/MIN |
| CHUCK SIZE | 250x3 MM |
| SPINDLE POWER (FANUC) | 11 / 15 KW |
| SPINDLE BORE | 90 MM |
| SPINDLE NOSE | A2 - 8 |
| WEIGHT (APPROX) | 3500 KG |
Turning Center
VX 700 SUPER
The VX 700 Super offers a 350 mm maximum turning diameter, 500 mm swing over bed, and 700 mm maximum turning length, with a 720 mm distance between centers. Its slide configuration provides 185 mm X-axis travel and 700 mm Z-axis travel, supported by rapid feed rates of 24 m/min on both axes.
The machine features an A2-8 spindle nose, 90 mm spindle bore, 75 mm maximum bar capacity, and a 250 mm 3-jaw chuck. Its spindle operates from 50 to 2800 rpm, with a full power range of 750–1750 rpm and 11/15 kW spindle motor ratings for strong, controlled turning performance.
An 8-station turret with 25 × 25 mm tool size and 40 mm maximum boring bar capacity supports versatile machining requirements. Positioning accuracy of 0.008 mm and repeatability of 0.007 mm help maintain precise, consistent performance across production cycles.
