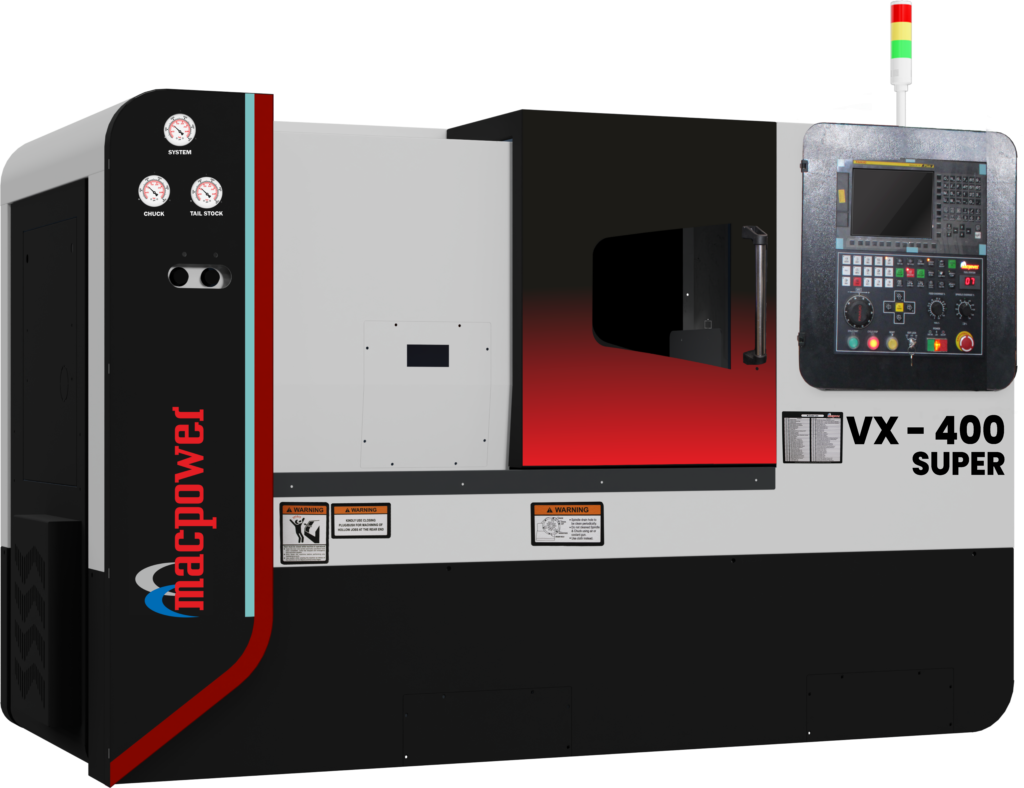

Turning Center
VX 400 SUPER
The VX 400 Super is a robust, higher-capacity CNC turning center engineered for precise, powerful, and stable machining across demanding production applications.
Turning Center
VX 400 SUPER
| SWING OVER CARRIAGE | 280 MM |
|---|---|
| MAX. TURNING DIA | 320 MM |
| MAX. TURNING LENGTH | 425 MM |
| TRAVEL (X / Z) | 170 / 425 MM |
| RAPID FEED (X / Z) | 30 M/MIN |
| CHUCK SIZE | 200x3 MM |
| SPINDLE POWER (FANUC) | 7.5 / 11 KW |
| SPINDLE BORE | 63 MM |
| SPINDLE NOSE | A2 - 6 |
| WEIGHT (APPROX) | 3100 KG |
Turning Center
VX 400 SUPER
The VX 400 Super offers a 320 mm maximum turning diameter, 500 mm swing over bed, and 425 mm maximum turning length, with a 450 mm distance between centers. Its slide configuration provides 170 mm X-axis travel and 425 mm Z-axis travel, supported by rapid feed rates of 30 m/min on both axes.
The machine features an A2-6 spindle nose, 63 mm spindle bore, 51 mm maximum bar capacity, and a 200 mm 3-jaw chuck. Its spindle operates from 50 to 3500 rpm, with a full power range of 1000–3000 rpm and motor ratings of 7.5/11 kW, providing strong, controlled turning performance.
An 8-station turret with 25 × 25 mm tool size and 40 mm maximum boring bar capacity supports versatile machining requirements. Positioning accuracy of 0.008 mm and repeatability of 0.007 mm help maintain precise, consistent performance across production cycles.
