Turning Center
VX 550 SUPER

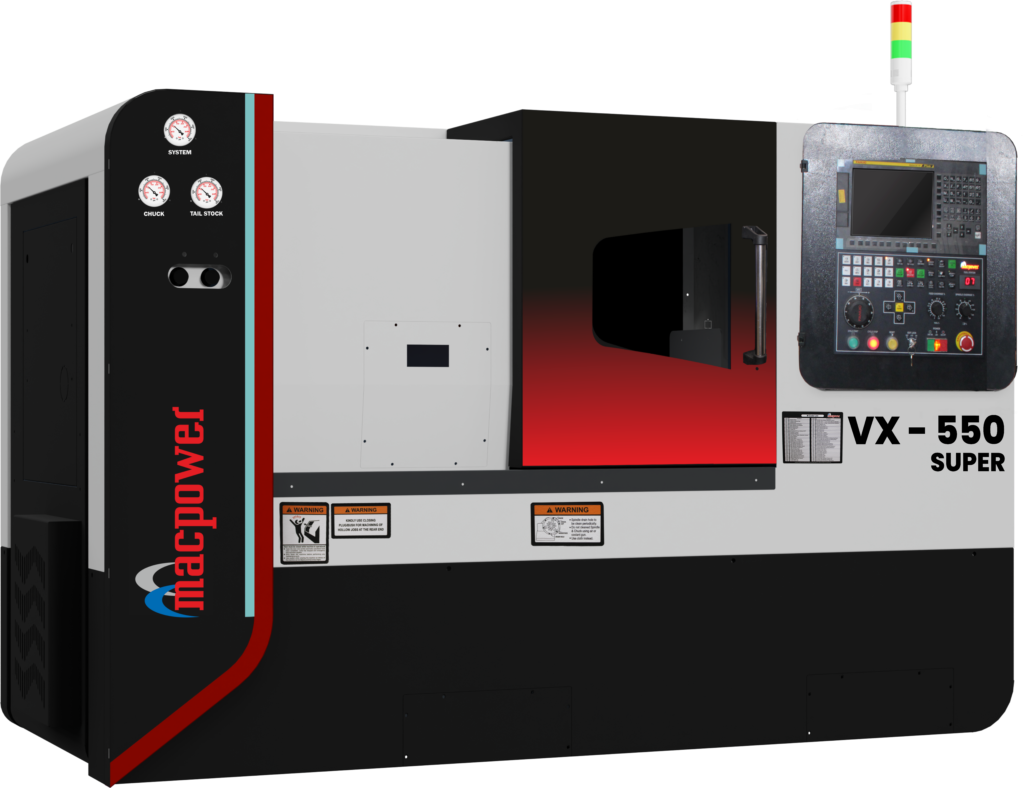

The VX 550 Super is a powerful, heavy-duty CNC turning center engineered for precise, stable, and reliable machining across demanding production applications.
Turning Center
VX 550 SUPER
| SWING OVER CARRIAGE | 280 MM |
|---|---|
| MAX. TURNING DIA | 350 MM |
| MAX. TURNING LENGTH | 550 MM |
| TRAVEL (X / Z) | 185 / 550 MM |
| RAPID FEED (X / Z) | 24 M/MIN |
| CHUCK SIZE | 250x3 MM |
| SPINDLE POWER (FANUC) | 11 / 15 KW |
| SPINDLE BORE | 90 MM |
| SPINDLE NOSE | A2 - 8 |
| WEIGHT (APPROX) | 3200 KG |
Turning Center
VX 550 SUPER
The VX 550 Super offers a 350 mm maximum turning diameter, 500 mm swing over bed, and 500 mm maximum turning length, with a 520 mm distance between centers. Its slide configuration provides 185 mm X-axis travel and 500 mm Z-axis travel, supported by rapid feed rates of 24 m/min on both axes.
The machine features an A2-8 spindle nose, 90 mm spindle bore, 75 mm maximum bar capacity, and a 250 mm 3-jaw chuck. Its spindle operates from 50 to 2800 rpm, with a full power range of 750–1750 rpm and 11/15 kW spindle motor ratings for powerful, controlled turning performance.
An 8-station turret with 25 × 25 mm tool size and 40 mm maximum boring bar capacity supports versatile machining requirements. Positioning accuracy of 0.008 mm and repeatability of 0.007 mm help deliver consistent, precise results across production cycles.
