Vertical Machining Center

JUMBO Series

Heavy-duty Vertical Machining Centers engineered for large-format components, delivering exceptional rigidity, high metal removal rates, and uncompromising machining accuracy for demanding industrial applications.

VERTICAL MACHINING CENTER

Jumbo Series

Our new generation Vertical Machining Centers are incorporate a wide range of enhancements and available with a myriad of options to choose from. The modular machine portfolio and sophisticated engineering knowledge that enables us to deliver optimized solutions with optimal performance that make Macpower VMCs better than ever before.

V 1377

Super

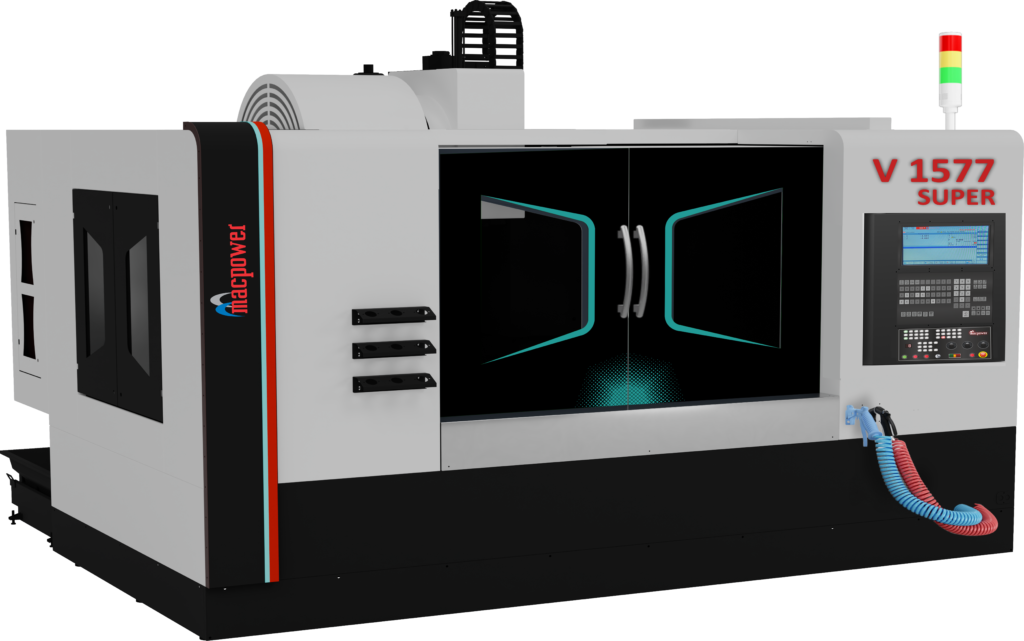

V 1577

Super

V 1588

SUPER

V 1688

SUPER

V 1888

SUPER

V 2199

SUPER

Download Catalogue

Overview

JS

RIGID Structure & Frame

Sturdiness of the foundation determined the soundness of the structure. The major construction parts are based on FG260 grade cast iron, to ensure optimum harmonic stability and maximum damping during cutting. Base and column are reinforced with heavy ribs for stability and least distortion. The uniform dense, fine graded casting distributed stress and heat throughout the machine structure.

Standard Accessories

  • LM Guide Ways
  • 24 Tool ACT
  • Work Light
  • Hand Weel
  • Leveling PAD
  • Ring Coolant
  • Patrol Light
  • Air Gun
  • Centralized Lubrication System
  • Pull Stud
  • Air Dry Cutting

Optional Accessories

  • Coolant Gun
  • Auto Door
  • Chip Conveyor
  • Linear Scale
  • Stabilizer
  • Flush Coolant
  • Coolant Through Spindle
  • 30 Tools ATC
  • Rotary Table
  • Rotary Tilting Table
  • Gear Box
  • Higher RPM Spindles
  • Spindle Chiller
  • Indexer
  • Dry Air
  • Tool Probe
  • Work Probe
  • Tooled Up Solutions
  • Vertical Axis Pul Up During Power Failure

Machine Output

GX-100-Junior-Component-01-1 (2)
GX-200-Super-Component-05 (1)
GX-200-Super-Component-04 (2)
GX-100-Junior-Component-05 (2)

Technical Specifications

Capacity

DESCRIPTION UNIT VIBRANT 1055 VIBRANT 1066 V 1377 Super VIBRANT 1577 V 1588 Super V 1688 Super V 1888 Super V 2188 Super
X Axis Travel mm 1050 1020 1310 1510 1510 1610 1825 2100
Y Axis Travel mm 510 610 710 710 810 810 810 910
Z Axis Travel mm 510 610 710 710 810 810 810 910
Rapid Feed Rates X/Y/Z Axis m/min 24/24/24 30/30/24 24/24/20 24/24/20 20/20/20 20/20/16 20/20/16 15/15/15
Distance From Table Top To Spindle Face mm 100-610 140-750 140-850 140-850 140-950 100-950 100-950 100-1050

Slides

DESCRIPTION UNIT VIBRANT 1055 VIBRANT 1066 V 1377 Super VIBRANT 1577 V 1588 Super V 1688 Super V 1888 Super V 2188 Super
Table Size (Clamping Area) mm 500x1250 610x1120 700 x 1450 700 X 1650 800 x 1700 800 x 1800 800 x 2000 900 x 2400
Longitudinal (Z-axis) Travel mm 150 150 200 200
No./Width/VD of T-Slots mm 5/18/100 5/18/100 5/18/125 5/18/125 6/18/125 6/18/125 6/18/125 6/18/125
Max Safe Load on Table KG 1000 1200 1500 1500 2200 2300 2600 2800

Main Spindle

DESCRIPTION UNIT VIBRANT 1055 VIBRANT 1066 V 1377 Super VIBRANT 1577 V 1588 Super V 1688 Super V 1888 Super V 2188 Super7
Taper - BT 40 / BT 50 BT 40 / BT 50 BT40/BT50 BT 40/BT 50 BT40/BT50 BT40/BT50 BT40/BT50 BT40/BT50
Speed RPM 80-8000 80-8000/60-6000 80-8000/60-6000 80-8000/60-6000 80-8000/60-6000 80-8000/60-6000 80-8000/60-6000 80-8000/60-6000
Cutting Feed Rate mm/min 1-10000 1-10000 1-10000 1-10000 1-10000 1-10000 1-10000 1-10000
Rated Power (Fanuc) KW 7.5/11 11/15 11/15 11/15 11/15 11/15 11/15 11/15

AUTO TOOL CHANGER

DESCRIPTION UNIT VIBRANT 1055 VIBRANT 1066 V 1377 Super VIBRANT 1577 V 1588 Super V 1688 Super V 1888 Super V 2188 Super
Type - TWIN ARM TWIN ARM Twin Arm TWIN ARM Twin Arm Twin Arm Twin Arm Twin Arm
No. of Tools - 24 24/20 24/20 24/20 24/20 24/20 24/20 24/20
Tool Selection - RANDOM RANDOM RANDOM RANDOM RANDOM RANDOM RANDOM RANDOM
Max. Tool Dia. (Pocket Full Empty)(BT 40/BT 50) mm 80/150 80/150, 125/200 80/150, 125/200 80/150, 125/200 80/150, 125/200 80/150, 125/200 80/150, 125/200 80/150, 125/200
Tool Length (BT 40/BT 50) mm 300 300/400 300/400 300/400 300/400 300/400 300/400 300/400
Tool Weight (BT 40/BT 50) Kg 7 7/20 7/20 7/20 7/20 7/20 7/20 7/20

INSTALLATION Data

DESCRIPTION UNIT VIBRANT 1055 VIBRANT 1066 V 1377 Super VIBRANT 1577 V 1588 Super V 1688 Super V 1888 Super V 2188 Super
Pneuamtic Supply Bar 6 6 6 6 6 6 6 6
Machine Weight (Approx) Kg 6200 - 9525/10120 10000/10500 12280/12930 12500/13150 13500/14150 18000/18800
Total Connected Load KVA 25 25 26 26 26 26 30 30
Power Supply - AC 440 V, 50HZ, 3PH. “AC 440 V, 50HZ, 3PH.” AC 440 V, 50HZ, 3PH. AC 440 V, 50HZ, 3PH. AC 440 V ,50HZ, 3PH. AC 440 V, 50HZ, 3 PH. AC 440 V ,50HZ, 3 PH. AC 440 V ,50HZ, 3 PH.
Machine Dimentions (WXDXH) (Approx) mm 2800x3170x3060 3554 x 3357 x 3600(BT-40), 3554 x 3357 x 3685(BT-50) 3820x3357x3600 (BT-40) 3820x3357x3685 (BT-50) 4166 x 3668 x 3760(BT-40), 4166 x 3668 x 3845(BT-50) 4366 x 3668 x 3760(BT-40), 4366 x 3668 x 3845(BT-50) 4826 x 3873 x 3758(BT-40), 4826 x 3873 x 3843(BT-50) 5667 x 4190 x 4100(BT-40), 5667 x 4190 x 4185(BT-50)

Accuracy (AS PER JIS)

DESCRIPTION UNIT VIBRANT 1055 VIBRANT 1066 V 1377 Super VIBRANT 1577 V 1588 Super V 1688 Super V 1888 Super V 2188 Super
Positioning Accuracy mm 0.01 0.01 0.01 0.01 0.01 0.01 0.01 0.01
Repeatability mm 0.007 0.007 0.007 0.007 0.007 0.007 0.007 0.007

System

DESCRIPTION UNIT VIBRANT 1055 VIBRANT 1066 V 1377 Super VIBRANT 1577 V 1588 Super V 1688 Super V 1888 Super V 2188 Super
Fanuc - OI MF PLUS OI MF PLUS OI MF PLUS OI MF PLUS OI MF PLUS OI MF PLUS OI MF PLUS OI MF PLUS
SIEMENS Diemens - 828D 828D 828D 828D 828D 828D 828D 828D
Mitsubishi - M80 V M80 V M80 V M80 V M80 M80 M80 M80
