VMC Machine
V 1377 Super
High-precision VMC engineered for demanding production, with generous travels, rigid construction and reliable machining performance across complex industrial applications.
VMC Machine
V 1377 SUPER
| TABLE SIZE (CLAMPING AREA) | 700x1450 MM |
|---|---|
| AXIS STROKE (X / Y / Z) | 1310 / 710 / 710 MM |
| RAPID X/Y/Z AXIS | 24/24/20 M/MIN |
| LOAD CAPACITY | 1500 KG |
| SPINDLE | BT - 40 / BT - 50 - |
| RATED POWER (FANUC) | 11 / 15 KW |
| WEIGHT (APPROX) | 9525 / 10120 KG |
| DIMENSIONS (APPROX) (WXDXH) | 3554x3435x3600 (BT-40) MM |
VMC Machine
V 1377 SUPER

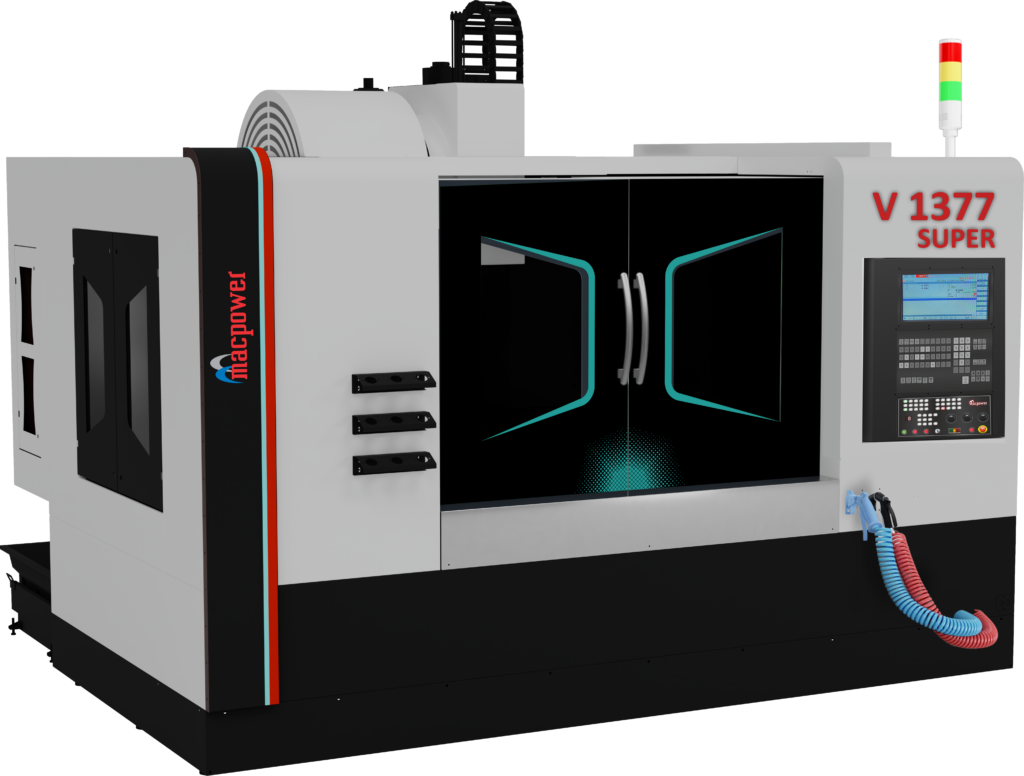

The V 1377 SUPER is a high-precision vertical machining centre developed for demanding industrial production. Its rigid construction and spacious working area make it suitable for machining large, complex and precision-critical components.
With 1310 mm X-axis travel, 710 mm Y and Z-axis travel, and a 700 × 1450 mm table, the machine provides a broad, stable machining range. The table supports loads up to 1500 kg, helping maintain accuracy during heavy-duty operations.
Its BT40/BT50 spindle, 24-tool twin-arm automatic tool changer and advanced control options support faster production cycles. Precise positioning, dependable repeatability and efficient tool changes make it well suited for consistent, high-volume manufacturing.
