VMC Machine
V 1888 Super

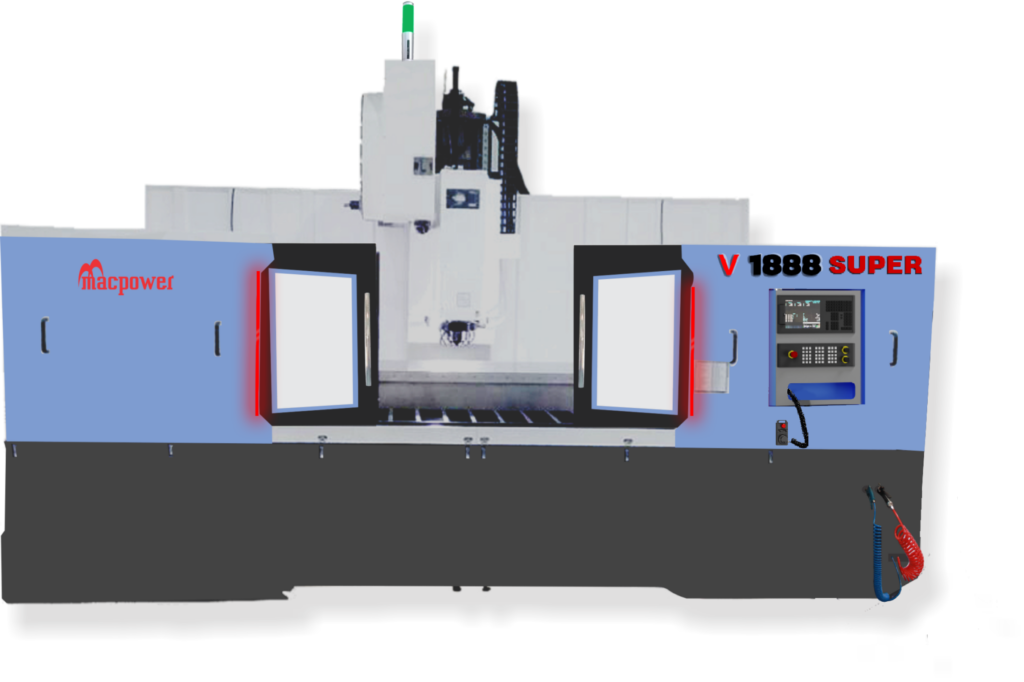

The V 1888 SUPER is a powerful, high-capacity vertical machining centre engineered for large, heavy and precision-critical components.
VMC Machine
V 1888 SUPER
| TABLE SIZE (CLAMPING AREA) | 800x2000 MM |
|---|---|
| AXIS STROKE (X / Y / Z) | 1825 / 810 / 810 MM |
| RAPID X/Y/Z AXIS | 20/20/16 M/MIN |
| LOAD CAPACITY | 2600 KG |
| SPINDLE | BT - 40 / BT - 50 - |
| RATED POWER (FANUC) | 11 / 15 KW |
| WEIGHT (APPROX) | 13500 / 14150 KG |
| DIMENSIONS (APPROX) (WXDXH) | 4846x3873x3758 (BT-40) MM |
VMC Machine
V 1888 SUPER
With 1825 mm X-axis travel and 810 mm movement on both the Y and Z axes, the machine offers an expansive machining envelope. Its 800 × 2000 mm table supports workpieces weighing up to 2600 kg, making it suitable for oversized and demanding applications.
The BT40/BT50 spindle configuration delivers speed ranges of 80–8000 RPM or 60–6000 RPM. Combined with rapid axis movement, strong cutting-feed capability and reliable power output, it supports efficient machining across varied materials and production requirements.
A 24-tool twin-arm automatic tool changer, 0.01 mm positioning accuracy and 0.007 mm repeatability help maintain fast, consistent cycles. Fanuc, Siemens and Mitsubishi control options provide flexible operation for different manufacturing systems and workflow preferences.
