VMC Machine
V 2199 Super

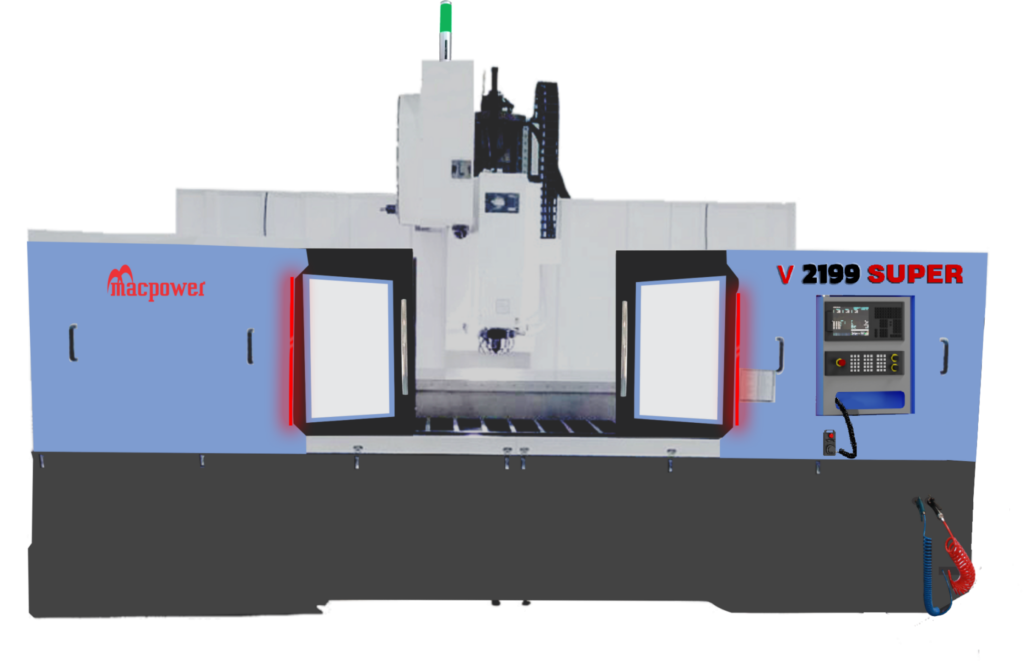

The V 2199 SUPER is a heavy-duty, high-capacity vertical machining centre designed for large, complex and precision-critical components.
VMC Machine
V 2199 SUPER
| TABLE SIZE (CLAMPING AREA) | 900x2400 MM |
|---|---|
| AXIS STROKE (X / Y / Z) | 2100 / 910 / 910 MM |
| RAPID X/Y/Z AXIS | 15/15/15 M/MIN |
| LOAD CAPACITY | 2800 KG |
| SPINDLE | BT - 40 / BT - 50 - |
| RATED POWER (FANUC) | 11 / 15 KW |
| WEIGHT (APPROX) | 18000 / 18800 KG |
| DIMENSIONS (APPROX) (WXDXH) | 5667x4285x4100 (BT-40) MM |
VMC Machine
V 2199 SUPER
With 2100 mm X-axis travel and 910 mm movement on both the Y and Z axes, the machine provides a broad machining envelope. Its 900 × 2400 mm table supports workpieces weighing up to 2800 kg, making it suitable for oversized industrial applications.
The BT40/BT50 spindle configuration offers speed ranges of 80–8000 RPM or 60–6000 RPM. Combined with 15 m/min rapid movement on all three axes and strong cutting-feed capability, it supports efficient machining across varied production requirements.
A 24-tool twin-arm automatic tool changer, 0.01 mm positioning accuracy and 0.007 mm repeatability help maintain fast, consistent output. Fanuc, Siemens and Mitsubishi control options provide flexible operation across different manufacturing systems and workflow preferences.
