VMC Machine
V 1688 Super

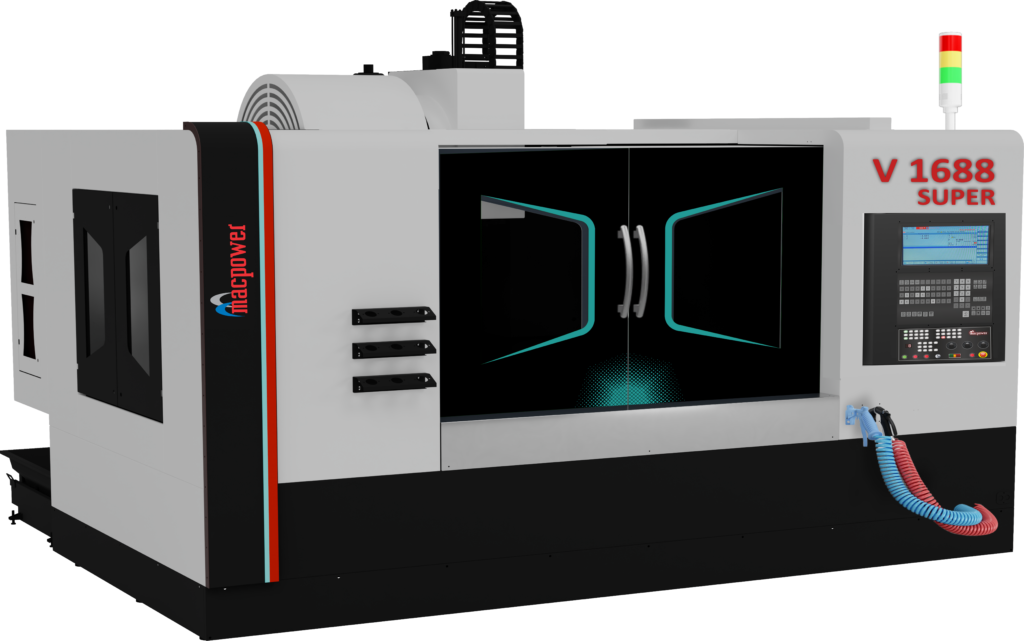

The V 1688 SUPER is a heavy-duty, high-precision vertical machining centre developed for large, complex and demanding industrial components.
VMC Machine
V 1688 SUPER
| TABLE SIZE (CLAMPING AREA) | 800x1800 MM |
|---|---|
| AXIS STROKE (X / Y / Z) | 1610 / 810 / 810 MM |
| RAPID X/Y/Z AXIS | 20/20/16 M/MIN |
| LOAD CAPACITY | 2300 KG |
| SPINDLE | BT - 40 / BT - 50 - |
| RATED POWER (FANUC) | 11 / 15 KW |
| WEIGHT (APPROX) | 12500 / 13150 KG |
| DIMENSIONS (APPROX) (WXDXH) | 4366x3685x3760 (BT-40) MM |
VMC Machine
V 1688 SUPER
The V 1688 SUPER is a heavy-duty, high-precision vertical machining centre developed for large, complex and demanding industrial components.
The BT40/BT50 spindle configuration offers speed ranges of 80–8000 RPM or 60–6000 RPM, supporting varied machining conditions. Rapid axis movement, strong cutting-feed capability and dependable spindle performance help improve productivity across heavy and precision-focused applications.
A 24-tool twin-arm automatic tool changer, 0.01 mm positioning accuracy and 0.007 mm repeatability contribute to efficient, consistent production. Fanuc, Siemens and Mitsubishi control options allow the machine to suit different operating preferences and manufacturing environments.
