VMC Machine
V 1588 Super

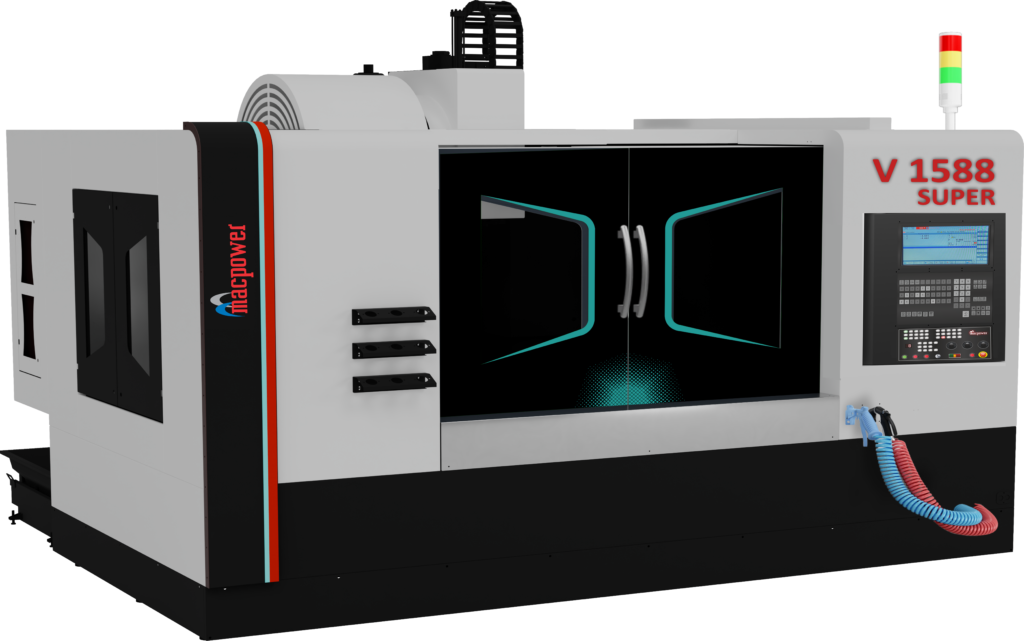

The V 1588 SUPER is a robust, high-precision vertical machining centre engineered for larger, heavier and more complex industrial components.
VMC Machine
V 1588 SUPER
| TABLE SIZE (CLAMPING AREA) | 800x1700 MM |
|---|---|
| AXIS STROKE (X / Y / Z) | 1510 / 810 / 810 MM |
| RAPID X/Y/Z AXIS | 20/20/20 M/MIN |
| LOAD CAPACITY | 2200 KG |
| SPINDLE | BT - 40 / BT - 50 - |
| RATED POWER (FANUC) | 11 / 15 KW |
| WEIGHT (APPROX) | 12280 / 12930 KG |
| DIMENSIONS (APPROX) (WXDXH) | 4166x3685x3760 (BT-40) MM |
VMC Machine
V 1588 SUPER
With 1510 mm X-axis travel and 810 mm movement on both the Y and Z axes, the machine offers an expanded working envelope for deep and oversized machining applications. The 800 × 1700 mm table provides generous component space and supports loads up to 2200 kg.
The BT40/BT50 spindle configuration delivers flexible speed performance from 80 to 8000 RPM or 60 to 6000 RPM. Combined with strong cutting-feed capability and rapid axis movement, it supports efficient material removal across varied machining requirements.
A 24-tool twin-arm automatic tool changer, dependable positioning accuracy and multiple CNC control options help improve productivity and process consistency. Fanuc, Siemens and Mitsubishi systems allow the machine to adapt to different operational standards and production environments.
