Turning & Milling Centerr

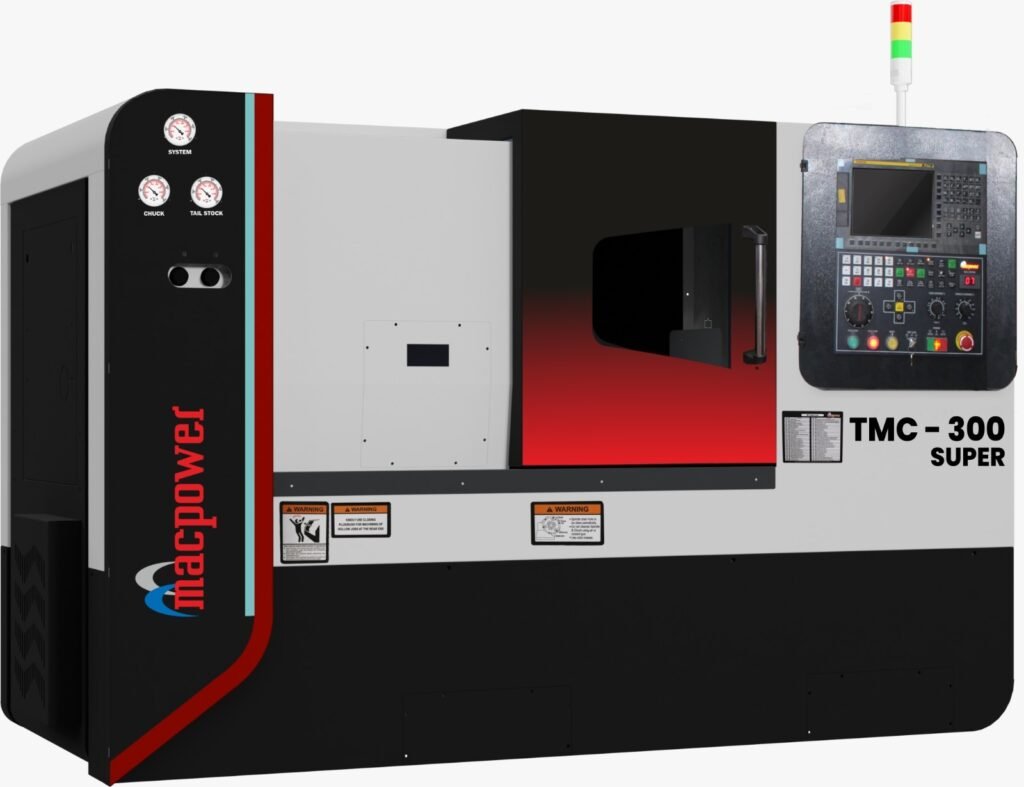

TMC Series
Built for complex component manufacturing, the TMC Series delivers stable turning, integrated milling capability, and consistent precision for faster, more productive machining cycles.
Technical Specifications
Capacity
| DESCRIPTION | UNIT | GX-100 JUNIOR | GX-100 JUNIOR PLUS | GX-100 SUPER | GX-200 SUPER |
|---|---|---|---|---|---|
| Standard Turning Dia. | mm | TMC 250 | TMC 250 SUPER | TMC - 300 | TMC - 300 SUPER |
| Swing Over Carriage | mm | Ø 180 | Ø 180 | Ø 250 | Ø 250 |
| Maximum Turning Dia. (Full Length) | mm | Ø 180 | Ø 180 | Ø 250 | Ø 250 |
| Swing Over Bed | mm | Ø 450 | Ø 450 | Ø 500 | Ø 500 |
| Maximum Turning Length | mm | 250 | 250Ø 250 | 320 | 320 |
| Distance Between Center | mm | - | - | 370 | 370 |
Slides
| DESCRIPTION | UNIT | TMC 250 | TMC 250 SUPER | TMC - 300 | TMC - 300 SUPER |
|---|---|---|---|---|---|
| Cross (X axis) Travel | mm | 100 | 100 | 135 | 135 |
| Longitudinal (Z axis) Travel | mm | 250 | 250 | 320 | 320 |
| Rapid Feed (X axis) | m/mm | 30 | 30 | 30 | 30 |
| Rapid Feed (Z axis) | m/mm | 30 | 30 | 30 | 30 |
Main Spindle
| DESCRIPTION | UNIT | TMC 250 | TMC 250 SUPER | TMC - 300 | TMC - 300 SUPER |
|---|---|---|---|---|---|
| Spindle Nose | - | A2-5 | A2-6 | A2-5 | A2-6 |
| Spindle Bore | mm | 40 | 54 | 54 | 63 |
| Spindle Bore | mm | Ø 54 | Ø 63 | Ø 54 | Ø 63 |
| Max. Bar Capacity | mm | Ø 42 | Ø 51 | Ø 42 | Ø 51 |
| Chuck Size | mm | Ø 165 x 3 Jaw | Ø 200 x 3 Jaw | Ø 165 x 3 Jaw | Ø 200 x 3 Jaw |
| Speed Range | rpm | 50 – 4000 | 50 – 3500 | 50 – 4000 | 50 – 3500 |
| Full Power Range | rpm | 1333 – 3000 | 1333 – 3000 | 50 – 4000 | 50 – 3500 |
| Spindle Motor (Continues Rating) | kw | 7.5 | 7.5 | 7.5 | 7.5 |
| Spindle Motor (15min. Rating) | kw | 11 | 11 | 11 | 11 |
LIVE TOOL TURRET
| DESCRIPTION | UNIT | TMC 250 | TMC 250 SUPER | TMC - 300 | TMC - 300 SUPER |
|---|---|---|---|---|---|
| Live Tool Holder Size | - | VDI - 30 | VDI - 30 | BMT - 45 | BMT - 45 |
| Number of Stations | Nos. | 12 | 12 | 12 | 12 |
| Number of Stations (Driven) | Nos. | 12 | 12 | 12 | 12 |
| Tool Size | mm | 20 x 20 | 20 x 20 | 20 x 20 | 20 x 20 |
| Max. Boring Bar Capacity | mm | Ø 32 | Ø 32 | Ø 32 | Ø 32 |
| Max. Live Tool Speed | rpm | 4000 | 4000 | 4000 | 4000 |
| Live Motor Power | kw | 2.2 | 2.2 | 2.2 | 2.2 |
Other Data
| DESCRIPTION | UNIT | TMC 250 | TMC 250 SUPER | TMC - 300 | TMC - 300 SUPER |
|---|---|---|---|---|---|
| Weight (Approx.) | kg | - | - | - | - |
| Dimensions (W x D x H)(Approx.) | mm | - | - | - | - |
Accuracy
| DESCRIPTION | UNIT | TMC 250 | TMC 250 SUPER | TMC - 300 | TMC - 300 SUPER |
|---|---|---|---|---|---|
| Positioning Accuracy | mm | 0.008 | 0.008 | - | - |
| Repeatability | mm | 0.007 | 0.007 | - | - |
TAIL STOCK
| DESCRIPTION | UNIT | TMC 250 | TMC 250 SUPER | TMC - 300 | TMC - 300 SUPER |
|---|---|---|---|---|---|
| Quill Tapper | - | - | - | MT 4 | MT 4 |
| Quill Diameter | mm | - | - | Ø 70 | Ø 70 |
| Quill Stroke | mm | - | - | 80 | 80 |
SYSTEM
| DESCRIPTION | UNIT | TMC 250 | TMC 250 SUPER | TMC - 300 | TMC - 300 SUPER |
|---|---|---|---|---|---|
| Mitsubishi | - | - | - | M80V LA | M80V LA |
| *Without Tailstock | - | - | - | - | - |
