Turning Center
TMC 300
Compact, versatile CNC turning performance engineered for precise machining with live-tool capability and dependable production flexibility.
Turning Center
TMC 300
| SWING OVER CARRIAGE | 250 MM |
|---|---|
| MAX. TURNING DIA | 250 MM |
| MAX. TURNING LENGTH | 320 MM |
| TRAVEL (X / Z) | 135 / 320 MM |
| RAPID FEED (X / Z) | 30 M/MIN |
| CHUCK SIZE | 165x3 MM |
| SPINDLE POWER (FANUC) | 7.5 / 11 KW |
| SPINDLE BORE | 54 MM |
| SPINDLE NOSE | A2 - 5 |
| WEIGHT (APPROX) | KG |
Turning Center
TMC 300

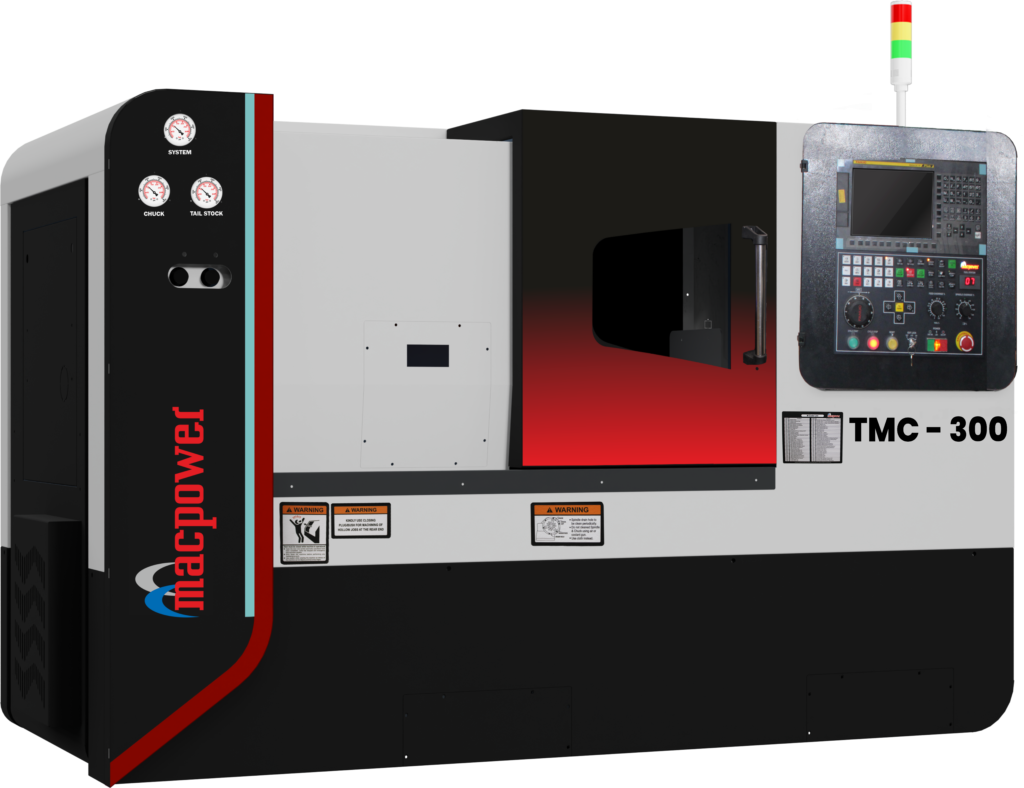

The TMC 300 is a compact, versatile CNC turning machine engineered for precise, dependable machining of complex components. Its live-tool turret and integrated tailstock configuration provide a flexible platform for demanding turning and driven-tool operations.
It offers a 500 mm swing over bed, 250 mm swing over carriage, 250 mm maximum turning diameter, 320 mm maximum turning length and 370 mm distance between centers. The machine provides 135 mm X-axis travel and 320 mm Z-axis travel, with rapid feeds of 30 m/min on both axes.
The A2-5 spindle features a 54 mm spindle bore, 42 mm maximum bar capacity and 165 mm 3-jaw chuck, with a 50–4000 RPM speed range. A 12-station BMT-45 live-tool turret, with all 12 stations driven, delivers up to 4000 RPM live-tool speed through a 2.2 kW motor. The MT-4 tailstock with 70 mm quill diameter and 80 mm quill stroke further supports stable, production-ready machining.
