Turning Center

NX Series

Compact, high-performance CNC turning centers engineered for precise machining, faster production, and dependable output across diverse manufacturing applications.

Turning Center

NX Series

In today’s competitive market, you need robust CNC turning centers with un-compromised performance and specifications to produce world class products quickly accurately and with minimum non productive time.

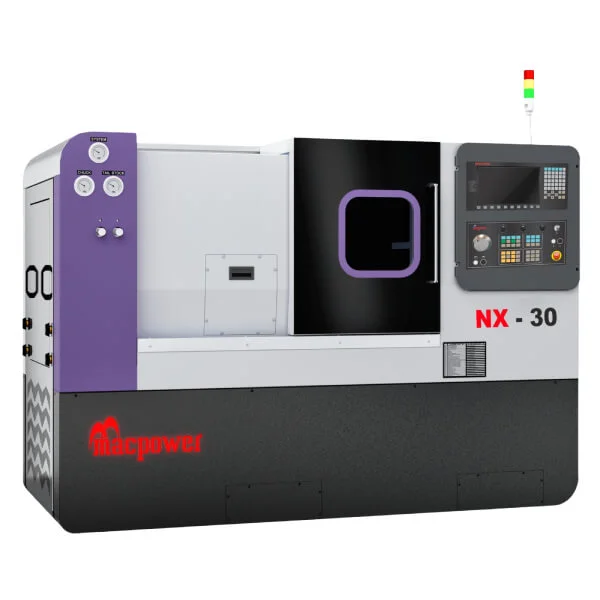

NX 30

STANDARD

NX 30

SUPER

NX 40

STANDARD

NX 40

SUPER

NX 50

STANDARD

NX 50

PLUS

NX 10

STANDARD

NX 20

MONO

Download Catalogue

Overview

NX

Structure & Frame

The rigid bed and step up structure are made out of grade 25 cast iron for more stability. It is ribbed to provide more rigidity and less distortion during cuts and faster production, with virtually no vibration. A totally revamped ergonomic structure and frame helps stabilise different machining operations with requisite precision

NX

Tailstock

The tailstock consists of a hydraulically operated quill, which moves inside the housing. The quill and body are independently moveable. The tailstock is supported on V and flat guide ways. Programmable quill is provided as a standard feature.

NX

Rear Chip Removal Arrangement

New VX Series design enables it to give wide passage for chip disposal on back side. With such design chips will directly fall down into chip tray and also removing of chip from chip tray without stopping the machining cycle

NX

Carriage Assembly

X and Z Slides are mounted on precise four-circuit linear motion blocks with high load-carrying capacity, designed to support increased acceleration and deceleration rates as well as cutting pressure.

NX

Revamped Guarding

Equipped with the advantage of an ergonomic design. The machine comes with a full guard that enables a clean premise throughout the operation. These feature prevents contamination being spread on to machine slides, switches and other electrical devices.with pressure dials on upper side and small door.

Precise Roller Guideways

Precise Roller Guideways

Precise Roller Guideways

Precise Roller Guideways

Precise Roller Guideways

Standard Accessories

  • Roller Guide Ways
  • AC Spindle Drive & AC Servo Drive
  • Machine with Tail Stock
  • Hydraulic Chuck
  • Bi-directional Electro Mechanical Turret or Hydraulic Turret
  • Hydraulic Unit
  • Coolant System
  • Centralized Lubrication System
  • Turning Tool Blocks
  • Boring Bar Blocks
  • Patrol Light
  • Digital Tool Display
  • Foot Switch

Optional Accessories

  • Chip Conveyor
  • Bar Feeder
  • Bar Puller
  • Live Tooling
  • Stabilizer
  • Hydraulic Collet Chuck
  • Auto Door
  • Oil Skimmer
  • Steady Rest
  • Tooled Up Solution
  • Tool Probe
  • Work Probe
  • Electro Mechanical Turret

Machine Output

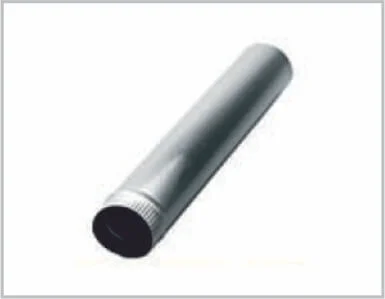

VX-300-SUPER-MACHINE-COMPONENT-IMG01

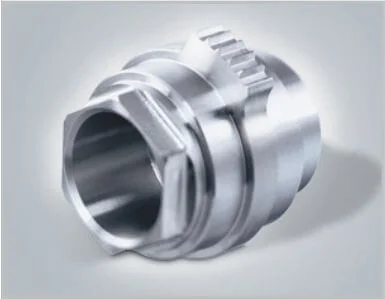

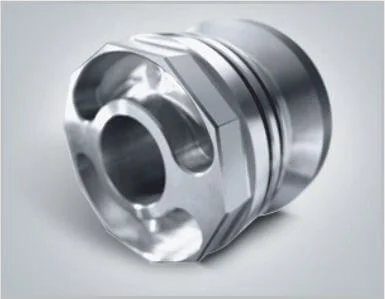

VX-400-MACHINE-COMPONENT-IMG04-1-1

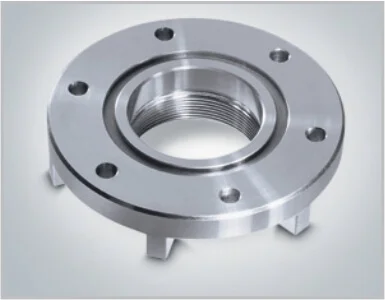

VX-400-MACHINE-COMPONENT-IMG01-1-1
VX-400-MACHINE-COMPONENT-IMG02-1-1
VX-400-MACHINE-COMPONENT-IMG02-2

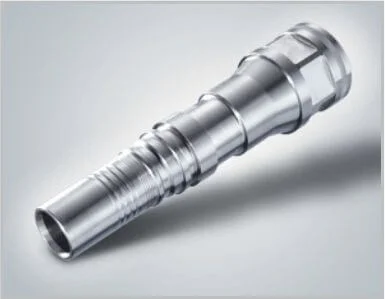

VX-400-MACHINE-COMPONENT-IMG03-2

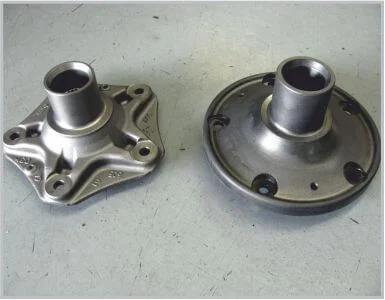

VX-400-SUPER-MACHINE-COMPONENT-IMG02-1-1

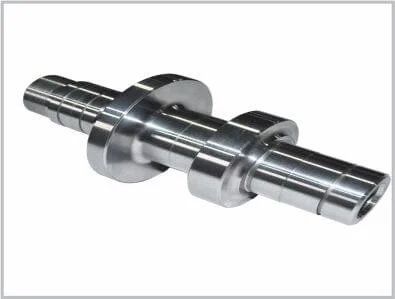

VX-550-SUPER-MACHINE-COMPONENT-IMG04-1-2

Technical Specifications

Capacity

DESCRIPTION UNIT NX 30 NX 30 SUPER NX 40 NX 40 SUPER NX 50 NX 50 PLUS NX 20 MONO NX 10
Swing Over Carriage mm Ø 280 Ø 280 Ø 280 Ø 280 Ø 280 Ø 280 Ø 350 Ø 100
Maximum Turnin Dia.* mm Ø 320 Ø 320 Ø 320 Ø 320 Ø 320 Ø 350 Ø 350 Ø 165
Swing Over Bed mm Ø 500 Ø 500 Ø 500 Ø 500 Ø 500 Ø 500 Ø 500 Ø 300
Maximum Turning Length mm 325 325 425 425 550 500 550 200
Distance Between Center mm 350 350 450 450 570 520 575 -

Slides

DESCRIPTION UNIT NX 30 NX 30 SUPER NX 40 NX 40 SUPER NX 50 NX 50 PLUS NX 20 MONO NX 10
Cross (X-axis) Travel mm 170 170 170 170 170 185 185 360
Longitudinal (Z axis) Travel mm 325 325 425 425 550 550 550 360
Rapid Feed (X axis) m/mm 30 30 30 30 30 30 24 30
Rapid Feed (Z axis) m/mm 30 30 30 30 30 30 24 30

Main Spindle

DESCRIPTION UNIT NX 30 NX 30 SUPER NX 40 NX 40 SUPER NX 50 NX 50 PLUS NX 20 MONO NX 10
Spindle Nose - A2-5 A2-6 A2-5 A2-6 A2-6 A2-6 A2-6 A2-5
Spindle Bore mm Ø 54 Ø 63 Ø 54 Ø 63 Ø 63 Ø 63 Ø 63 Ø 54
Max. Bar Capacity mm Ø 42 Ø 51 Ø 42 Ø 51 Ø 51 Ø 51 Ø 51 Ø 42
Chuck Size mm Ø 165 x 3 Jaw Ø 200 x 3 Jaw Ø 200 x 3 Jaw Ø 200 x 3 Jaw Ø 200 x 3 Jaw Ø 200 x 3 Jaw Ø 200 x 3 Jaw Ø 165 x 3 Jaw
Speed Range rpm 50 - 4000 50 - 3500 50 - 4000 50 - 3500 50 - 3500 50 - 3500 50 - 3500 50 - 4000
Full Power Range rpm 1333 - 4000 1333 - 3500 1333 - 4000 1333 - 3500 1333 - 3500 1333 - 3500 1333 - 3500 1333 - 4000
Spindle Motor (Continues Rating) kw 5.5 / 7.5 7.5 / 11 5.5 / 7.5 7.5 / 11 7.5 / 11 7.5 / 11 7.5 / 11 5.5 / 7.5
Spindle Motor (15min. Rating) kw 5.5 / 7.5 7.5 / 11 5.5 / 7.5 7.5 / 11 7.5 / 11 7.5 / 11 7.5 / 11 5.5 / 7.5

TURRET

DESCRIPTION UNIT NX 30 NX 30 SUPER NX 40 NX 40 SUPER NX 50 NX 50 PLUS NX 20 MONO NX 10
Number of Stations No. 8 8 8 8 8 8 8 5
Tool Size mm 25 x 25 25 x 25 25 x 25 25 x 25 25 x 25 25 x 25 25 x 25 25 x 25
Max. Boring Bar Capacity mm ø 40 ø 40 ø 40 ø 40 ø 40 ø 40 ø 40 ø 32

TALK STOCK

DESCRIPTION UNIT NX 30 NX 30 SUPER NX 40 NX 40 SUPER NX 50 NX 50 PLUS NX 20 MONO NX 10
Quill Tapper - MT 4 MT 4 MT 4 MT 4 MT 4 MT 4 MT 4 -
Dimensions (L x W x H)(Approx.) mm Ø 70 Ø 70 Ø 70 Ø 70 Ø 80 Ø 80 Ø 80 -
Dimensions (L x W x H)(Approx.) mm 80 80 80 80 100 100 100 -

Other Data

DESCRIPTION UNIT NX 30 NX 30 SUPER NX 40 NX 40 SUPER NX 50 NX 50 PLUS NX 20 MONO NX 10
Weight (Approx.) kg. 2900 3000 3000 3100 3100 3100 3900
Dimensions (W x D x H) (Approx.) mm 2225 x 1830 x 1555 2225 x 1830 x 1555 2325 x 1830 x 1695 2325 x 1830 x 1655 2325 x 1830 x 1655 2460 x 1830 x 1555 3090 x 1870 x 1555 2550 x 1560 x 1770

Accuracy

DESCRIPTION UNIT NX 30 NX 30 SUPER NX 40 NX 40 SUPER NX 50 NX 50 PLUS NX 20 MONO NX 10
Positioning Accuracy mm 0.008 0.008 0.008 0.008 0.008 0.008 0.008 0.008
Repeatability mm 0.007 0.007 0.007 0.007 0.007 0.007 0.007 0.007

System

DESCRIPTION UNIT NX 30 NX 30 SUPER NX 40 NX 40 SUPER NX 50 NX 50 PLUS NX 20 MONO NX 10
Macatrol - Turn - I Turn - I Turn - I Turn - I Turn - I Turn - I Turn - I Turn - I
