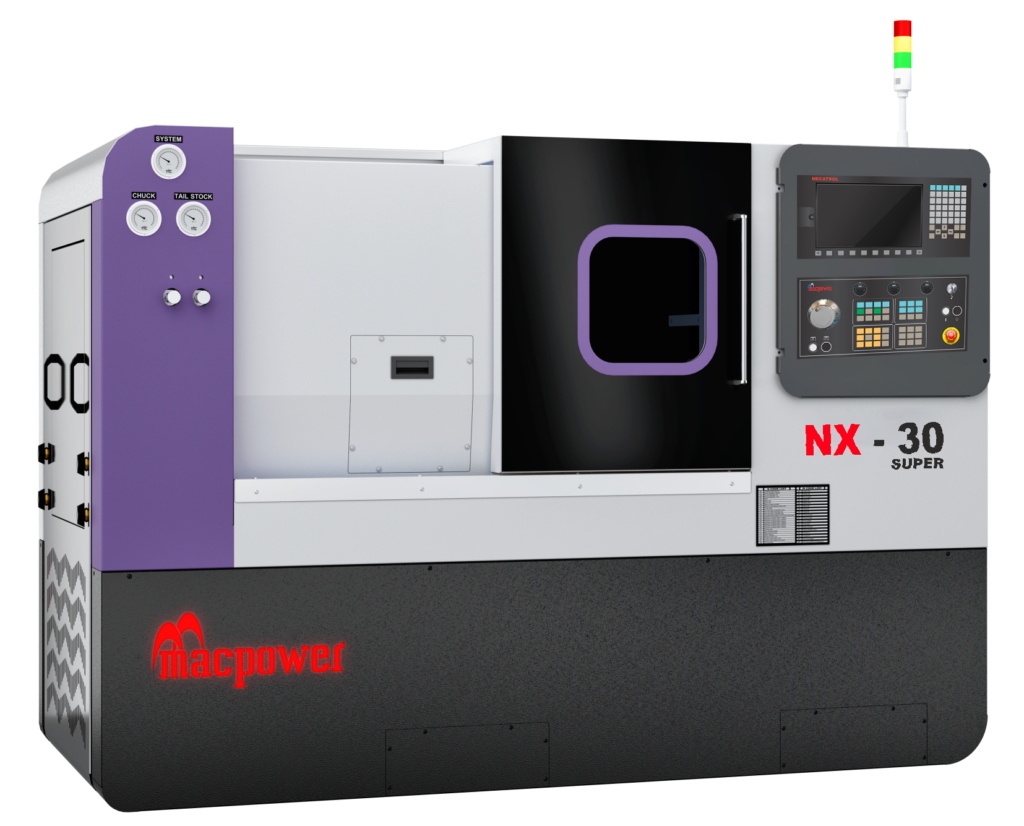

Turning Center
NX 30 SUPER
A higher-capacity turning center with stronger spindle configuration, broader bore capability and practical travel for more demanding component production requirements.
Turning Center
NX 30 SUPER
| SWING OVER CARRIAGE | 280 MM |
|---|---|
| MAX. TURNING DIA* | 320 MM |
| MAX. TURNING LENGTH | 325 MM |
| TRAVEL (X / Z) | 170 / 325 MM |
| RAPID FEED (X / Z) | 30 M/MIN |
| CHUCK SIZE | 200 X 3 MM |
| SPINDLE POWER | 7.5 / 11 |
| SPINDLE BORE | 63 MM |
| SPINDLE NOSE | A2 - 6 |
| WEIGHT (APPROX) | 3000 KG (Approx.) |
