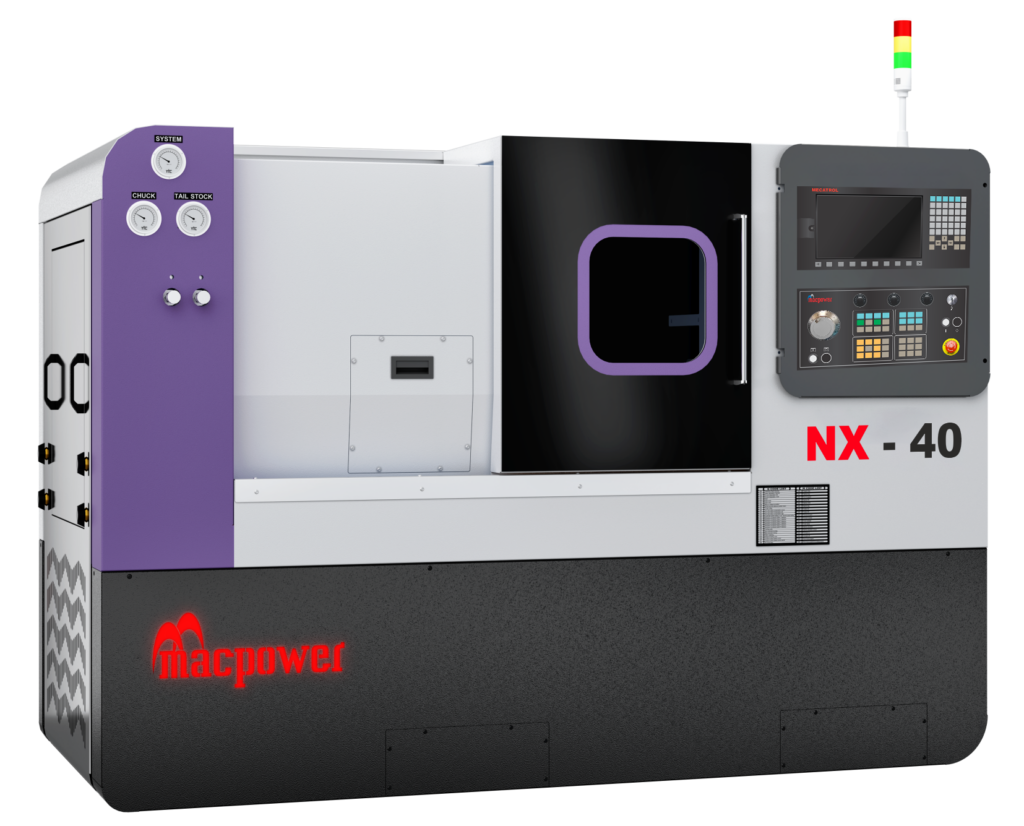

Turning Center
NX 40
A turning center with extended machining length, balanced spindle capability and practical chuck configuration for consistent production of longer components across applications.
Turning Center
NX 40
| SWING OVER CARRIAGE | 280 MM |
|---|---|
| MAX. TURNING DIA* | 320 MM |
| MAX. TURNING LENGTH | 425 MM |
| TRAVEL (X / Z) | 170 / 425 MM |
| RAPID FEED (X / Z) | 30 M/MIN |
| CHUCK SIZE | 200 X 3 MM |
| SPINDLE POWER | 5.5 / 7.5 |
| SPINDLE BORE | 54 MM |
| SPINDLE NOSE | A2 - 5 |
| WEIGHT (APPROX) | 3000 KG (Approx.) |
