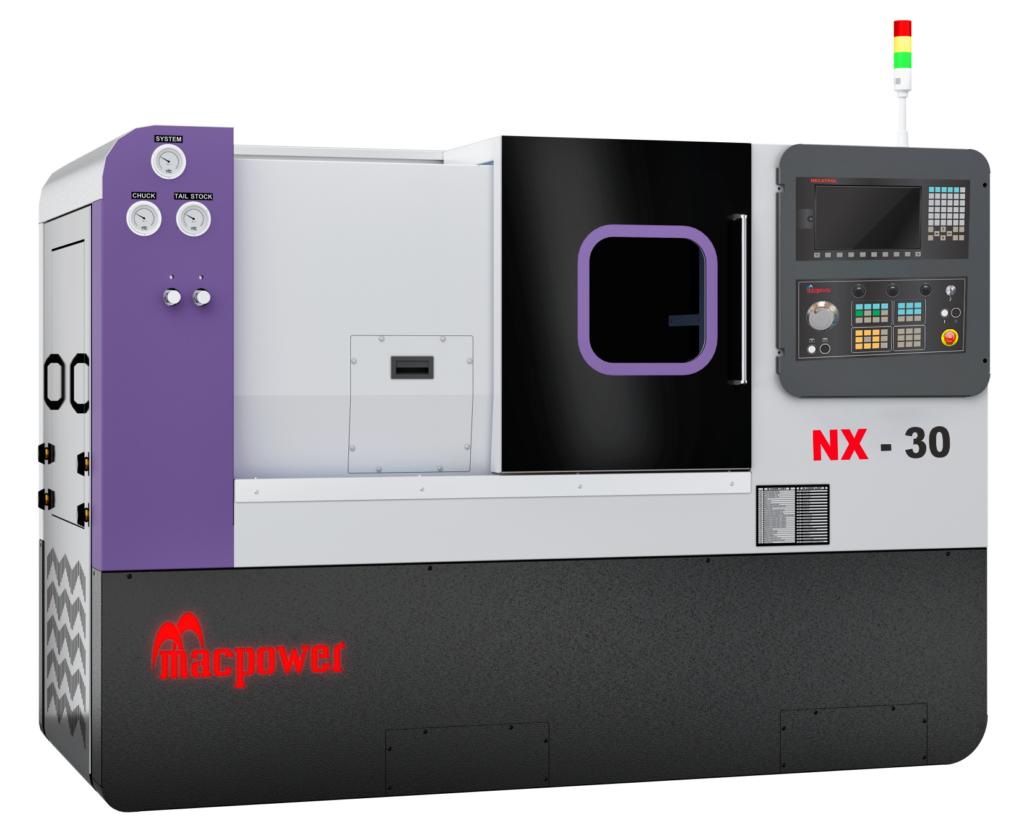

Turning Center
NX 30
A versatile turning center with balanced turning capacity, useful travel and practical spindle capability for consistent production across a range of components.
Turning Center
NX 30
| SWING OVER CARRIAGE | 280 MM |
|---|---|
| MAX. TURNING DIA* | 320 MM |
| MAX. TURNING LENGTH | 325 MM |
| TRAVEL (X / Z) | 170 / 325 MM |
| RAPID FEED (X / Z) | 30 M/MIN |
| CHUCK SIZE | 165 X 3 MM |
| SPINDLE POWER | 5.5 / 7.5 |
| SPINDLE BORE | 54 MM |
| SPINDLE NOSE | A2 - 5 |
| WEIGHT (APPROX) | 2900 KG (Approx.) |
