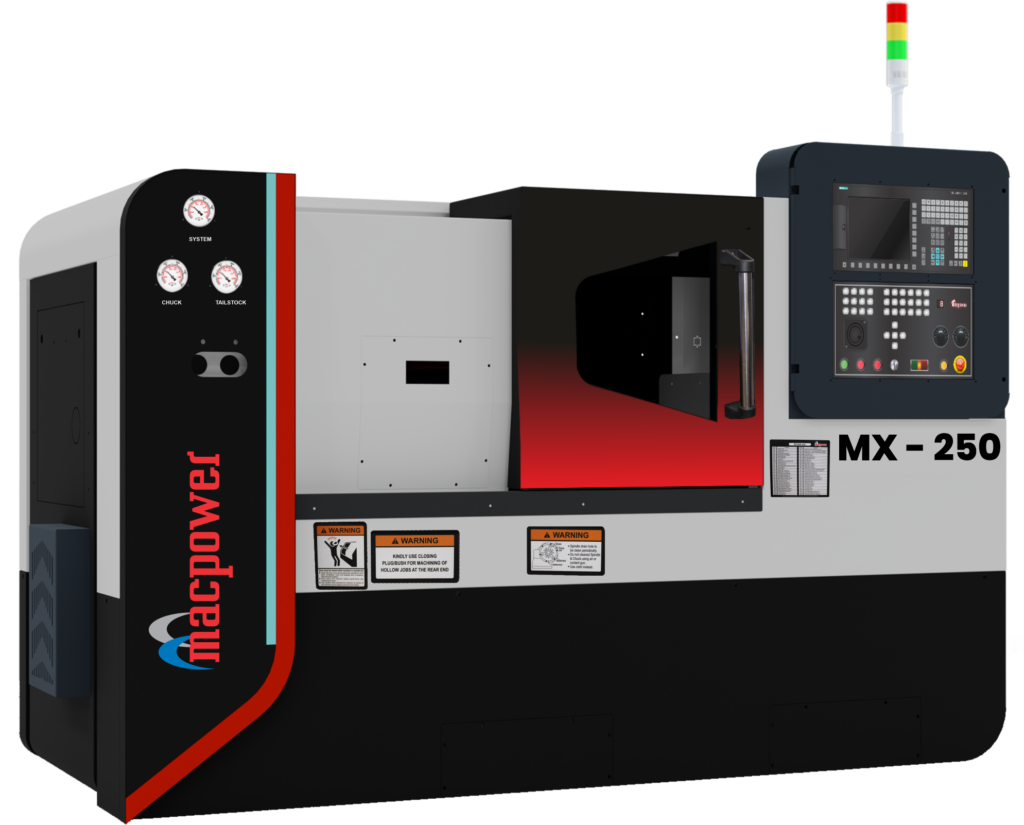

Turning Center
MX Series
Precision-engineered CNC turning centers across 6 categories, serving 27+ industry segments worldwide.
Turning Center
MX Series
In today’s competitive market, you need robust CNC turning centers with un-compromised performance and specifications to produce world class products quickly accurately and with minimum non productive time.
Overview
GX
Structure & Frame
Single piece monoblock structure is made out of grade 25 cast iron for more stability. It is heavily ribbed to provide more rigidity and less distortion during heavy cuts and faster production, with virtually no vibration. Structure also facilitates easy chip disposal. Also the footprint has been reduced to save valuable space at customer’s end.
GX
Carriage Assembly
X and Z Slide are mounted on precise four circuit linear motion blocks with high load carrying capacity, designed to support increased acceleration and deceleration rates as well as cutting pressure.
GX
Guarding
Equipped with the advantage of an ergonomic design. The machine comes with a full guard that enables a clean premise throughout the operation. These feature prevents contamination being spread on to machine slides, switches and other electrical devices.
Standard Accessories
- Roller Guide Ways
- AC Spindle Drive & AC Servo Drive
- Hydraulic Chuck with Actuating Hollow Cylinder
- Hydraulic Unit
- Coolant System
- Centralized Lubrication System
- Axial & Radial Blocks
- Boring Bar Blocks
- Patrol Light
- Foot Switch
Optional Accessories
- Chip Conveyor
- Oil Skimmer
- Bar Feeder
- Steady Rest
- Stabilizer
- Tooled Up Solution
- Hydraulic Collet Chuck
- Tool Probe
- Auto Door
- Work Probe

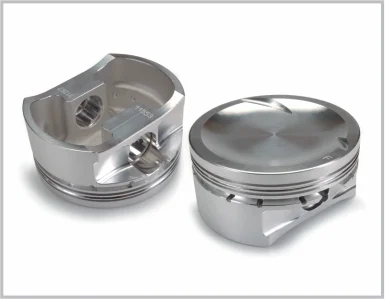

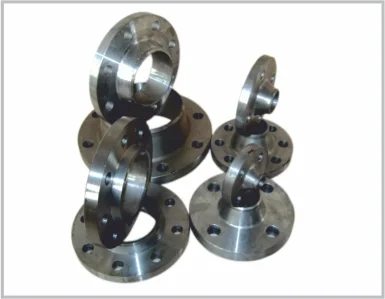

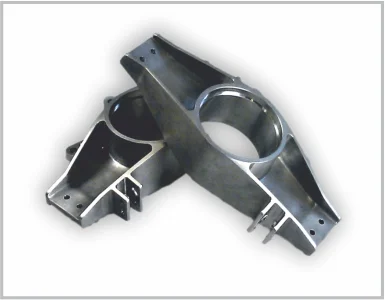

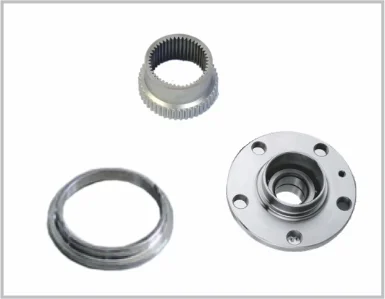

Machine Output
Technical Specifications
Capacity
| DESCRIPTION | UNIT | MX 135 | MX 165 |
|---|---|---|---|
| Standard Turning Dia. | mm | Ø 170 | Ø 170 |
| Maximum Turning Dia.* | mm | Ø 200 | Ø 200 |
| Swing Over Bed | mm | Ø 350 | Ø 350 |
| Maximum Turning Length | mm | 250 | 270 |
| Distance Between Center | mm | 300 | 310 |
Slides
| DESCRIPTION | UNIT | MX 135 | MX 165 |
|---|---|---|---|
| Cross (X axis) Travel | mm | 110 | 110 |
| Longitudinal (Z axis) Travel | mm | 250 | 270 |
| Rapid Feed (X axis) | m/mm | 24 | 24 |
| Rapid Feed (Z axis) | m/mm | 24 | 24 |
Main Spindle
| DESCRIPTION | UNIT | MX 135 | MX 165 |
|---|---|---|---|
| Spindle Nose | - | A2-4 | A2-5 |
| Spindle Bore | mm | Ø 40 | Ø 54 |
| Max. Bar Capacity | m/min | Ø 25 | Ø 42 |
| Chuck Size | mm | Ø 135 x 3 Jaw | Ø 165 x 3 Jaw |
| Speed Range | rpm | 50 – 4000 | 50 – 4000 |
| Full Power Range | rpm | 1000 – 2333 | 1000 – 3000 |
| Spindle Motor (Continues Rating) Spindle Motor (15min. Rating) | KW | 3.7 / 5.5 | 5.5 / 7.5 |
Turret
| DESCRIPTION | UNIT | MX 135 | MX 165 |
|---|---|---|---|
| Type | No. | BTP – 63 | BTP – 63 |
| Number of Stations | No. | 8 | 8 |
| Tool Size | mm | 20 x 20 | 20 x 20 |
| Max. Boring Bar Capacity | mm | Ø 32 | Ø 32 |
Tail Stock
| DESCRIPTION | UNIT | MX 135 | MX 165 |
|---|---|---|---|
| Quill Tapper | - | MT 4 | MT 4 |
| Quill Diameter | mm | Ø 70 | Ø 70 |
| Quill Stroke | mm | 80 | 80 |
Accuracy
| DESCRIPTION | UNIT | MX 135 | MX 165 |
|---|---|---|---|
| Positioning Accuracy | mm | 0.008 | 0.008 |
| Repeatability | mm | 0.007 | 0.007 |
Other Data
| DESCRIPTION | UNIT | MX 135 | MX 165 |
|---|---|---|---|
| Weight (Approx.) | kg | 2300 | 2400 |
| Dimensions (W x D x H)(Approx.) | mm | - | - |
System
| DESCRIPTION | UNIT | MX 135 | MX 165 |
|---|---|---|---|
| Fanuc | - | OI TF PLUS | OI TF PLUS |
| Siemens | - | 828 D | 828 D |
