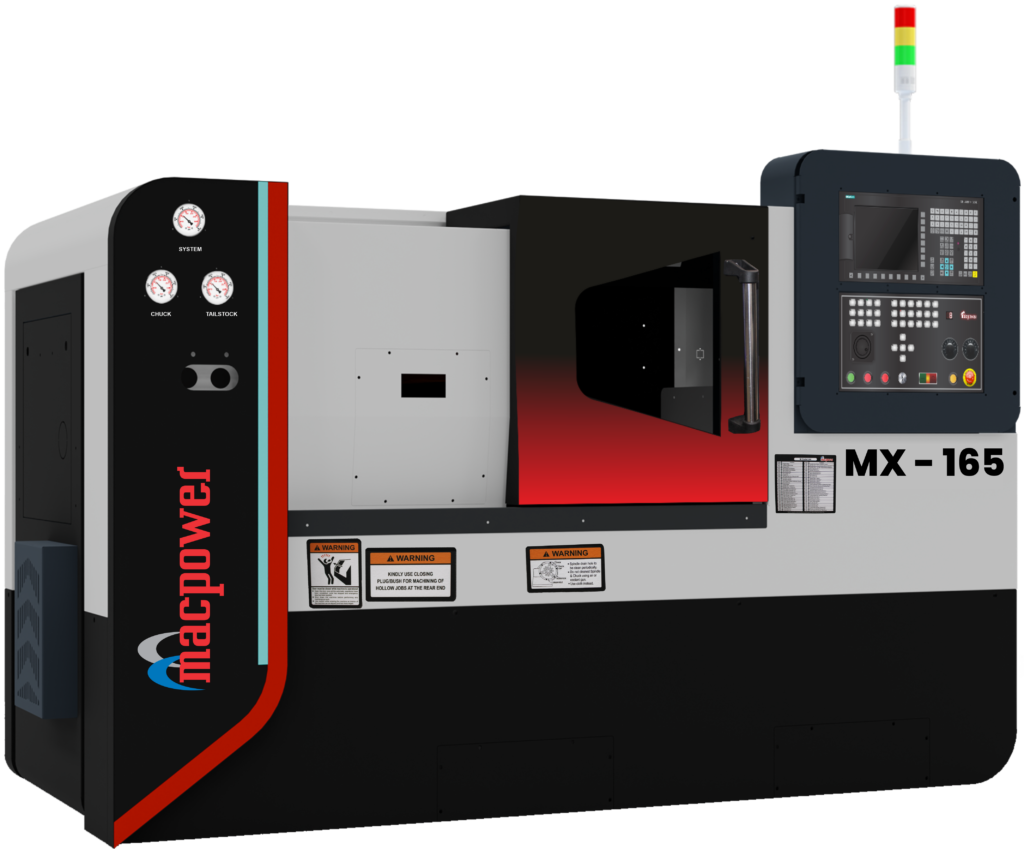

TURNING CENTER
MX 165
Turning Machining Center engineered for precise, efficient production with a standard turning diameter of Ø170 mm, maximum turning diameter of Ø200 mm and maximum turning length of 270 mm.
TURNING CENTER
MX 165
| SWING OVER BED | 350 MM |
|---|---|
| MAX. TURNING DIA | 200 MM |
| MAX. TURNING LENGTH | 270 MM |
| TRAVEL (X / Z) | 110 / 270 MM |
| RAPID FEED (X / Z) | 24 M/MIN |
| SPINDLE SPEED RANGE | 50 - 4000 RPM |
| SPINDLE MOTOR | 5.5 / 7.5 kW |
| SPINDLE BORE | 54 MM |
| SPINDLE NOSE | A2 - 5 |
| WEIGHT (APPROX) | 2400 KG |
TURNING CENTER
MX 165
MX 165 is a compact Turning Machining Center developed for precise, stable and productive machining. It offers a standard turning diameter of Ø170 mm, a maximum turning diameter of Ø200 mm and a swing over bed of Ø350 mm, with a maximum turning length of 270 mm.
The machine provides 110 mm X-axis travel and 270 mm Z-axis travel, with rapid feed rates of 24 m/min on both axes. Its A2-5 spindle features a Ø54 mm spindle bore, Ø42 mm maximum bar capacity and spindle speeds from 50 to 4000 RPM for versatile turning operations.
Equipped with an HTP-63 turret with 8 stations, 20 × 20 mm tool size and up to Ø32 mm boring bar capacity, the MX 165 supports accurate, repeatable production. It also features an MT4 tailstock, with positioning accuracy of 0.008 mm and repeatability of 0.007 mm.
