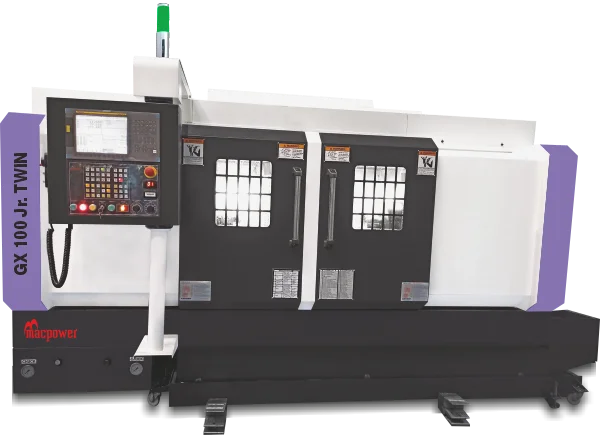

Turning Center
TWIN Series
Dual-spindle CNC turning centers engineered for continuous, high-productivity machining. Deliver faster cycle times, synchronized operations, and consistent precision for high-volume manufacturing across demanding industries.
Turning Center
Twin Series
In today’s competitive market, you need robust CNC turning centers with uncompromised performance and specifications to produce world class products quickly accurately and with minimum non productive time.
Overview
TW
Rigid & Massive Structure
Single piece monoblock structure is made out of grade 25 cast iron for more stability. It is heavily ribbed to provide more rigidity and less distortion during heavy cuts and faster production, with virtually no vibration. Structure also facilitate easy chip disposal. Also the footprint has been reduced to save valuable space at customer’s end.
TW
Linear Tooling
Linear Tooling helps in faster production by reducing overall cycle time thereby improving productivity at large and helps in reducing cost per component for the customer.
TW
Advantages
1. No idle time Resulting in higher productivity.
2. Two setup available on one machine one half of a job can be completed on one spindle while the second half be completed on the other spindle.
3. Macpower CNC used liner tooling system to reduce machining time because of faster positioning of tools compared to turret.
4. Less manpower required & space taken in similar to be one machine. 5. Machine working in one spindle same time operator change completed job from second spindle
2. Two setup available on one machine one half of a job can be completed on one spindle while the second half be completed on the other spindle.
3. Macpower CNC used liner tooling system to reduce machining time because of faster positioning of tools compared to turret.
4. Less manpower required & space taken in similar to be one machine. 5. Machine working in one spindle same time operator change completed job from second spindle
TW
Guarding
Equipped with the advantage of an ergonomic design, the machine comes with a full guard that ensures a clean premise during operation. This feature prevents contamination from spreading onto the machine slides, switches, and other electrical devices. The newly developed guarding is designed to support the structure effectively, reducing the overall footprint of the machine.
Precise Roller Guideways
Precise Roller Guideways
Precise Roller Guideways
Precise Roller Guideways
Precise Roller Guideways
Standard Accessories
- Roller Guide Ways
- AC Spindle Drive & AC Servo Drive
- Hydraulic Chuck with Actuating Hollow Cylinder
- Hydraulic Unit
- Coolant System
- Centralized Lubrication System
- Axial & Radial Blocks
- Boring Bar Blocks
- Patrol Light
- Foot Switch
Optional Accessories
- Chip Conveyor
- Bar Feeder
- Stabilizer
- Hydraulic Collet Chuck
- Auto Door
- Oil Skimmer
- Steady Rest
- Tooled Up Solution
- Tool Probe
- Work Probe

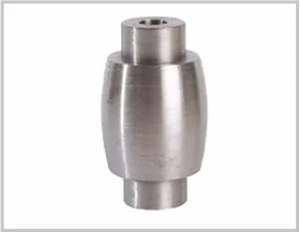

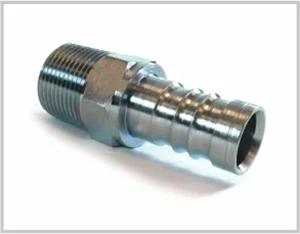

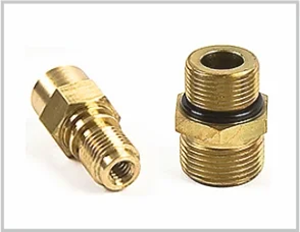

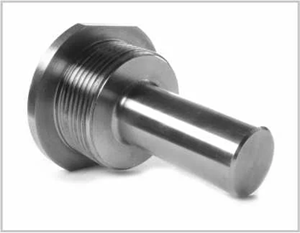

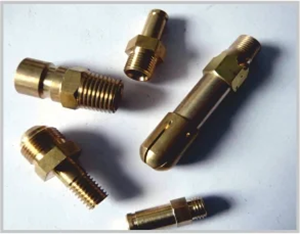

Machine Output
Technical Specifications
Capacity
| DESCRIPTION | UNIT | GX 100 Jr. Twin | GX 100 Twin |
|---|---|---|---|
| Std. Turning Dia. | mm | 90 | 100 |
| Max. Turning Dia. | mm | 165 | 200 |
| Swing Over Bed | mm | 180 | 375 |
| Max. Turning Length | mm | 125 | 140 |
| Dist. Between Chuck to Chuck | mm | 700 | 800 |
Slides
| DESCRIPTION | UNIT | GX 100 Jr. Twin | GX 100 Twin |
|---|---|---|---|
| Cross (X axis) Travel | mm | 250 | 360 |
| Longitudinal (Z axis) Travel | mm | 400 | 450 |
| Rapid Feed (X axes) | m/mm | 24 | 24 |
Main Spindle
| DESCRIPTION | UNIT | GX 100 Jr. Twin | GX 100 Twin |
|---|---|---|---|
| Spindle Motor (Fanuc) | kW | (Siemens) 3.7/5.5 | (Fanuc) 5.5/7.5 |
| Spindle Bore | mm | 40 | 54 |
| Spindle Nose | - | A2-4 | A2-5 |
| Spindle Bore | mm | 40 | 54 |
| Max. Bar Capacity | mm | 25 | 42 |
| Chuck Size | mm | 135 | 165 |
| Speed Range | rpm | 50 - 5000 | 50 - 4000 |
| Full Power Range | rpm | 1000 - 4666 | 1000 - 3000 |
Tooling Arrangement
| DESCRIPTION | UNIT | GX 100 Jr. Twin | GX 100 Twin |
|---|---|---|---|
| No. of Tools | No. | 10 | 10 |
| Tool Size | mm | 20 x 20 | 25 x 25 |
| Max. Boring Bar Capacity | mm | 25 | 32 |
Other Data
| DESCRIPTION | UNIT | GX 100 Jr. Twin | GX 100 Twin |
|---|---|---|---|
| Weight (Approx) | Kg. | 3800 | 4450 |
| Machine Dimensions (WxDxH) (Approx) | mm | 3200x1990x1745 | 3490x1980x1965 |
Accuracy (AS PER JIS)
| DESCRIPTION | UNIT | GX 100 Jr. Twin | GX 100 Twin |
|---|---|---|---|
| Positioning Accuracy | mm | 0.008 | 0.008 |
| Repeatability | mm | 0.007 | 0.007 |
System
| DESCRIPTION | UNIT | GX-100 JUNIOR | GX-100 SUPER | GX-200 SUPER |
|---|---|---|---|---|
| Fanuc | - | OI TF PLUS | OI TF PLUS | |
| Siemens | - | 828D | 828D |
