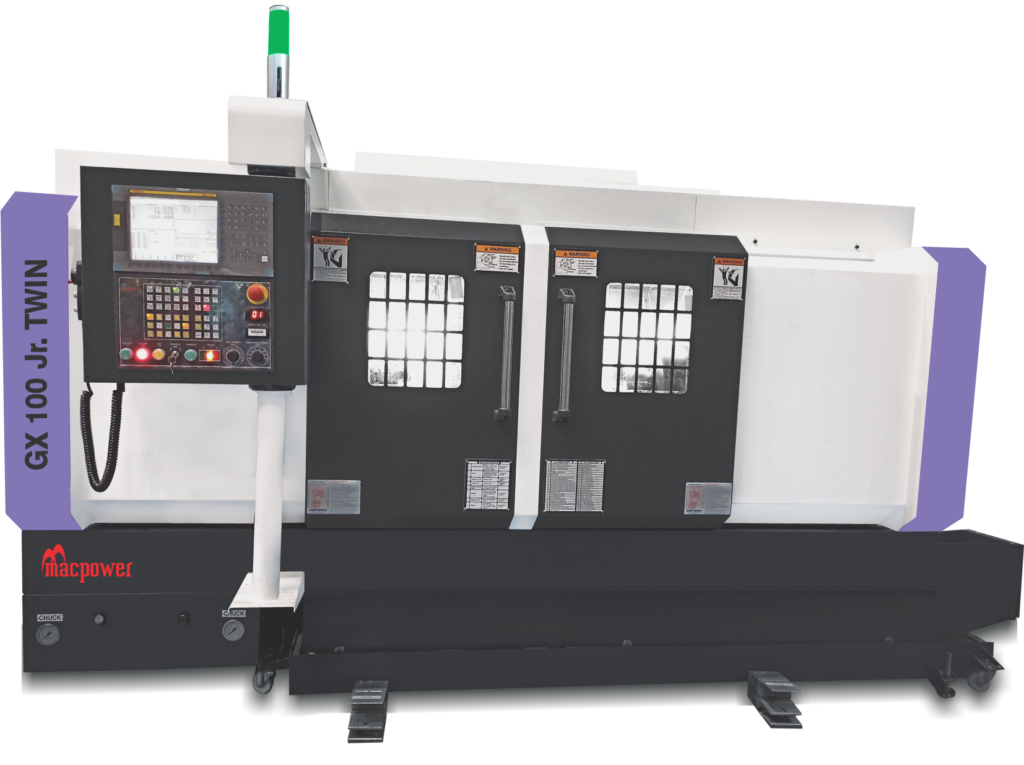

Turning Center
GX 100 JUNIOR TWIN
Compact twin-spindle turning center engineered for precise, efficient machining with a standard turning diameter of Ø90 mm, maximum turning diameter of Ø165 mm and maximum turning length of 125 mm.
Turning Center
GX 100 JUNIOR TWIN
| STD. TURNING DIA | 90 MM |
|---|---|
| MAX. TURNING DIA | 165 MM |
| MAX. TURNING LENGTH | 125 MM |
| TRAVEL (X / Z) | 250 / 390 MM |
| RAPID FEED (X / Z) | 24 M/MIN |
| CHUCK SIZE | 135 MM |
| SPINDLE POWER (SIEMENS) | 3.7 / 5.5 KW |
| SPINDLE BORE | 40 MM |
| SPINDLE NOSE | A2 - 4 |
| WEIGHT (APPROX) | 3800 KG |
Turning Center
GX 100 JUNIOR TWIN
GX 100 JR. TWIN is a compact turning center designed for precise, stable and productive machining. It offers a standard turning diameter of Ø90 mm, a maximum turning diameter of Ø165 mm and a swing over bed of Ø180 mm, with a maximum turning length of 125 mm.
The machine provides 250 mm X-axis travel and 390 mm Z-axis travel, with rapid feed rates of 24 m/min on both axes. Its A2-4 spindle offers a Ø40 mm spindle bore, Ø25 mm bar capacity and spindle speeds from 50 to 5000 RPM for versatile turning operations.
Equipped with a 10-tool arrangement, 20 × 20 mm tool size and up to Ø25 mm boring bar capacity, the GX 100 JR. TWIN is built for accurate, repeatable production. Positioning accuracy is 0.008 mm with repeatability of 0.007 mm, supporting consistent machining performance.
