Turn Mill Center
TURN MILL SERIES
Our Turn Mill Centers combine high-performance turning and multi-axis milling in a single, rigid platform. Built for complex, precision-critical components, they reduce setups, improve cycle times, and deliver stable accuracy across demanding production environments.
Turn Mill Center
Turn Mill Series
Our new generation Turn Mill Center are incorporate a wide range of enhancements and available with a myriad of options to choose from. The modular machine portfolio and sophisticated engineering knowledge that enables us to deliver optimized solutions with optimal performance that make Macpower TMCs better than ever before.

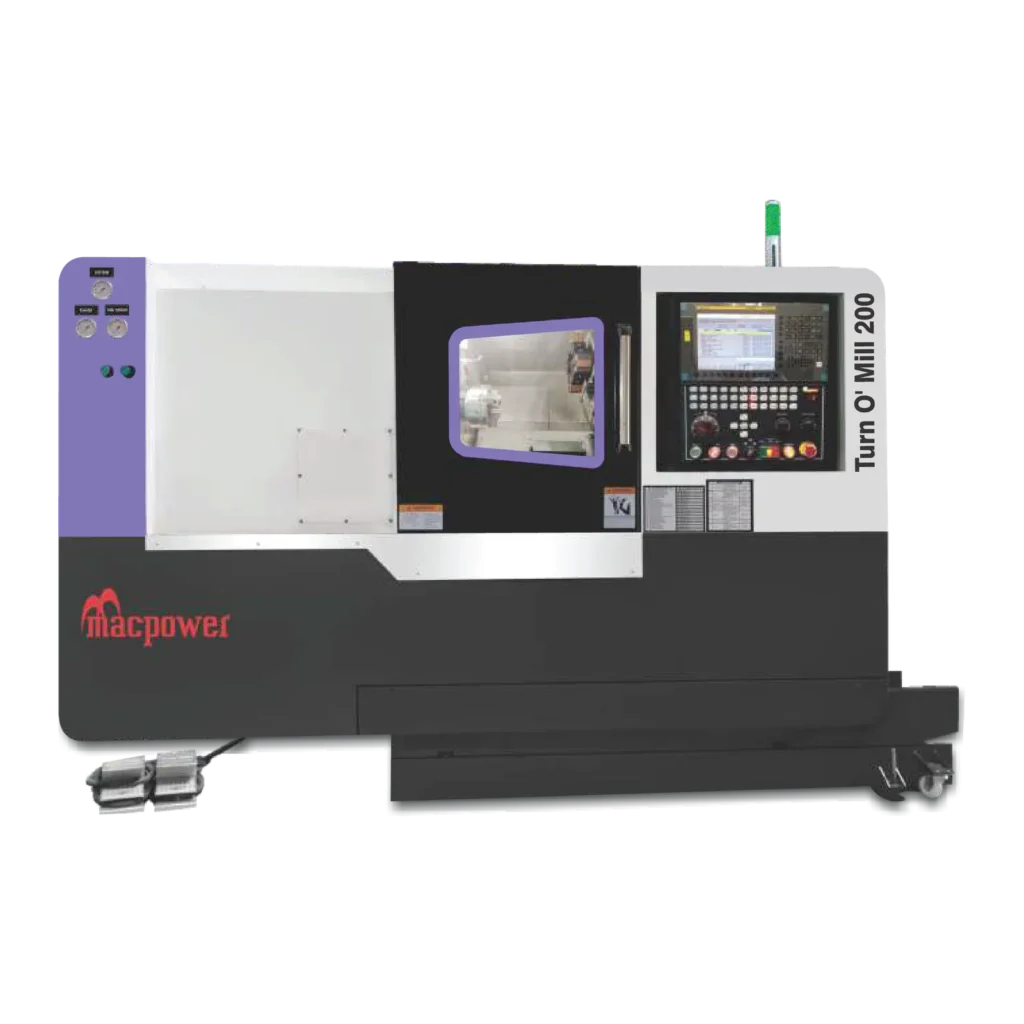

Turn O’ Mill 200
STANDARD
Turn O’ Mill 300
STANDARD

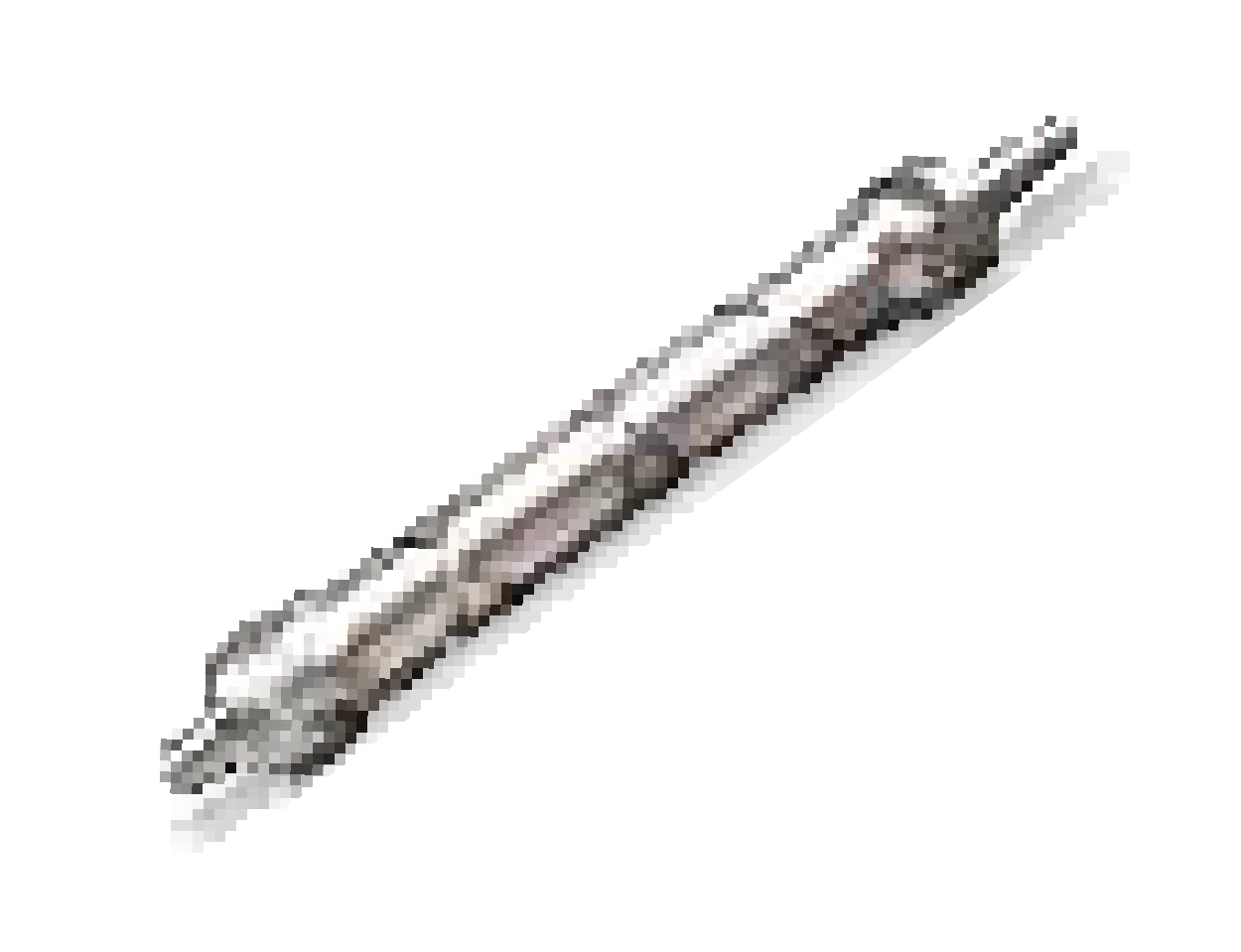

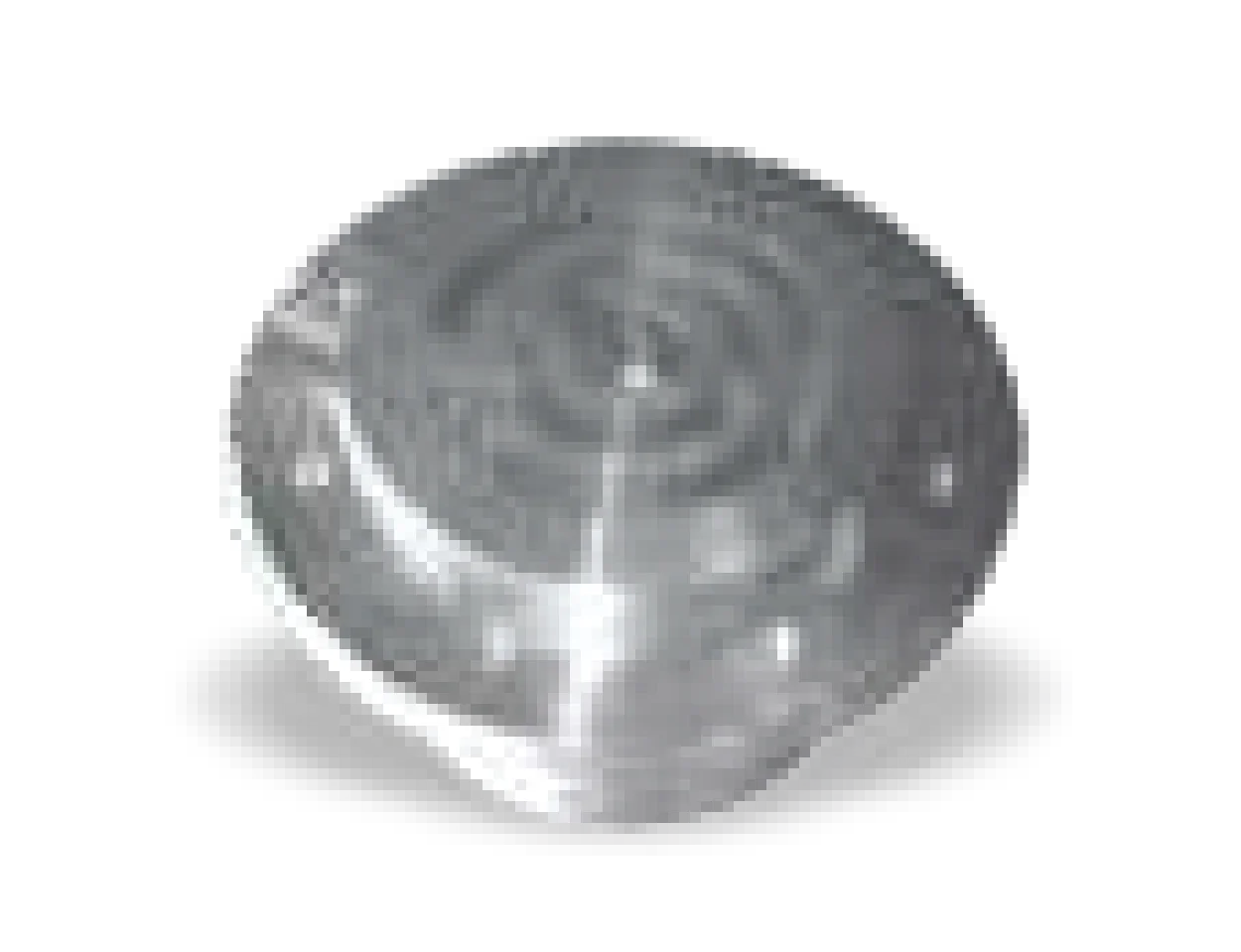

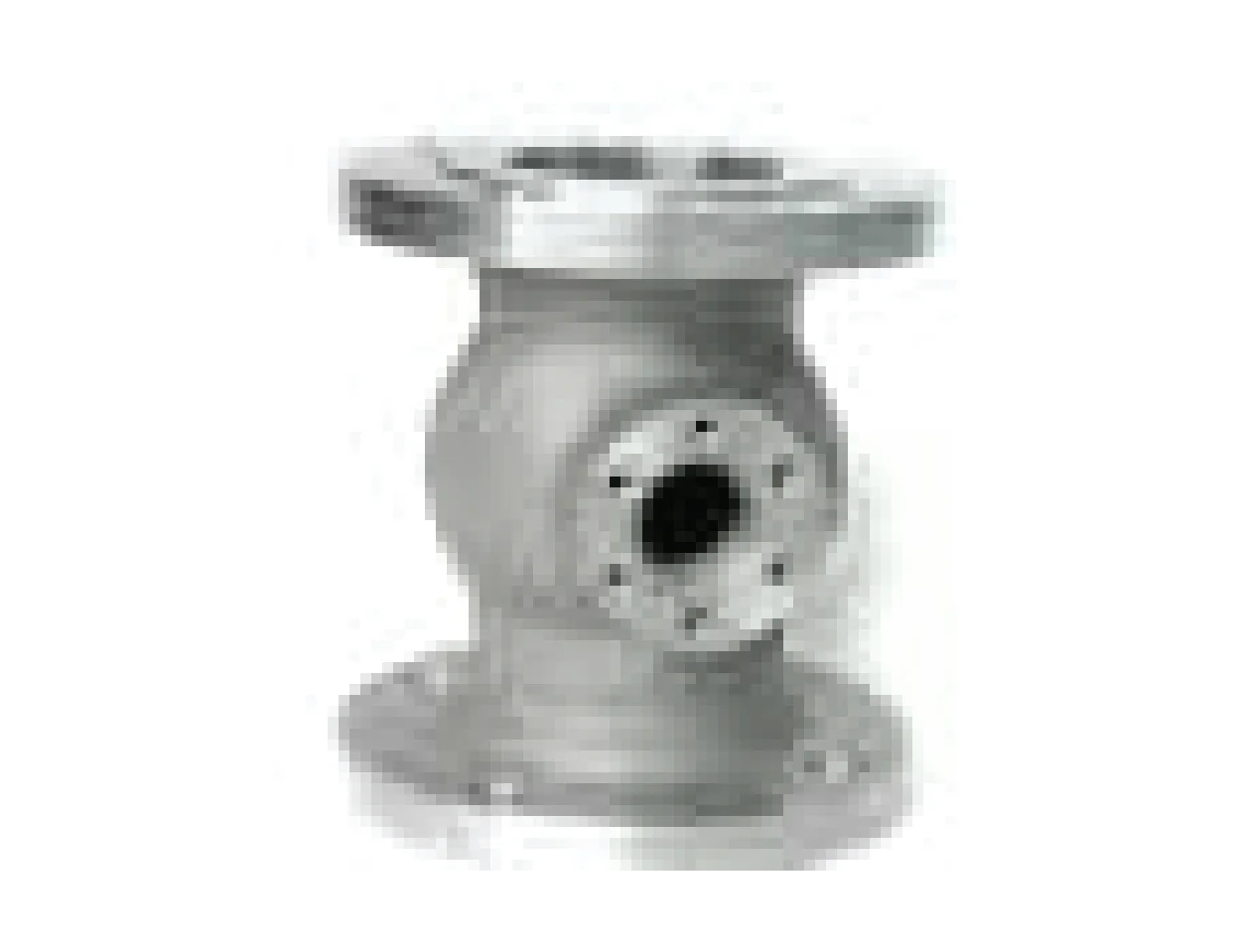

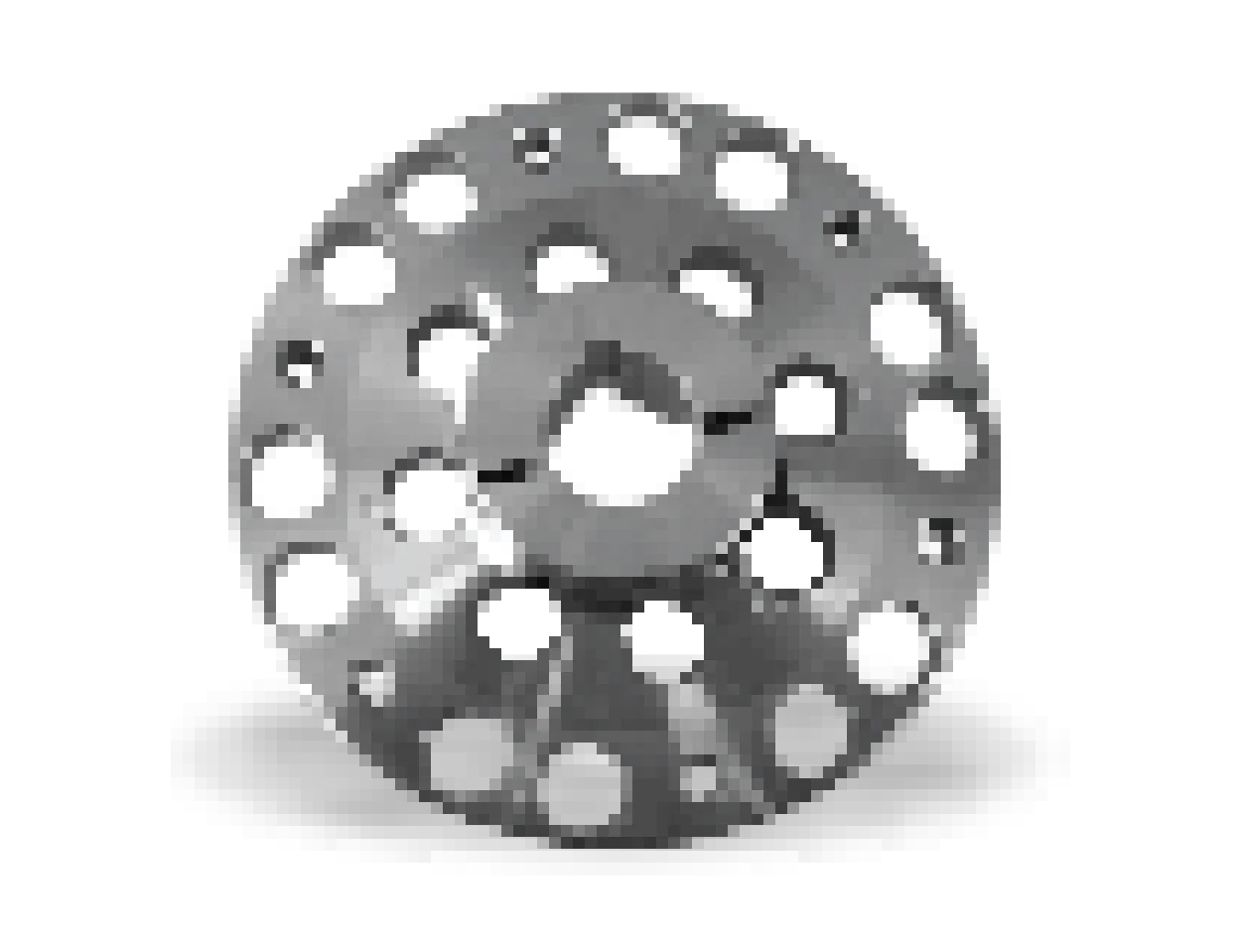

Machine Output
Technical Specifications
Capacity
| DESCRIPTION | UNIT | Turn O' Mill 200 | Turn O' Mill 300 |
|---|---|---|---|
| Standard Turning Dia. | mm | 200 | 300 |
| Maximum Turning Dia.* | mm | 250 | 350 |
| Swing Over Bed | mm | 450 | 550 |
| Maximum Turning Length | mm | 500 | 500 |
| Dist. Between Center | mm | 600 | 600 |
Slides
| DESCRIPTION | UNIT | Turn O' Mill 200 | Turn O' Mill 300 |
|---|---|---|---|
| Cross (X axis) Travel | mm | 225 | 275 |
| Longitudinal (Z axis) Travel | mm | 525 | 525 |
| Rapid Feed (X & Z axis) | m/mm | 24 | 24 |
Main Spindle
| DESCRIPTION | UNIT | Turn O' Mill 200 | Turn O' Mill 300 |
|---|---|---|---|
| Spindle Motor (Continuous Rating) | kW | 7.5 | 11/15 "P" Series |
| (15min. Rating) (Fanuc) | kW | 11 | - |
| Spindle Bore | mm | 63 | 75 |
| Spindle Nose | - | A2-6 | A2-8 |
| Max. Bar Capacity | mm | 51 | 50 |
| Chuck Size | mm | 200 | 300 |
| Speed Range | rpm | 50 - 3000 | 50 - 2500 |
| Full Power Speed Range | rpm | 1000 - 3000 | 1000 - 1500 |
TURRET
| DESCRIPTION | UNIT | Turn O' Mill 200 | Turn O' Mill 300 |
|---|---|---|---|
| No. of Station | - | 12 | 12 |
| No. of Driven Station | - | 12 | 12 |
| Max. Boring Bar Capacity | mm | 32 | 40 |
| Live Tool Holder | - | VDI 30 | VDI 40 |
| Max. Live Tool Speed | rpm | 5000 | 5000 |
| Live Motor Power | kW | 4.1 | 4.1 |
Tail Stock
| DESCRIPTION | UNIT | Turn O' Mill 200 | Turn O' Mill 300 |
|---|---|---|---|
| Quill Diameter | mm | 80 | 80 |
| Quill Stroke | mm | 100 | 100 |
Accuracy
| DESCRIPTION | UNIT | Turn O' Mill 200 | Turn O' Mill 300 |
|---|---|---|---|
| Positioning Accuracy | mm | 0.008 | 0.008 |
| Repeatability | mm | 0.007 | 0.007 |
Other Data
| DESCRIPTION | UNIT | Turn O' Mill 200 | Turn O' Mill 300 |
|---|---|---|---|
| Weight (Approx) | Kg | 4000 | 4500 |
| Machine Dimensions (WxDxH) mm 2500 x 2050 x 2000 (Approx) | mm | 2500 x 2050 x 2000 | 2500 x 2150 x 2100 |
System
| DESCRIPTION | UNIT | Turn O' Mill 200 | Turn O' Mill 300 |
|---|---|---|---|
| Fanuc | - | Oi TF | Oi TF |
| Siemens | - | 828D | 828D |
| Mitsubishi | - | E80 | E80 |
| Full Power Speed Range | rpm | 1000 - 3000 | 1000 - 1500 |
