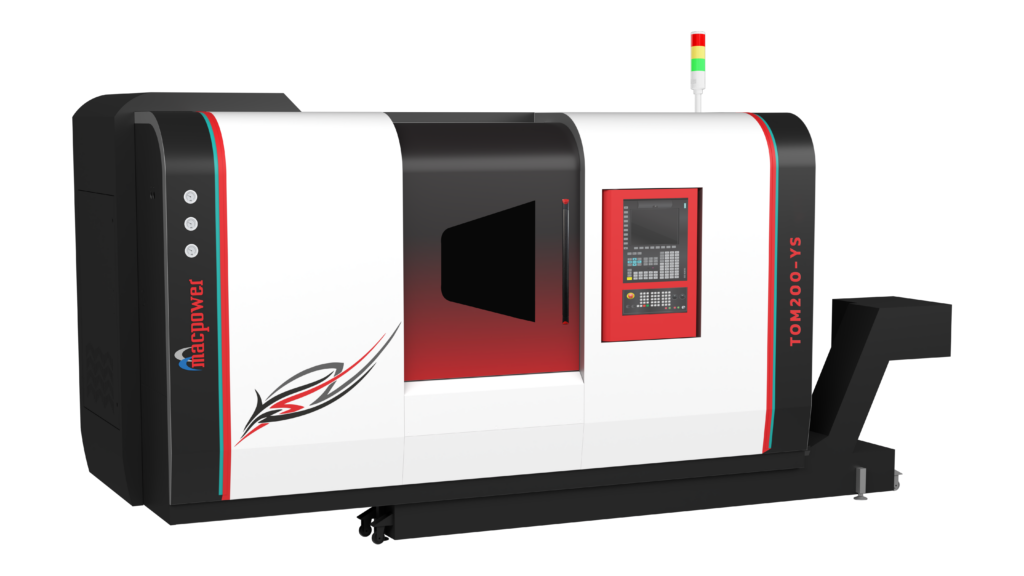

Turning Center
Turn O' Mill 200 YS
Advanced, multi-functional turn-mill performance engineered for precise, complex machining with main spindle, sub-spindle and Y-axis capability.
Turning Center
TURN O' MILL 200 YS
| MAX. TURNING DIA | 350 MM |
|---|---|
| MAX. TURNING LENGTH | 510 MM |
| TRAVEL (X / Z) | 650 / 280 MM |
| RAPID FEED (X / Y / Z / W) | 24 / 12 / 24 / 16 M/MIN. |
| CHUCK DIA | 200 MM |
| SUB SPINDLE CHUCK DIA | 165 MM |
| SPINDLE POWER | 9/13.5 KW |
| SUB SPINDLE MOTOR POWER | 11/16.5 KW |
| MAX. BORING BAR DIA | 40 MM |
| SPINDLE NOSE | A2 – 6 |
| SUB SPINDLE NOSE | A2 - 5 |
| TOOLING | BMT 55 |
| WEIGHT (APPROX) | 6000 KG (APPROX) |
