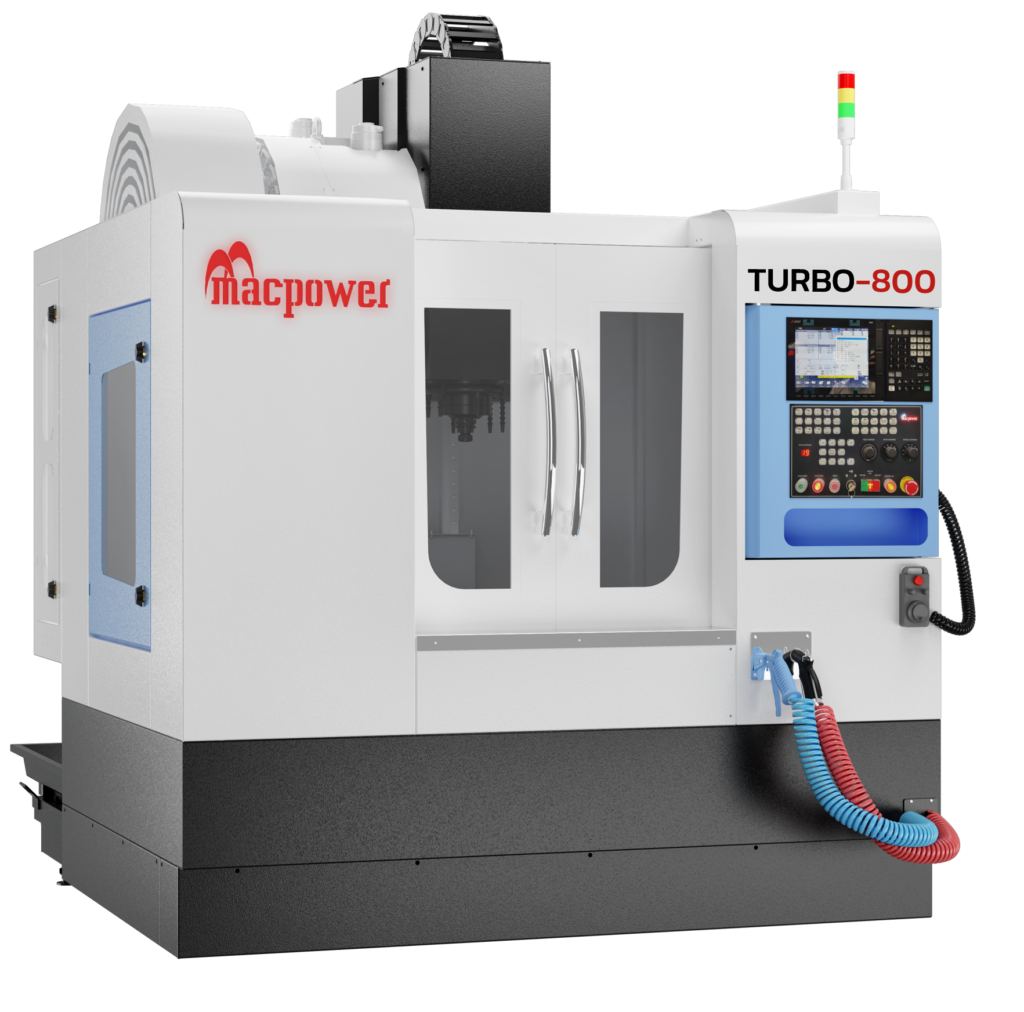

VMC Machine
TURBO 800
High-performance machining center engineered for precise, efficient production with 800 × 500 × 500 mm axis travel and a robust 1000 × 500 mm table platform.
VMC MAchine
TURBO 800
| TABLE SIZE | 1000x500 MM |
|---|---|
| AXIS STROKE (X / Y / Z) | 800 / 500 / 500 MM |
| RAPID X/Y/Z AXIS | 24 / 24 / 24 M/MIN |
| LOAD CAPACITY | 500 KG |
| SPINDLE | BT 40 - |
| RATED POWER | 7.5 / 11 KW |
| WEIGHT (APPROX) | 4600 KG |
| DIMENSIONS (APPROX) (WXDXH) | 2602x2842x2878 MM |
| MITSUBISHI | M80B - |
| FANUC | OI MF PLUS - |
| SIEMENS | 828D - |
VMC MAchine
TURBO 800
TURBO 800 is a high-performance machining center engineered for precise, stable and efficient production. With X, Y and Z travels of 800 mm, 500 mm and 500 mm, it offers a larger machining range for demanding industrial components.
The machine features a 1000 × 500 mm table with a maximum safe load of 500 kg, providing a rigid, dependable platform for larger workpieces. Its extended work area supports productive machining across a broad range of applications.
Equipped with a BT40 spindle, spindle speeds from 80 to 8000 RPM and cutting feed rates up to 10,000 mm/min, the TURBO 800 delivers strong, reliable machining performance. A 20-tool twin-arm automatic tool changer with random tool selection further improves speed and production efficiency.
