VMC Machine
TURBO 700
High-performance machining center engineered for precise, efficient production with 700 × 450 × 500 mm axis travel and a robust 850 × 400 mm table platform.
VMC MAchine
TURBO 700
| TABLE SIZE | 850x400 MM |
|---|---|
| AXIS STROKE (X / Y / Z) | 700 / 450 / 500 MM |
| RAPID X/Y/Z AXIS | 24 / 24 / 24 M/MIN |
| LOAD CAPACITY | 400 KG |
| SPINDLE | BT 40 - |
| RATED POWER | 5.5 / 7.5 KW |
| WEIGHT (APPROX) | 3400 KG |
| DIMENSIONS (APPROX) (WXDXH) | 2120x2690x2615 MM |
| MITSUBISHI | M80B - |
| FANUC | OI MF PLUS - |
| SIEMENS | 828D - |
VMC MAchine
TURBO 700

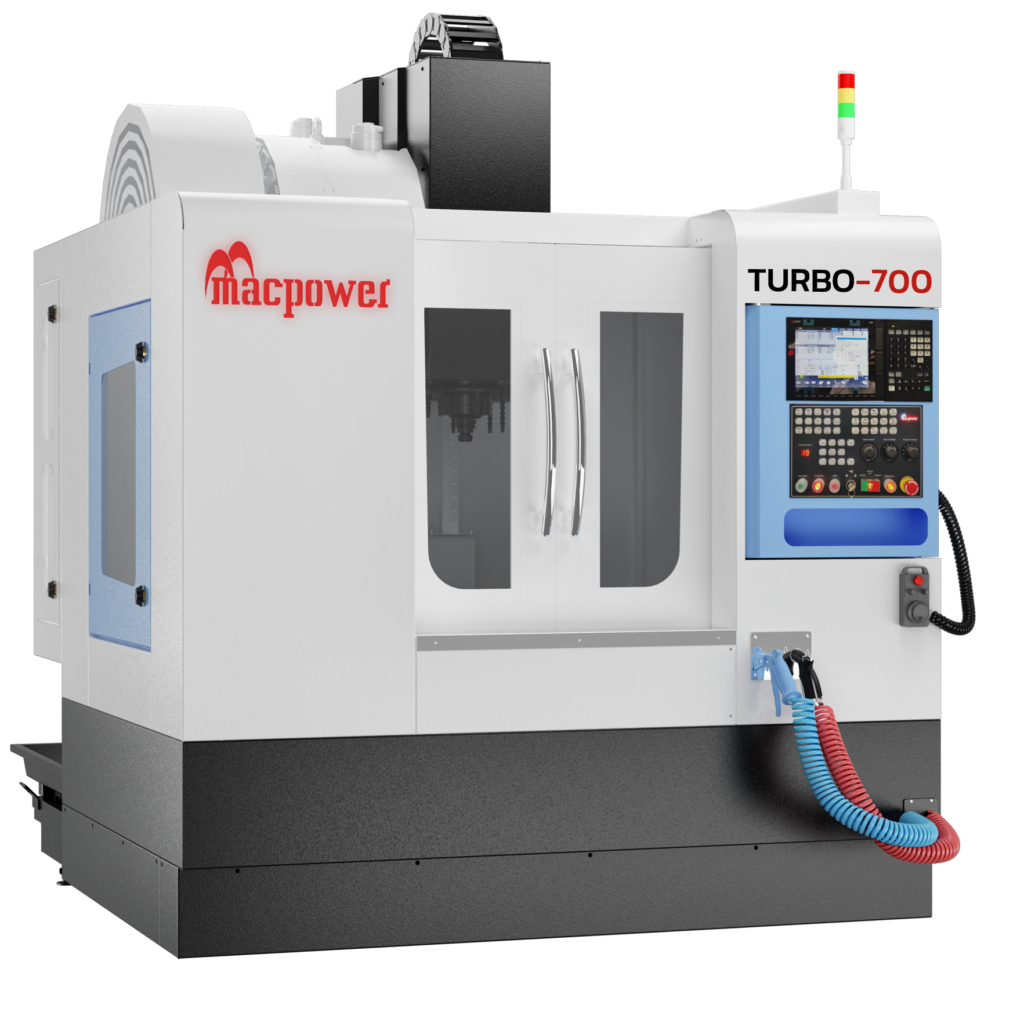

TURBO 700 is a high-performance machining center engineered for precise, stable and efficient production. With X, Y and Z travels of 700 mm, 450 mm and 500 mm, it offers an extended machining range for a variety of industrial components.
The machine features an 850 × 400 mm table with a maximum safe load of 400 kg, providing a rigid, dependable platform for consistent machining. Its larger work area supports productive applications that require greater component handling capacity.
Equipped with a BT40 spindle, spindle speeds from 80 to 8000 RPM and cutting feed rates up to 10,000 mm/min, the TURBO 700 delivers fast, reliable machining performance. A 20-tool arm-type automatic tool changer with random bi-directional selection further improves operational efficiency.
