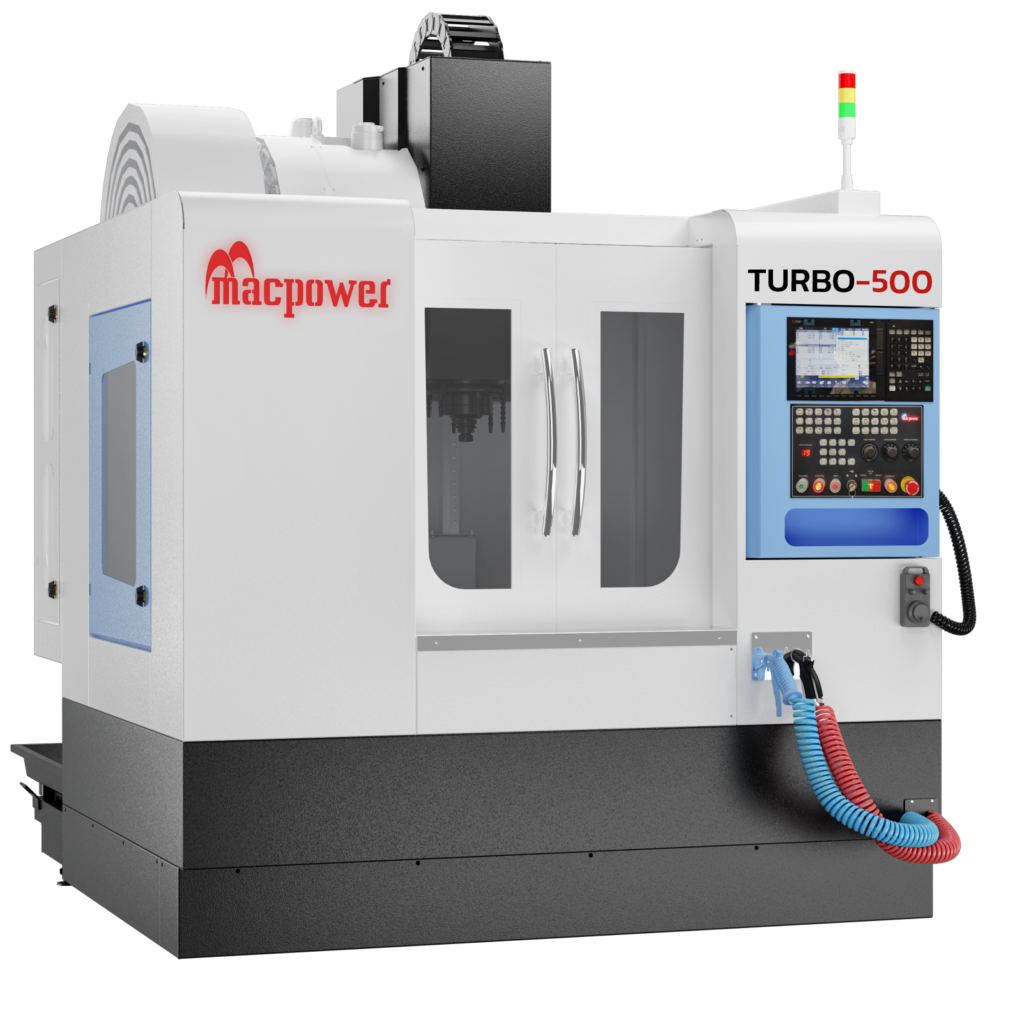

VMC Machine
TURBO 500
Compact, high-performance machining center engineered for precise and efficient production with 500 × 450 × 400 mm axis travel and a robust 650 × 400 mm table platform.
VMC MAchine
TURBO 500
| TABLE SIZE | 650x400 MM |
|---|---|
| AXIS STROKE (X / Y / Z) | 500 / 450 / 400 MM |
| RAPID X/Y/Z AXIS | 24 / 24 / 24 M/MIN |
| LOAD CAPACITY | 350 KG |
| SPINDLE | BT 40 - |
| RATED POWER | 5.5 / 7.5 KW |
| WEIGHT (APPROX) | 2800 KG |
| DIMENSIONS (APPROX) (WXDXH) | 1750x2620x2520 MM |
| MITSUBISHI | M80B - |
| FANUC | OI MF PLUS - |
| SIEMENS | 828D - |
VMC MAchine
TURBO 500
TURBO 500 is a compact, high-performance machining center engineered for precise, stable and efficient production. With X, Y and Z travels of 500 mm, 450 mm and 400 mm, it provides a versatile machining range for a wide variety of industrial components.
The machine features a 650 × 400 mm table with a maximum safe load of 350 kg, offering a rigid, reliable platform for consistent machining. Its balanced construction and compact footprint make it suitable for productive shop-floor applications.
Equipped with a BT40 spindle, spindle speeds from 80 to 8000 RPM and cutting feed rates up to 10,000 mm/min, the TURBO 500 delivers fast, dependable machining performance. A 20-tool arm-type automatic tool changer with random bi-directional tool selection further supports efficient production.
