VMC Machine
TURBO 400
Compact machining center engineered for precise, efficient performance with 400 × 350 × 400 mm axis travel and a robust 630 × 300 mm table platform.
VMC MAchine
TURBO 400
| TABLE SIZE | 630x300 MM |
|---|---|
| AXIS STROKE (X / Y / Z) | 400 / 350 / 400 MM |
| RAPID X/Y/Z AXIS | 24 / 24 / 24 M/MIN |
| LOAD CAPACITY | 300 KG |
| SPINDLE | BT 40 - |
| RATED POWER | 5.5 / 7.5 KW |
| WEIGHT (APPROX) | 2000 KG |
| DIMENSIONS (APPROX) (WXDXH) | 1650x2618x2450 MM |
| MITSUBISHI | M80B - |
| FANUC | OI MF PLUS - |
| SIEMENS | 828D - |
VMC MAchine
TURBO 400

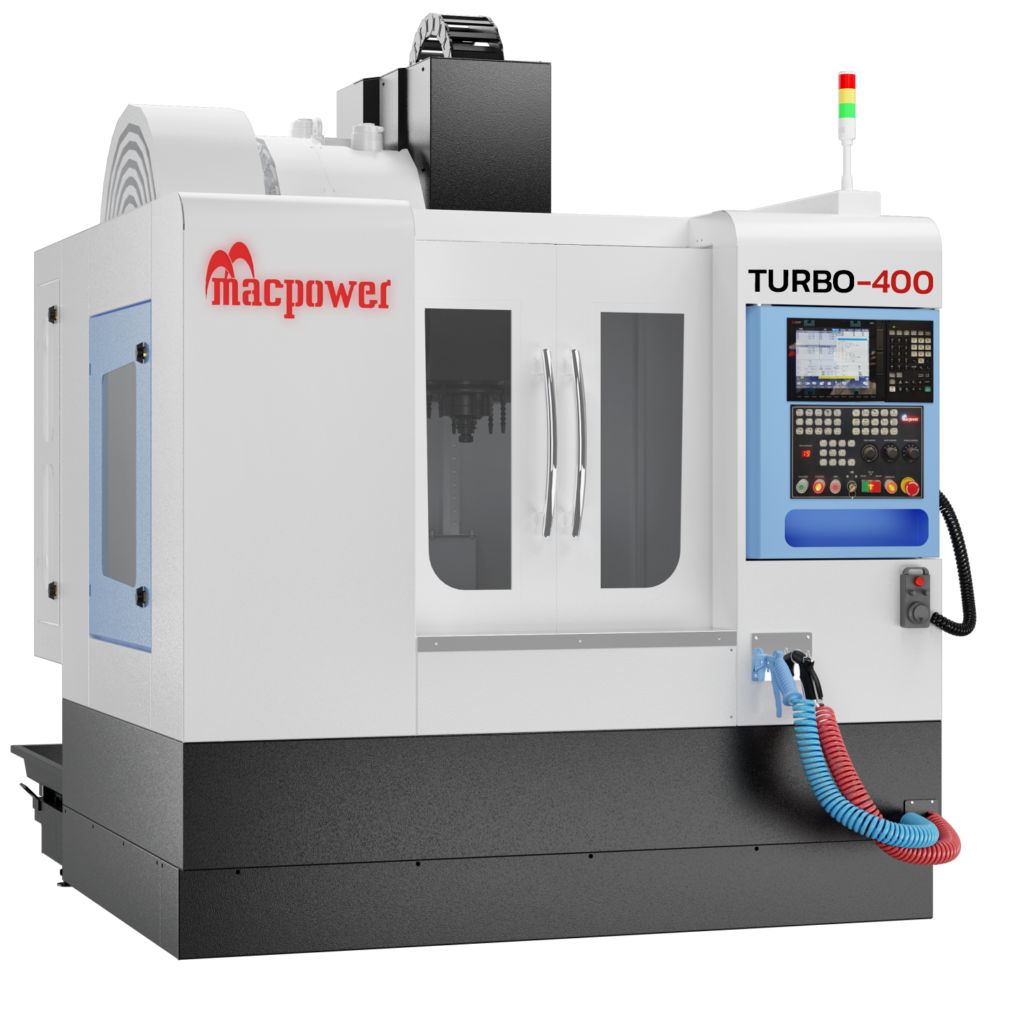

TURBO 400 is a compact, high-performance machining center engineered for precise, efficient and dependable production. With X, Y and Z travels of 400 mm, 350 mm and 400 mm, it is designed for accurate machining across a wide range of industrial components.
The machine features a 630 × 300 mm table with a maximum safe load of 300 kg, providing a stable platform for consistent machining. Its compact configuration makes it suitable for productive shop-floor applications where space efficiency and machining reliability are equally important.
Equipped with a BT40 spindle, spindle speeds from 80 to 8000 RPM and cutting feed rates up to 10,000 mm/min, the TURBO 400 supports fast, precise machining. A 20-tool arm-type automatic tool changer further improves productivity and operational efficiency.
