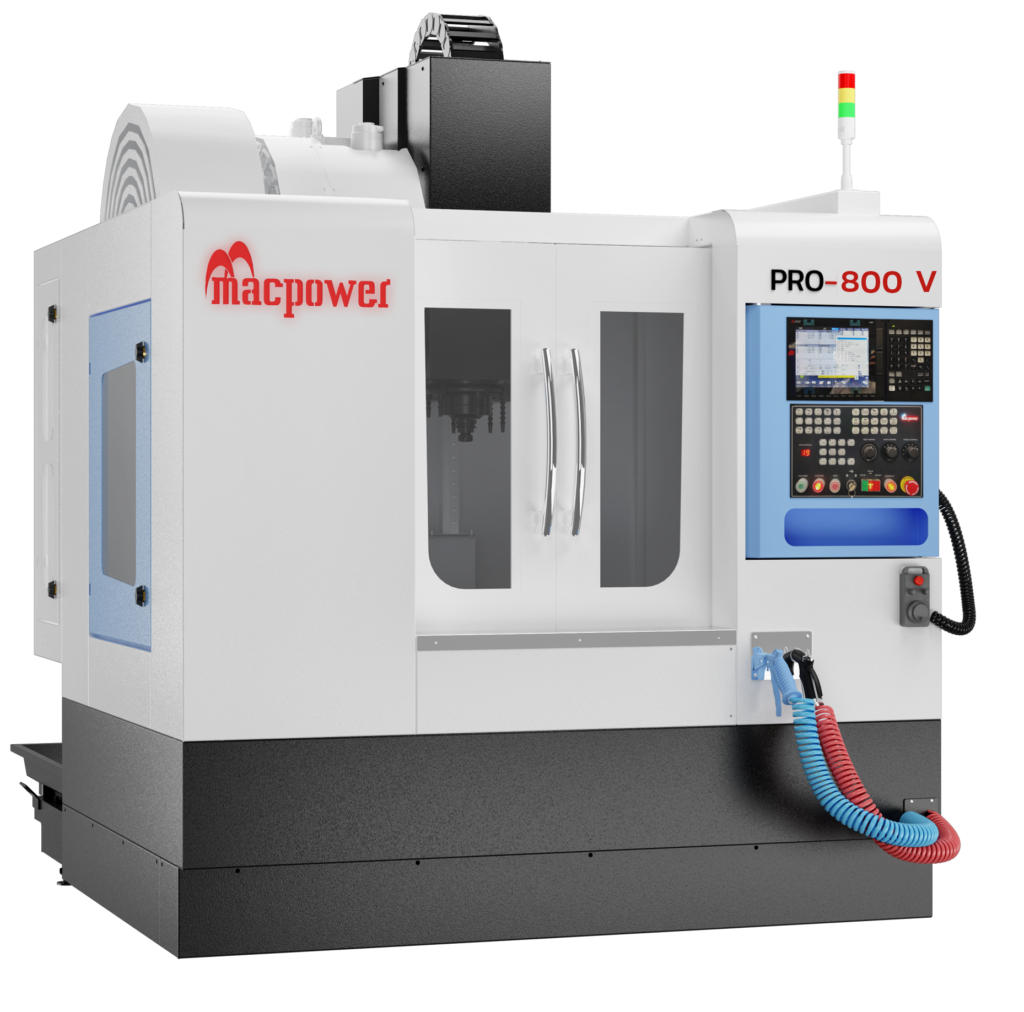

VMC Machine
Pro 800v
High-performance VMC engineered for precise, stable machining with 800 × 500 × 500 mm axis travel, a 1000 × 500 mm table and a BT40 spindle platform.
VMC Machine
Pro 800 v
| TABLE SIZE | 1000x500 MM |
|---|---|
| AXIS STROKE (X / Y / Z) | 800 / 500 / 500 MM |
| RAPID X/Y/Z AXIS | 24 / 24 / 24 M/MIN |
| LOAD CAPACITY | 500 KG |
| SPINDLE | BT 40 - |
| RATED POWER | 7.5 / 11 KW |
| WEIGHT (APPROX) | 4600 KG |
| DIMENSIONS (APPROX) (WXDXH) | 2602x2842x2878 MM |
VMC Machine
Pro 800 v
PRO 800 V is a precision-focused Vertical Machining Center developed for stable, efficient and productive machining. With X, Y and Z travels of 800 mm, 500 mm and 500 mm, it offers a larger machining envelope for demanding industrial components and production requirements.
The machine features a 1000 × 500 mm table with a maximum safe load of 500 kg, providing a rigid, dependable platform for larger workpieces. Its roller guideways, servo-driven axes and robust configuration support smooth, controlled and repeatable machining performance.
Equipped with a BT40 spindle, spindle speeds from 80 to 8000 RPM and cutting feed rates up to 10,000 mm/min, the PRO 800 V delivers strong, efficient machining performance. A 20-tool twin-arm automatic tool changer with random tool selection further improves cycle speed and production efficiency.
