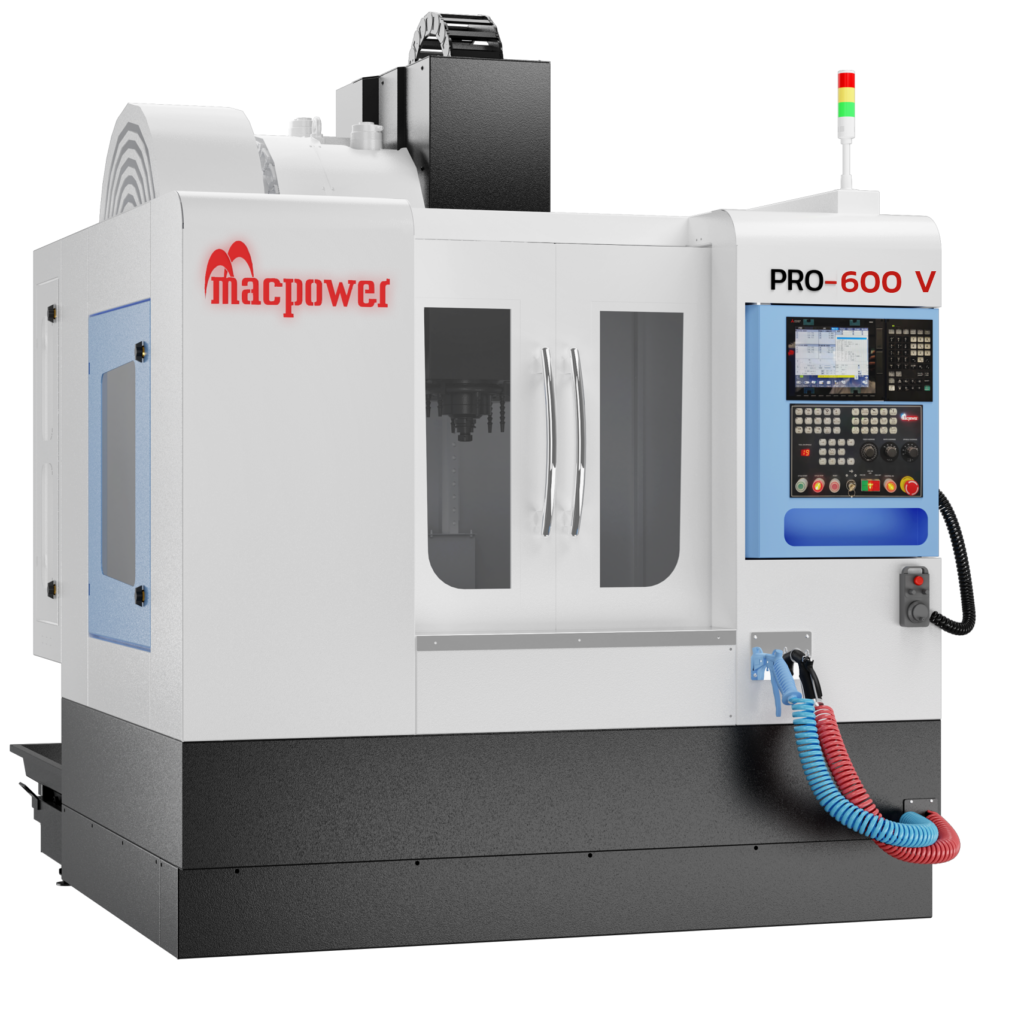

VMC Machine
PRO 600 V
Precision VMC engineered for stable, efficient machining with 600 × 450 × 500 mm axis travel, a 750 × 400 mm table and a BT40 spindle platform.
VMC MAchine
Pro 600 V
| TABLE SIZE | 750x400 MM |
|---|---|
| AXIS STROKE (X / Y / Z) | 600 / 450 / 500 MM |
| RAPID X/Y/Z AXIS | 24 / 24 / 24 M/MIN |
| LOAD CAPACITY | 400 KG |
| SPINDLE | BT 40 - |
| SPINDLE POWER (FANUC) | 5.5 / 7.5 KW |
| WEIGHT (APPROX) | 3100 KG |
| DIMENSIONS (APPROX) (WXDXH) | 2120x2690x2615 MM |
VMC MAchine
Pro 600 V
PRO 600 V is a precision-focused Vertical Machining Center developed for stable, efficient and productive machining. With X, Y and Z travels of 600 mm, 450 mm and 500 mm, it provides an extended machining range for a wide variety of industrial applications.
The machine features a 750 × 400 mm table with a maximum safe load of 400 kg, providing a rigid, reliable platform for consistent machining. Its servo-driven configuration and roller guideways support smooth, controlled performance across demanding production cycles.
Equipped with a BT40 spindle, spindle speeds from 80 to 8000 RPM and cutting feed rates up to 10,000 mm/min, the PRO 600 V delivers fast, dependable machining performance. A 20-tool arm-type automatic tool changer with random bi-directional selection further improves cycle efficiency.
