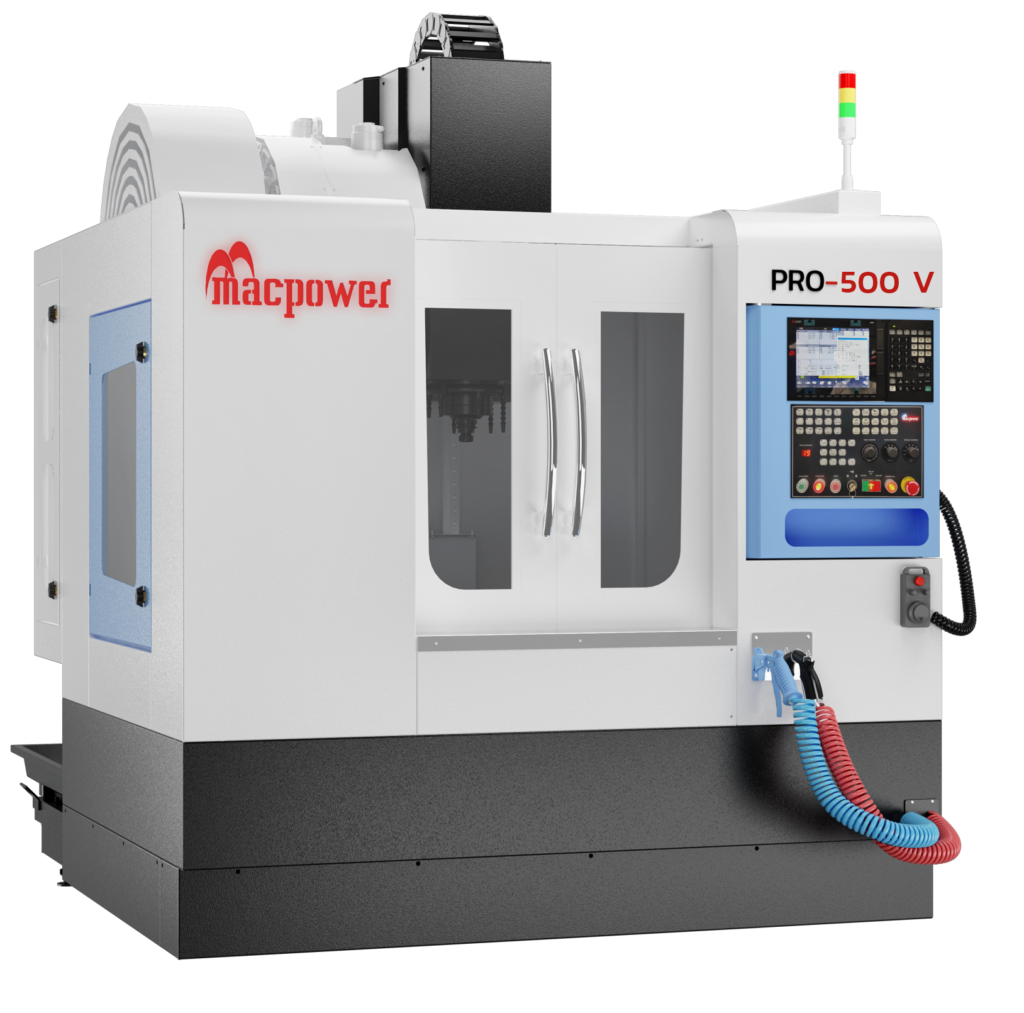

VMC Machine
PRO 500 V
Precision VMC engineered for stable, efficient machining with 500 × 450 × 400 mm axis travel, a 650 × 400 mm table and a BT40 spindle platform.
VMC MAchine
Pro 500 V
| TABLE SIZE | 650x400 MM |
|---|---|
| AXIS STROKE (X / Y / Z) | 500 / 450 / 400 MM |
| RAPID X/Y/Z AXIS | 24 / 24 / 24 M/MIN |
| LOAD CAPACITY | 350 KG |
| SPINDLE | BT 40 - |
| RATED POWER | 5.5 / 7.5 KW |
| WEIGHT (APPROX) | 2800 KG |
| DIMENSIONS (APPROX) (WXDXH) | 1750x2620x2520 MM |
VMC MAchine
Pro 500 V
PRO 500 V is a precision-focused Vertical Machining Center developed for stable, efficient and productive machining. With X, Y and Z travels of 500 mm, 450 mm and 400 mm, it offers a versatile machining range for a wide variety of industrial applications.
The machine features a 650 × 400 mm table with a maximum safe load of 350 kg, providing a rigid, reliable platform for consistent machining. Its servo-driven configuration and compact, practical layout support efficient shop-floor productivity.
Equipped with a BT40 spindle, spindle speeds from 80 to 8000 RPM and cutting feed rates up to 10,000 mm/min, the PRO 500 V delivers fast, dependable machining performance. A 20-tool arm-type automatic tool changer with random bi-directional selection further improves cycle efficiency.
