VMC Machine
PRO 400 V
Precision VMC engineered for efficient, stable machining with 400 × 350 × 400 mm axis travel, a 630 × 300 mm table and a BT40 spindle platform.
VMC MAchine
Pro 400 V
| TABLE SIZE | 630x300 MM |
|---|---|
| AXIS STROKE (X / Y / Z) | 400 / 350 / 400 MM |
| RAPID X/Y/Z AXIS | 24 / 24 / 24 M/MIN |
| LOAD CAPACITY | 300 KG |
| SPINDLE | BT 40 - |
| RATED POWER | 5.5 / 7.5 KW |
| WEIGHT (APPROX) | 2000 KG |
| DIMENSIONS (APPROX) (WXDXH) | 1650x2618x2450 MM |
VMC MAchine
Pro 400 V

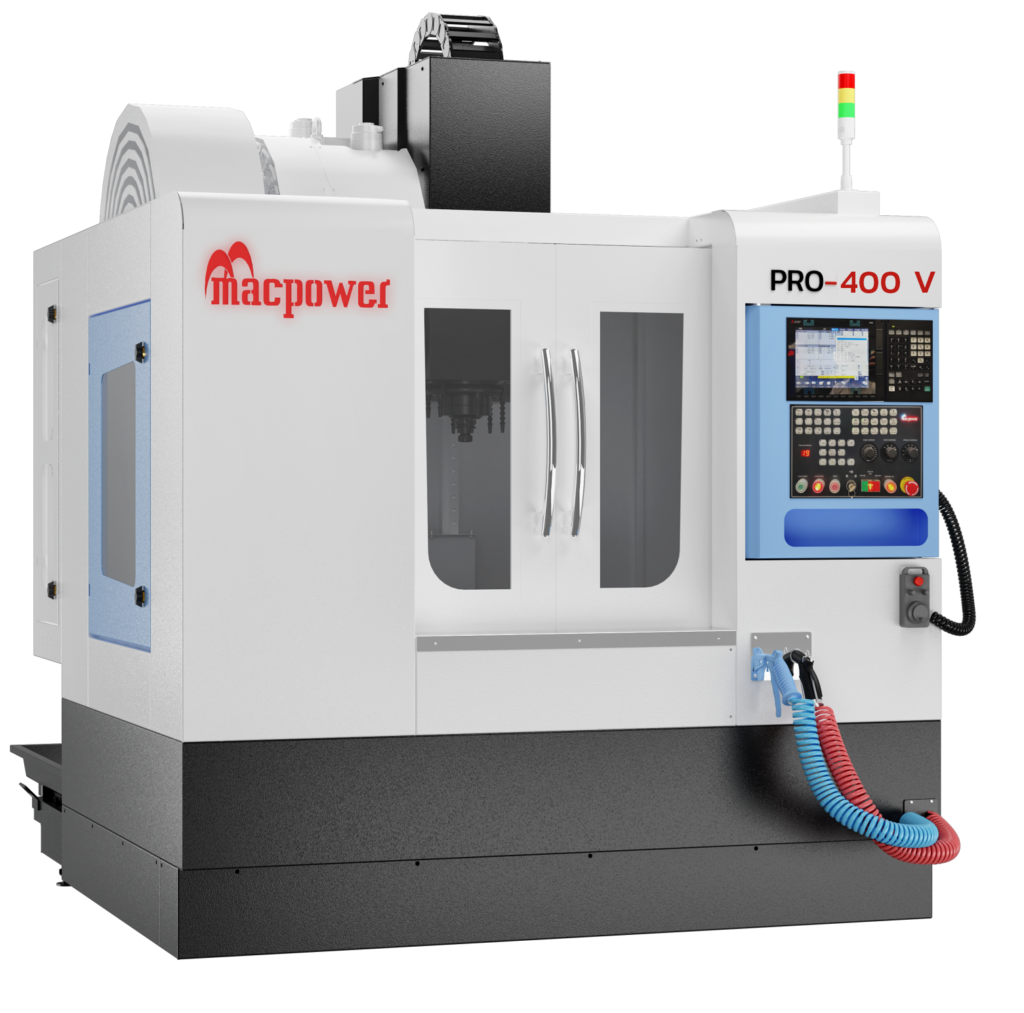

PRO 400 V is a precision-focused Vertical Machining Center developed for stable, efficient and productive machining. With X, Y and Z travels of 400 mm, 350 mm and 400 mm, it offers a compact machining range suited to a variety of industrial applications.
The machine features a 630 × 300 mm table with a maximum safe load of 300 kg, along with roller guideways and servo-driven axes for smooth, controlled machining performance. Its compact configuration supports efficient shop-floor productivity.
Equipped with a BT40 spindle, spindle speeds from 80 to 8000 RPM and cutting feed rates up to 10,000 mm/min, the PRO 400 V delivers reliable machining performance. A 20-tool arm-type automatic tool changer with random bi-directional selection further improves cycle efficiency.
