Turning Center
MONO 2000
Extended-reach CNC turning performance engineered for precise, stable machining of long and demanding components.
Turning Center
MONO 2000
| SWING OVER CARRIAGE | 250 MM |
|---|---|
| MAX. TURNING DIA | 350 MM |
| MAX. TURNING LENGTH | 2000 MM |
| TRAVEL (X / Z) | 185 / 2000 MM |
| RAPID FEED (X / Z) | 20 M/MIN |
| CHUCK SIZE | 200 X 3 MM |
| SPINDLE POWER (FANUC) | 11 / 15 KW |
| SPINDLE BORE | 63 MM |
| SPINDLE NOSE | A2 - 6 |
| WEIGHT (APPROX) | KG |
Turning Center
MONO 2000

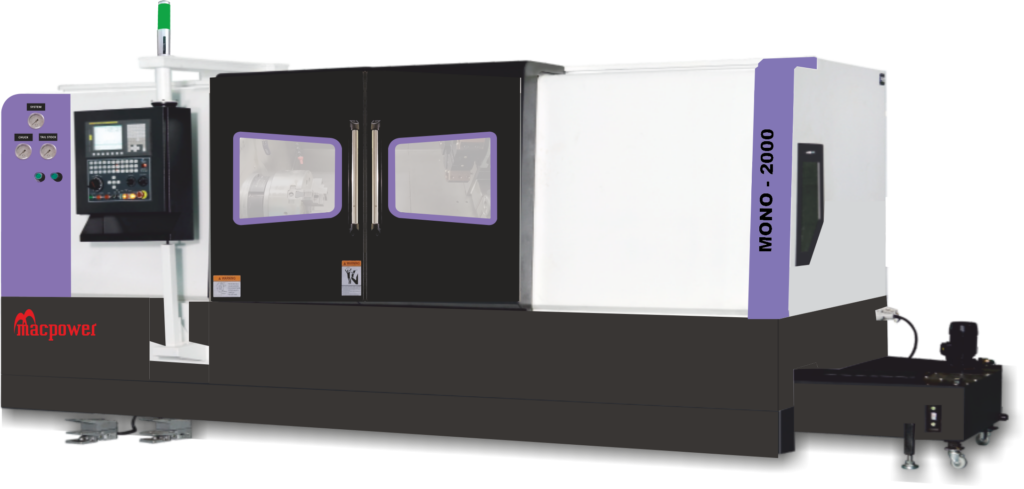

The MONO 2000 is a robust CNC turning machine engineered for precise, dependable machining of significantly longer components. Its extended turning capacity provides a strong, production-ready platform for demanding industrial applications.
It offers a 500 mm swing over bed, 350 mm swing over carriage, 350 mm maximum turning diameter, 2000 mm maximum turning length, and 2045 mm distance between centers, providing an extensive machining range for long workpieces.
For consistent turning performance, the MONO 2000 features an A2-6 spindle, 63 mm spindle bore, 51 mm maximum bar capacity, 200 mm 3-jaw chuck, and 50–3500 RPM speed range. An 8-station turret with 25 × 25 mm tooling and 40 mm maximum boring bar capacity supports flexible, efficient machining operations.
