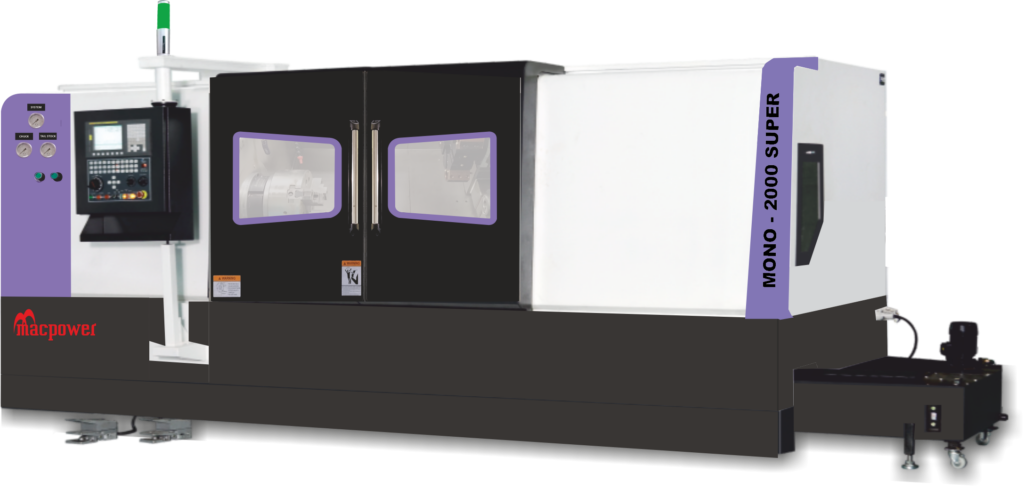

Turning Center
MONO 2000 SUPER
Extended-reach, heavy-duty CNC turning performance engineered for precise, stable machining with enhanced spindle capacity.
Turning Center
MONO 2000 SUPER
| SWING OVER CARRIAGE | 250 MM |
|---|---|
| MAX. TURNING DIA | 350 MM |
| MAX. TURNING LENGTH | 2000 MM |
| TRAVEL (X / Z) | 185 / 2000 MM |
| RAPID FEED (X / Z) | 20 M/MIN |
| CHUCK SIZE | 250 X 3 MM |
| SPINDLE POWER (FANUC) | 11 / 15 (P) KW |
| SPINDLE BORE | 90 MM |
| SPINDLE NOSE | A2 - 8 |
| WEIGHT (APPROX) | KG |
Turning Center
MONO 2000 SUPER
The MONO 2000 SUPER is a heavy-duty CNC turning machine engineered for precise, dependable machining of larger and longer components. Its extended machining capability and upgraded spindle configuration make it suitable for demanding industrial turning applications.
It provides a 500 mm swing over bed, 350 mm swing over carriage, and 350 mm maximum turning diameter. The brochure’s specification table lists a 1500 mm maximum turning length and 1545 mm distance between centers.
For powerful turning performance, the MONO 2000 SUPER features an A2-8 spindle, 90 mm spindle bore, 75 mm maximum bar capacity, 250 mm 3-jaw chuck, and 50–2500 RPM speed range. An 8-station turret with 25 × 25 mm tooling and 40 mm maximum boring bar capacity supports flexible, production-ready machining.
